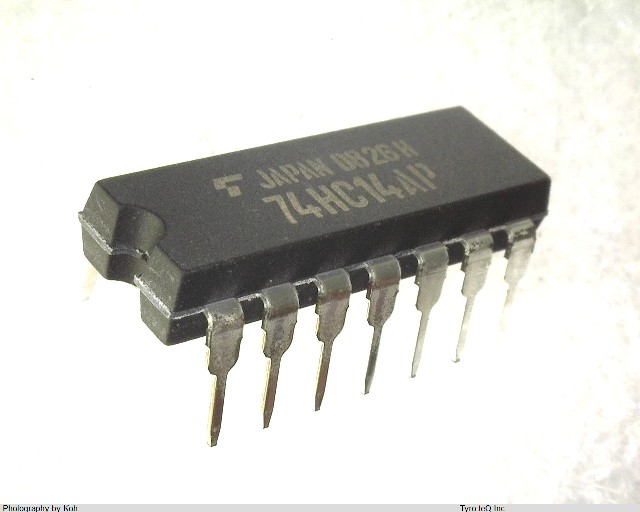

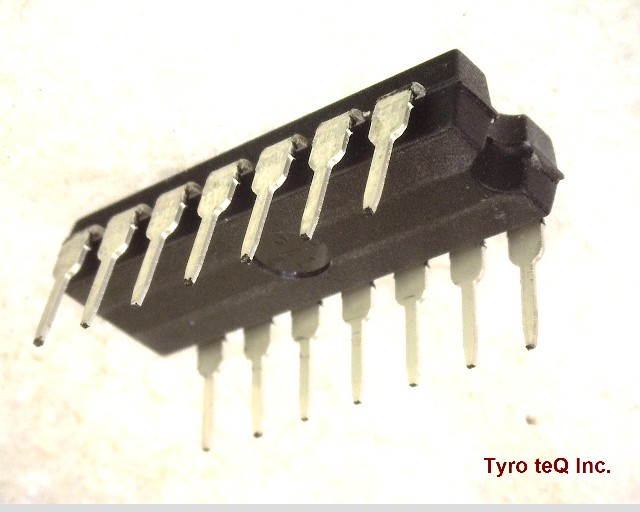

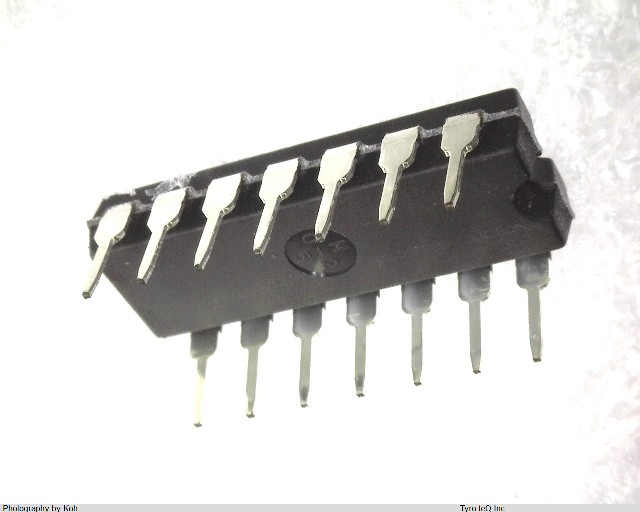

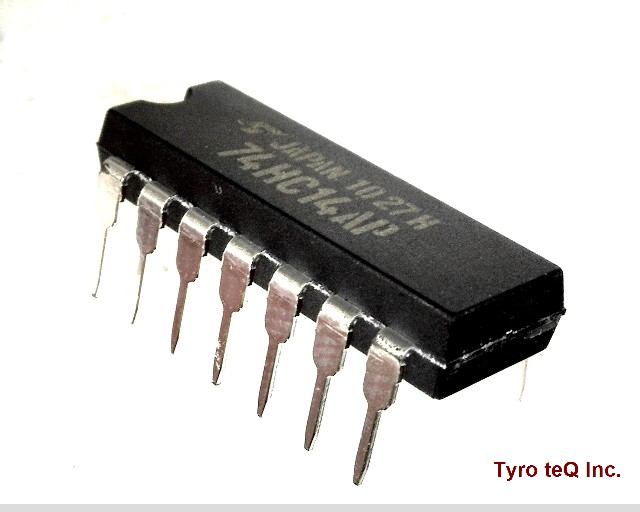

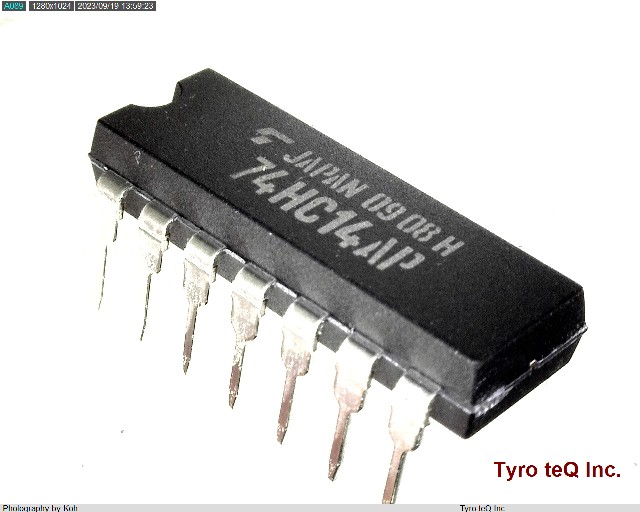

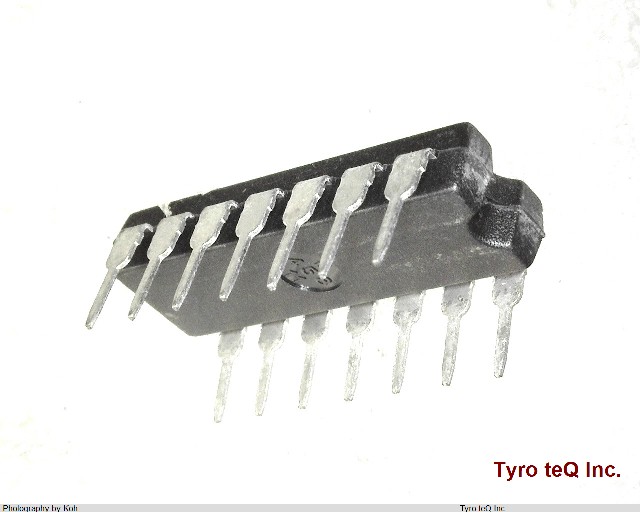

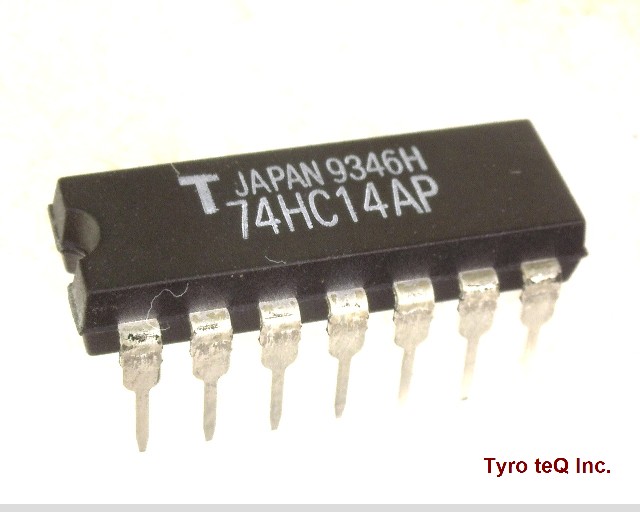

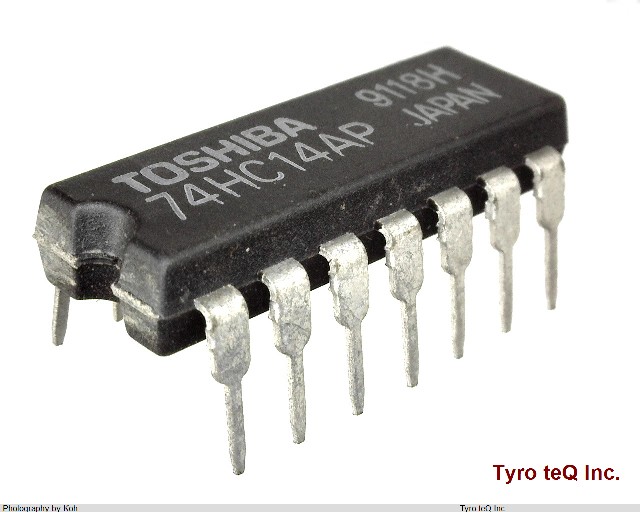

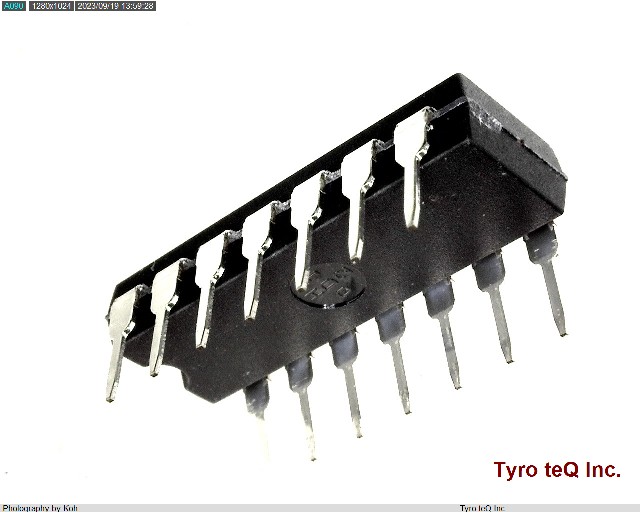

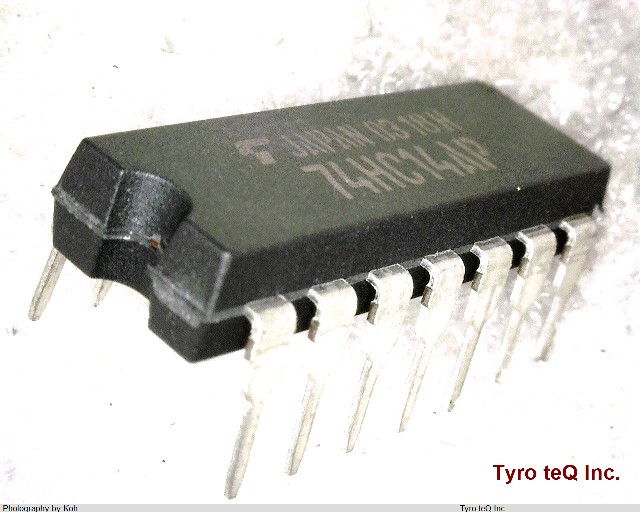

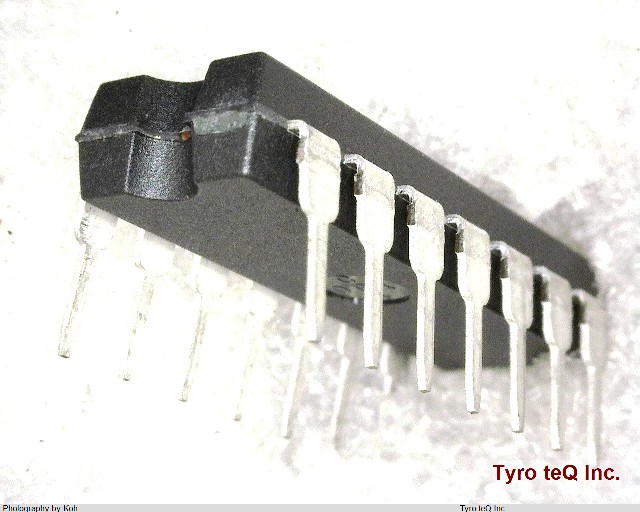

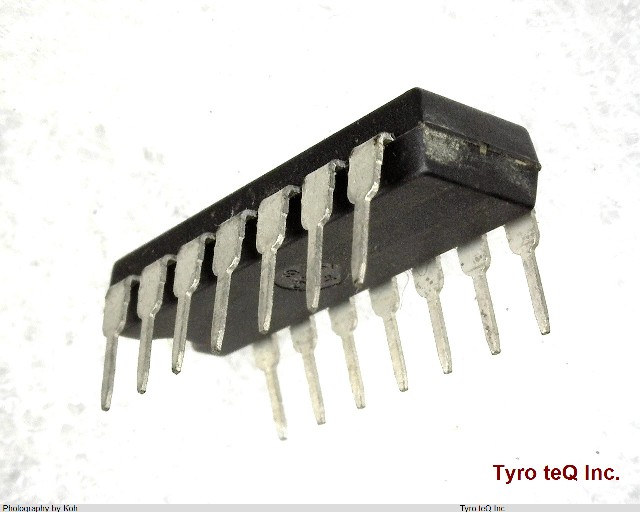

TC74HC14AP データシート

Name: TC74HC14AP
Brand: TOSHIBA
SKU: 300000299-0000-0000-0000

TC74HC14AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC14AP の詳細情報

型番	TC74HC14AP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	4
JESD-30 Code	R-PDIP-T14
Length	19.25 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.004 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	31 ns
Propagation Delay (tpd)	155 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	4.45 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	7.62 mm
tpd_tpz (Typ.)(nsec)	11
グループ	TC74HC
ピン数	14
回路数	6
機能1	Gate
機能2	Schmitt Inverter
面実装区分	N
