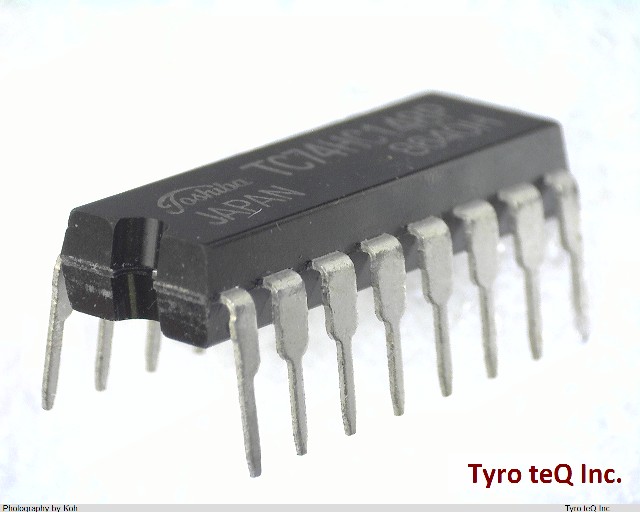

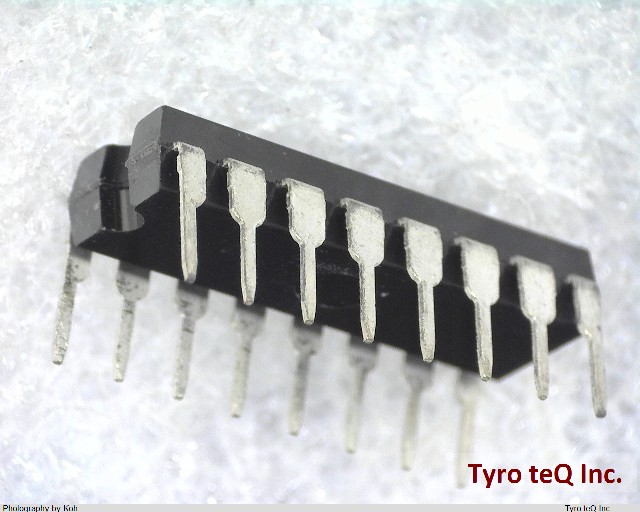

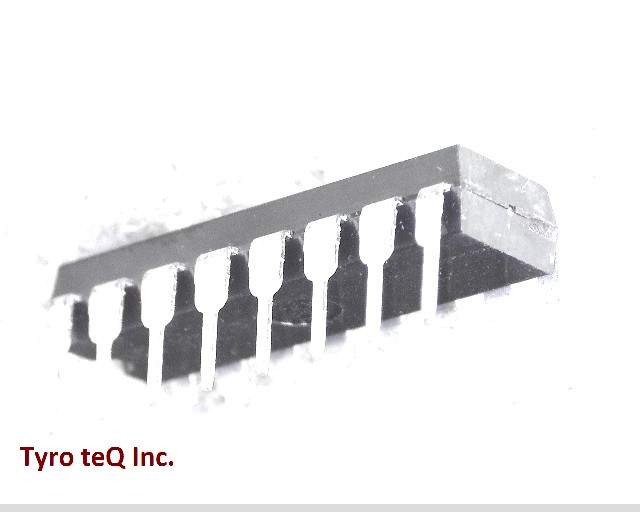

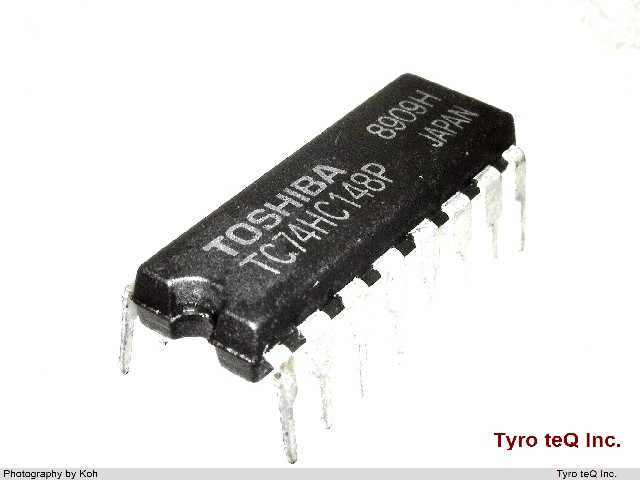

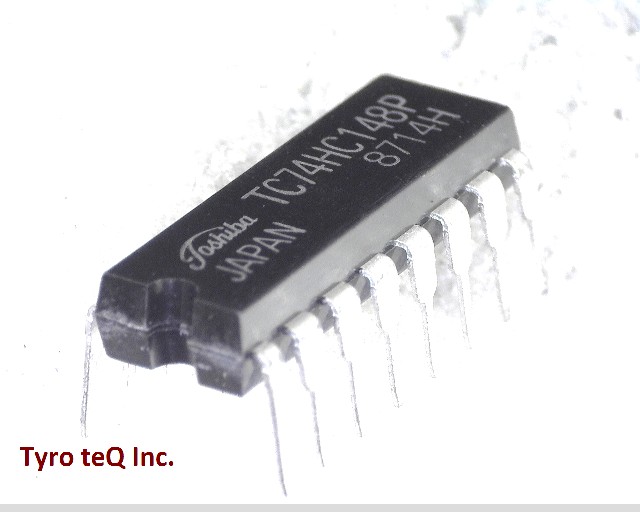

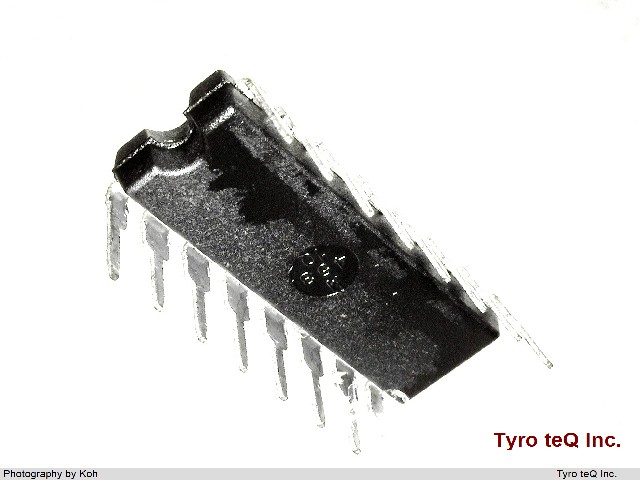

TC74HC148P データシート

Name: TC74HC148P
Brand: TOSHIBA
SKU: 300018594-0000-0000-0000

TC74HC148P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ

TC74HC148P の詳細情報

型番	TC74HC148P
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	8 TO 3 LINE PRIORITY ENCODER; WITH GROUP SELECT OUTPUT
Family	HC/UH
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Logic IC Type	ENCODER
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	205 ns
Qualification Status	Not Qualified
Seated Height-Max	5 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
