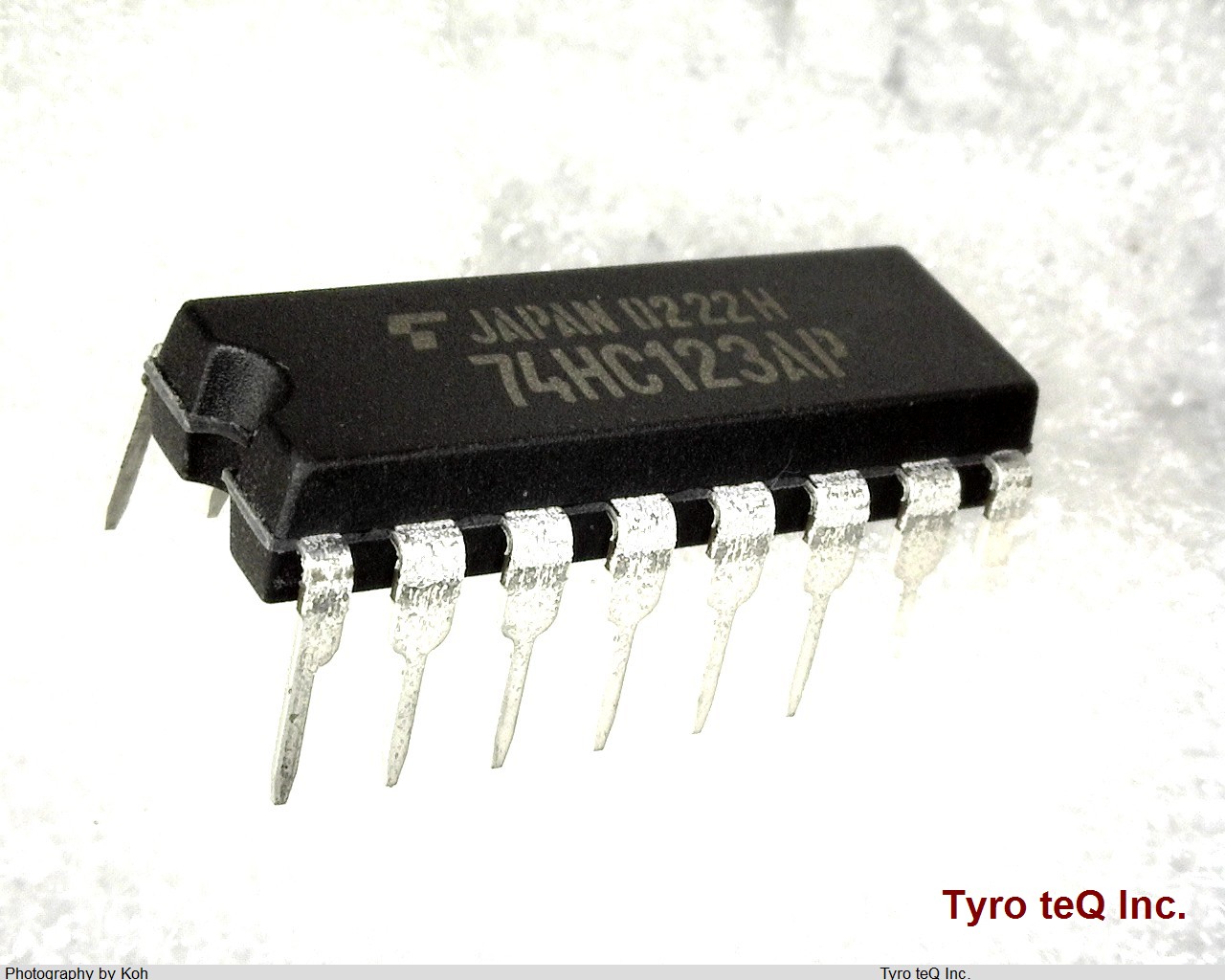

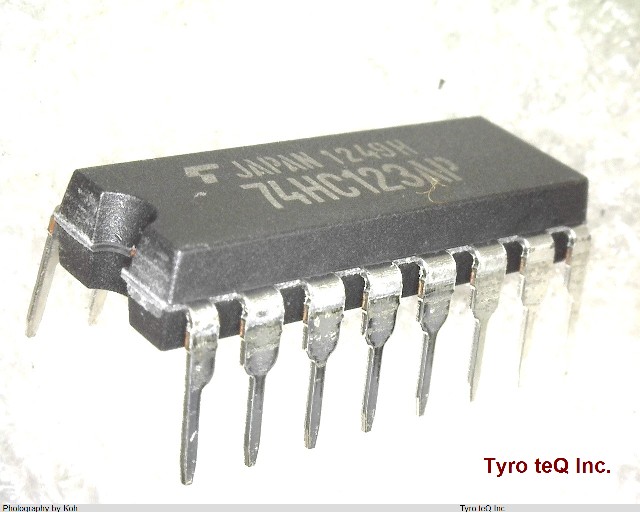

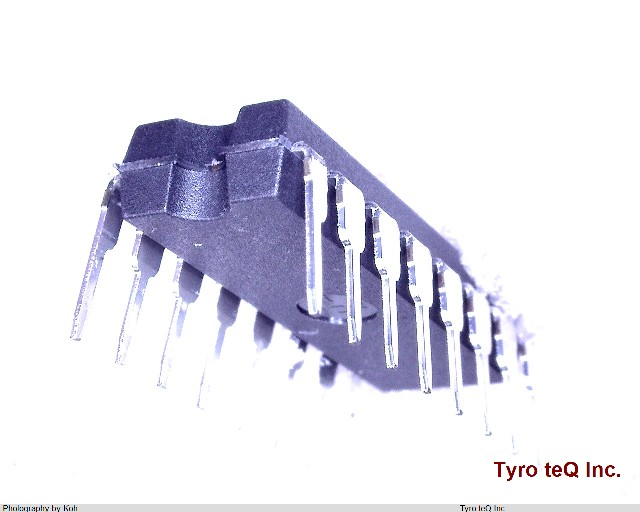

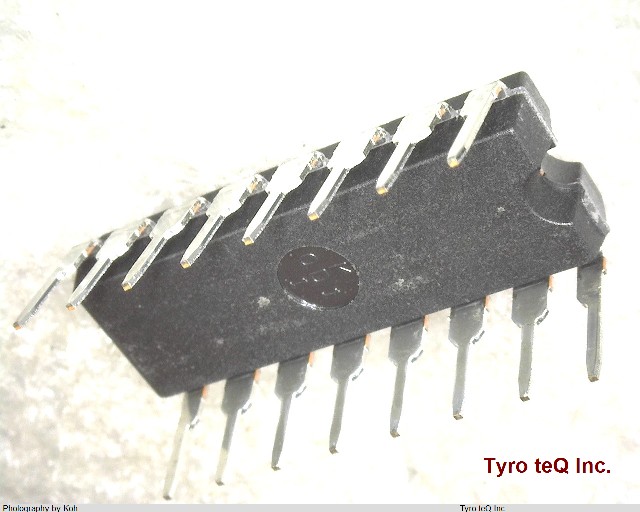

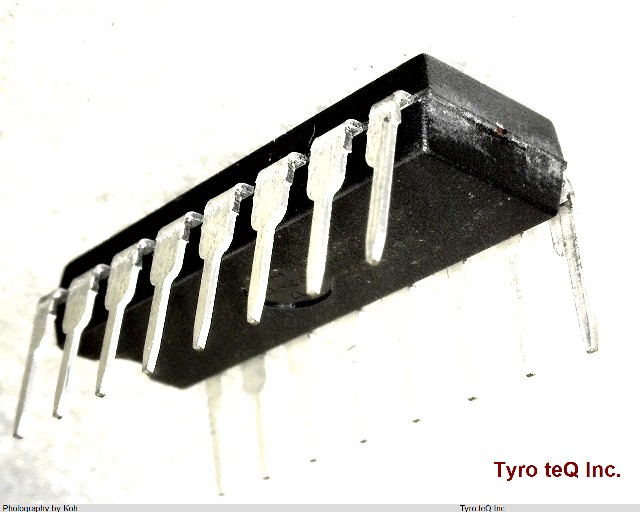

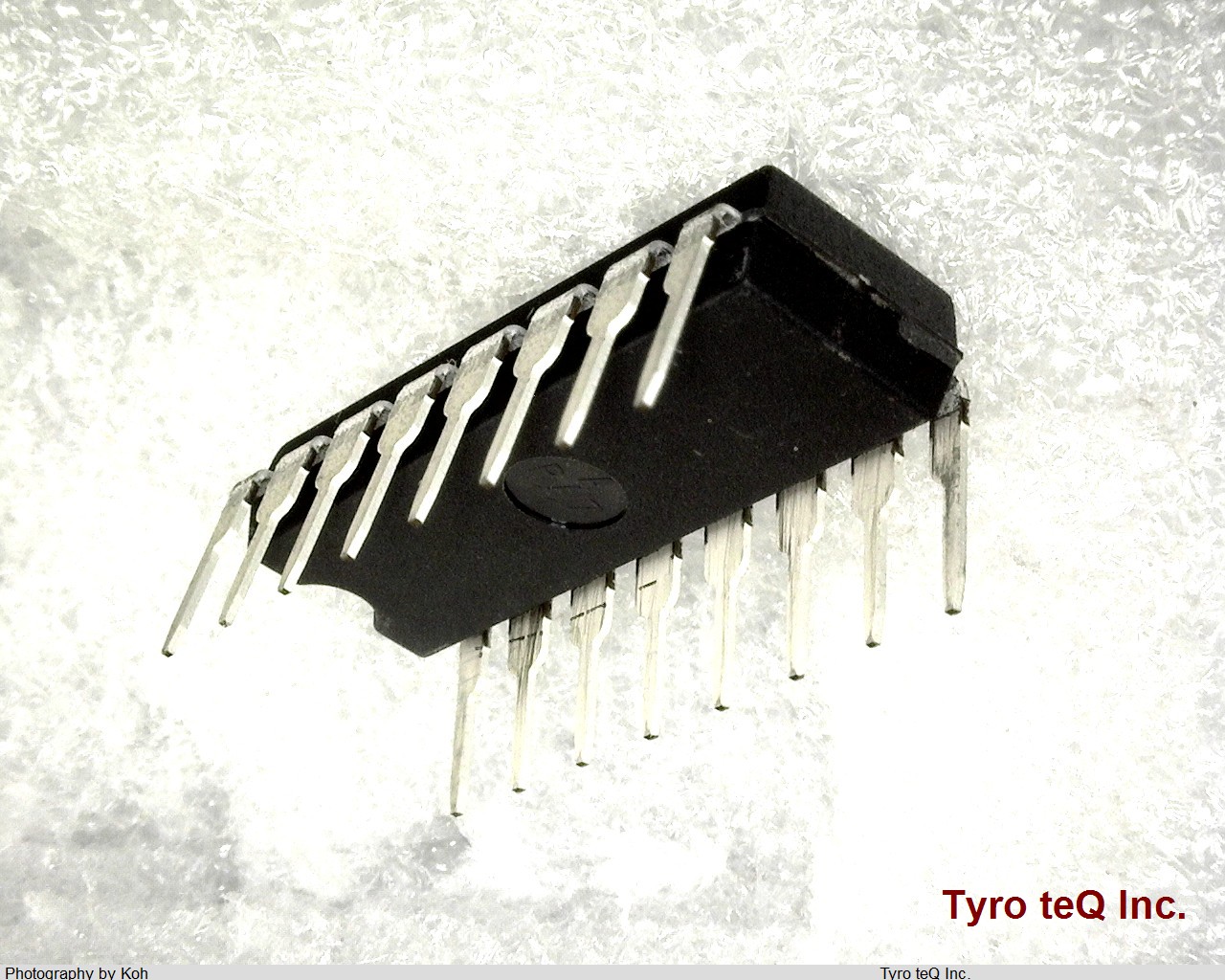

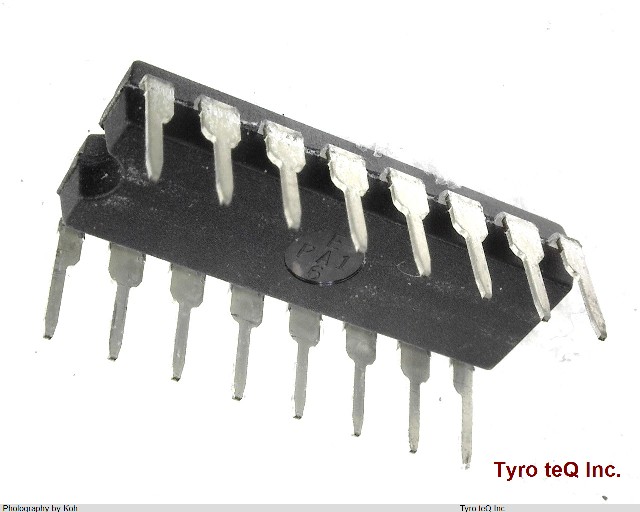

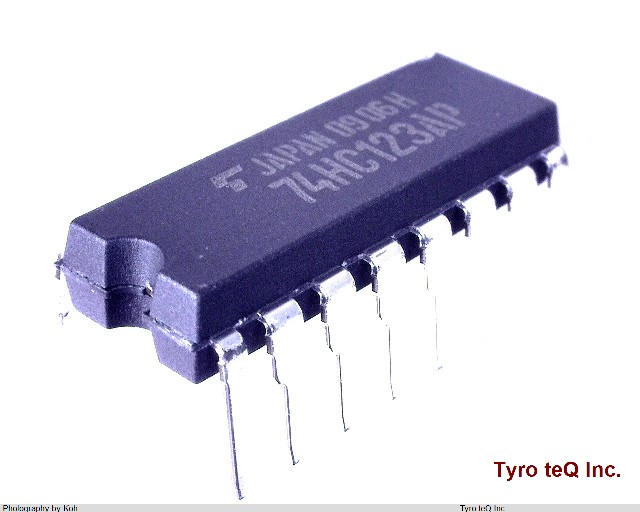

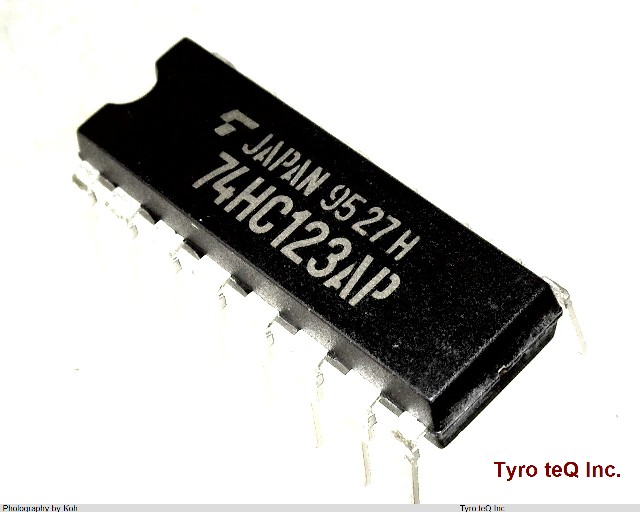

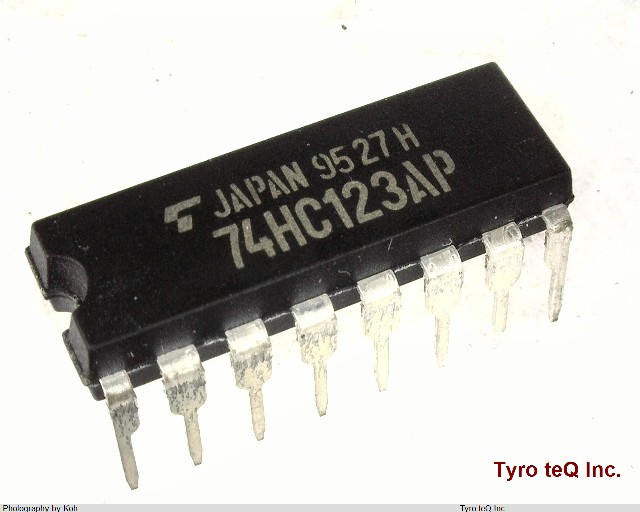

TC74HC123AP データシート

Name: TC74HC123AP
Brand: TOSHIBA
SKU: 300000293-0000-0000-0000

TC74HC123AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : DIP

TC74HC123AP の詳細情報

型番	TC74HC123AP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	4
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2/6 V
Propagation Delay (tpd)	265 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	7.62 mm
tpd_tpz (Typ.)(nsec)	25
グループ	TC74HC
ピン数	16
回路数	2
機能1	Multivibrator
機能2	Monostable Multivibrator
面実装区分	N
