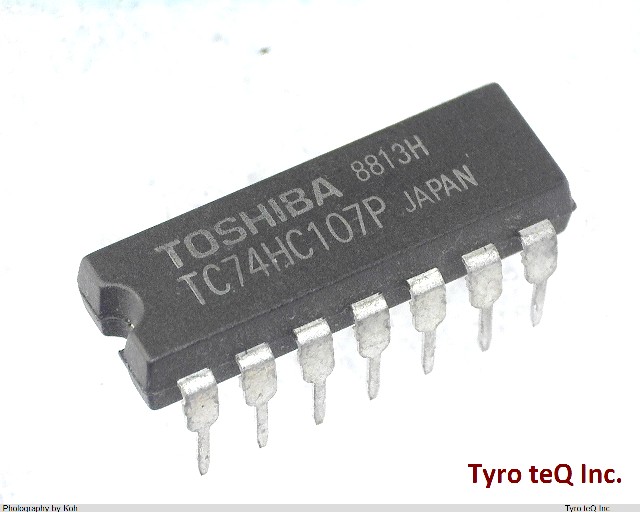

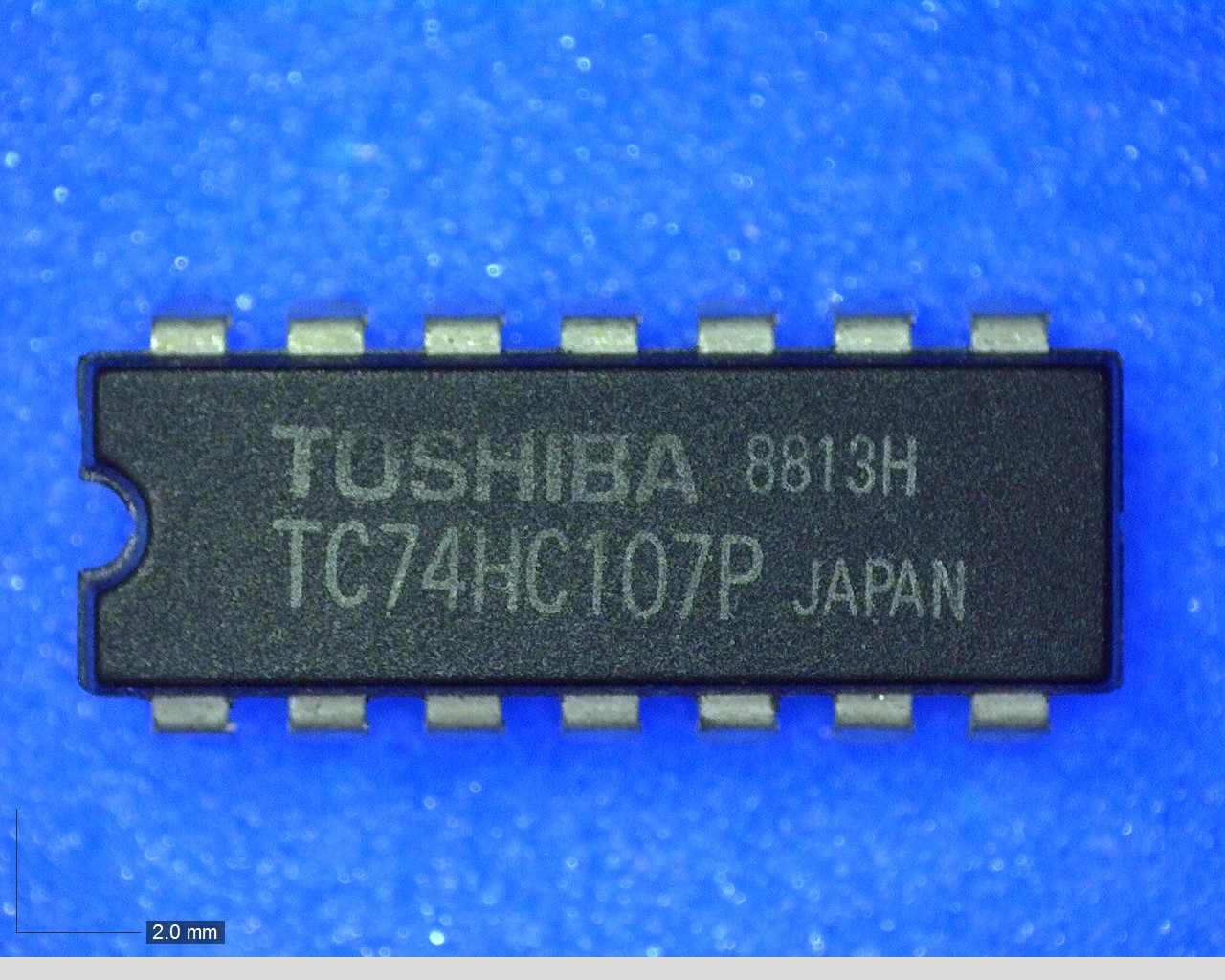

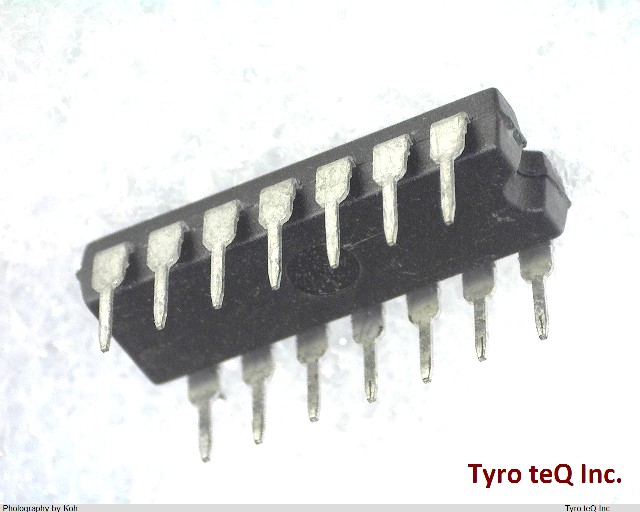

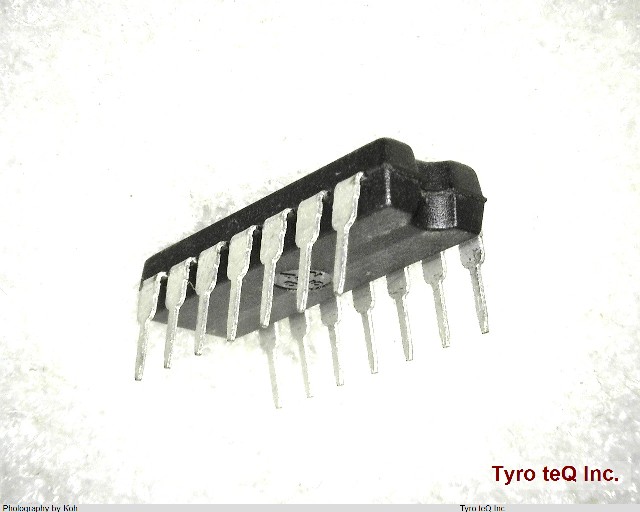

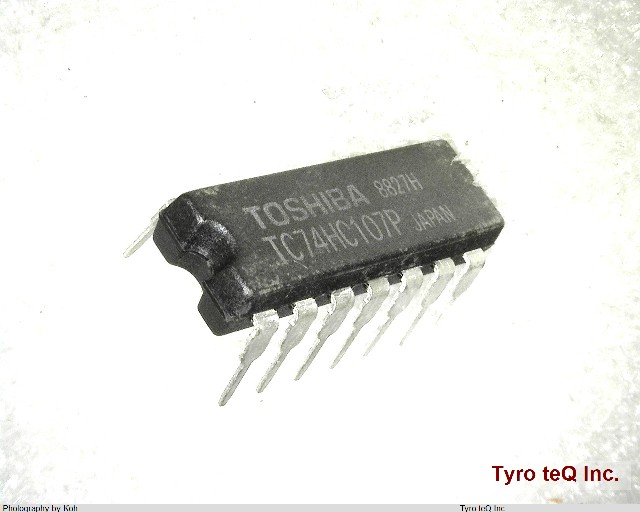

TC74HC107P データシート

Name: TC74HC107P
Brand: TOSHIBA
SKU: 300018542-0000-0000-0000

TC74HC107P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ

TC74HC107P の詳細情報

型番	TC74HC107P
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	HC/UH
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.43 mm
Load Capacitance (CL)	50 pF
Logic IC Type	J-K FLIP-FLOP
Max Frequency@Nom-Sup	24000000 Hz
Max I(ol)	0.004 Amp
Number of Bits	2
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Propagation Delay (tpd)	205 ns
Qualification Status	Not Qualified
Seated Height-Max	5 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
Width	7.62 mm
fmax-Min	56 MHz
