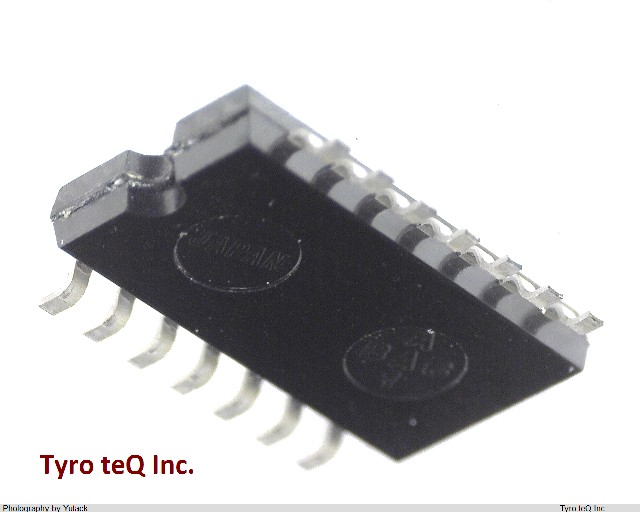

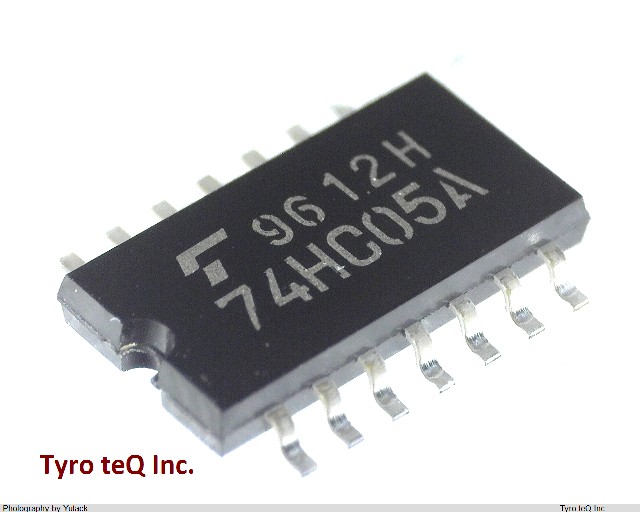

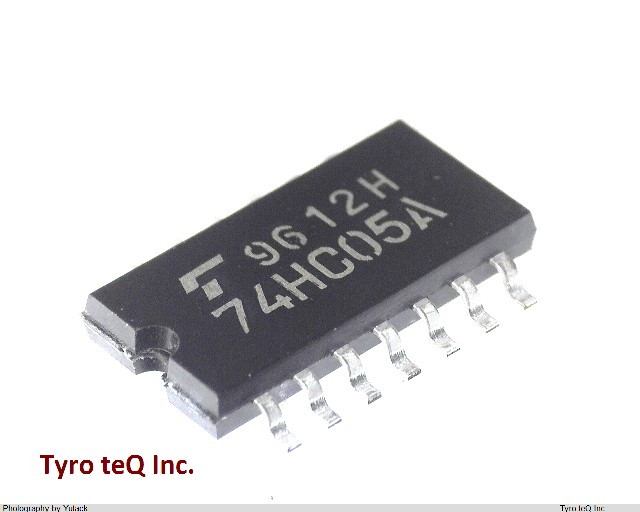

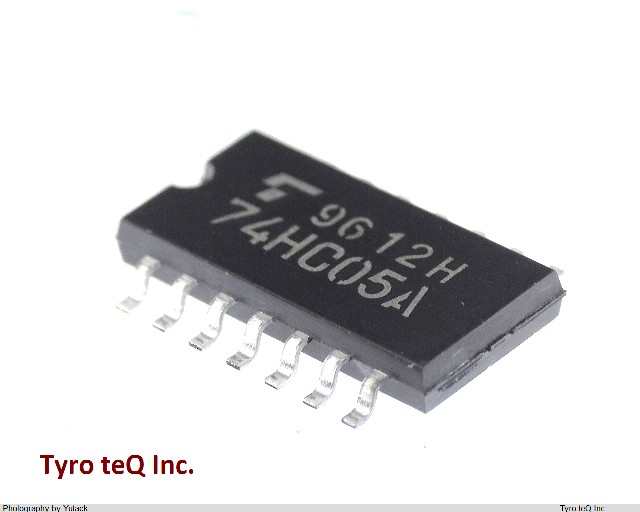

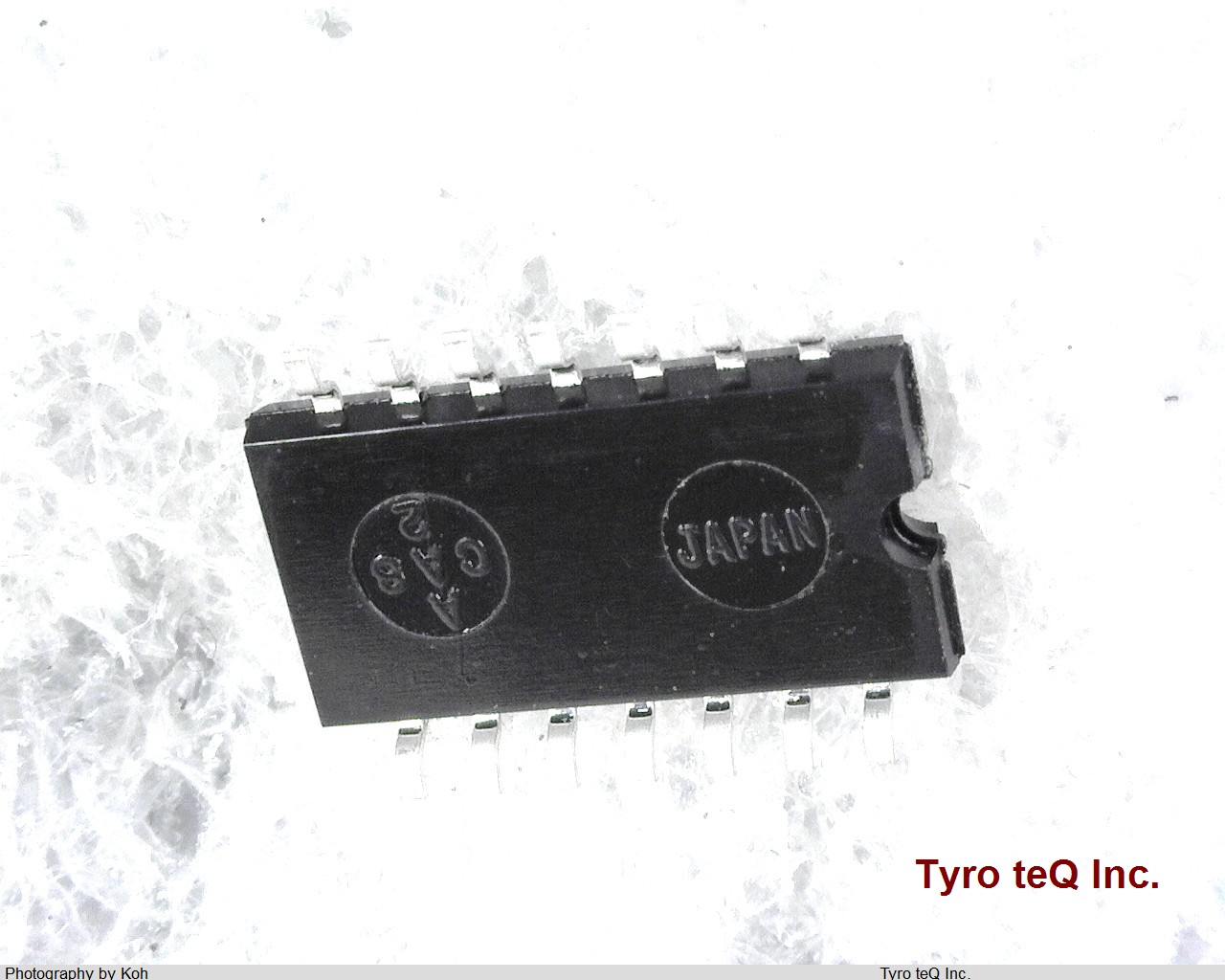

TC74HC05AF データシート

Name: TC74HC05AF
Brand: TOSHIBA
SKU: 300007953-0000-0000-0000

TC74HC05AF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74HCシリーズ|パッケージ : SOP

TC74HC05AF の詳細情報

型番	TC74HC05AF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	HC/UH
IBIS	IBIS
IO (Min)(mA)	4
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	10.3 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.0052 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-DRAIN
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	2/6 V
Prop. Delay@Nom-Sup	23 ns
Propagation Delay (tpd)	23 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.9 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	6
VCC (Min)(V)	2
Width	5.3 mm
tpd_tpz (Typ.)(nsec)	8
グループ	TC74HC
ピン数	14
回路数	6
機能1	Gate
機能2	Inverter (Open Drain)
面実装区分	Y
