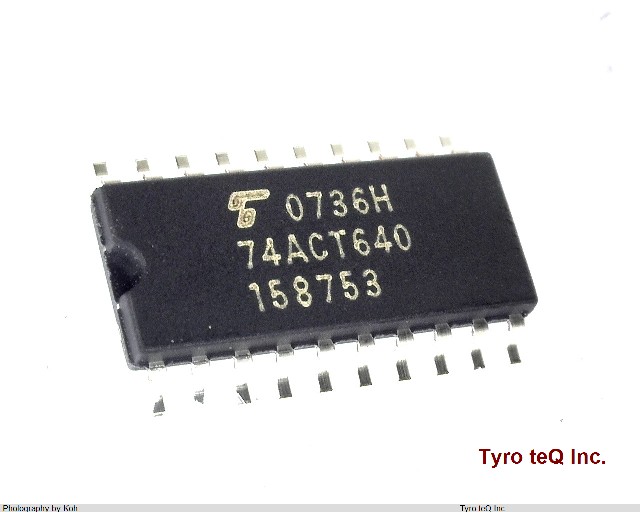

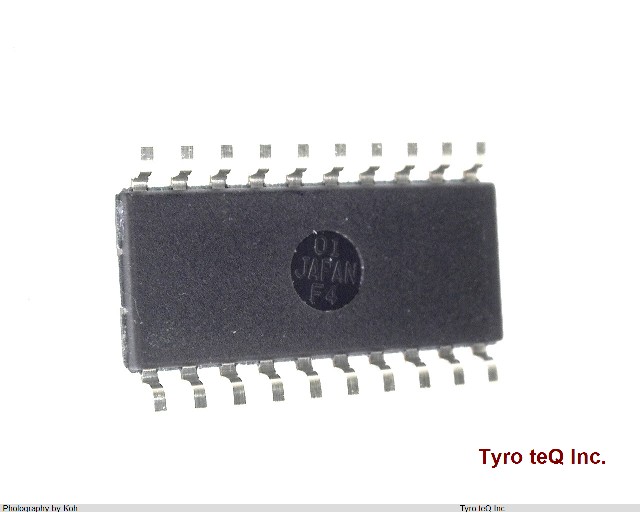

TC74ACT640F データシート

Name: TC74ACT640F
Brand: TOSHIBA
SKU: 300018472-0000-0000-0000

TC74ACT640F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74ACシリーズ|パッケージ : SOP

TC74ACT640F の詳細情報

型番	TC74ACT640F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	ACT
IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	6.5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Prop. Delay@Nom-Sup	9.5 ns
Propagation Delay (tpd)	9.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
VCC (Max)(V)	5.5
VCC (Min)(V)	4.5
Width	4.4 mm
tpd_tpz (Typ.)(nsec)	4.7
グループ	TC74ACT
ピン数	20
回路数	8
機能1	Gate
機能2	Bus Transceiver
面実装区分	Y
