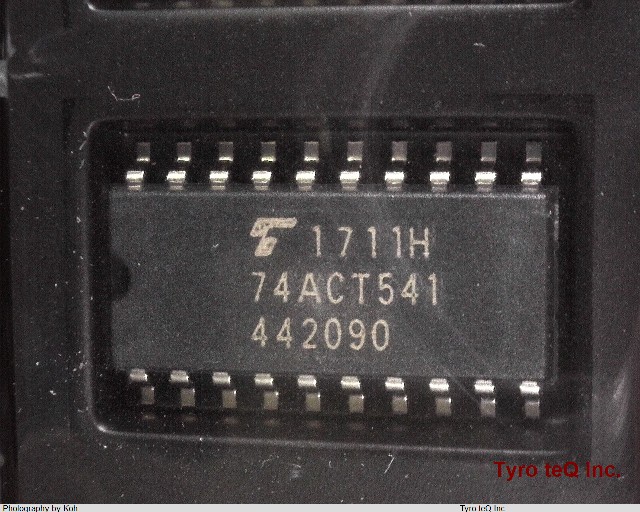

TC74ACT541F(EL,F)

Name: TC74ACT541F(EL,F)
Brand: TOSHIBA
SKU: 400095422-0000-0000-0000

TC74ACT541F(EL,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC74ACT541F(EL,F) の詳細情報

型番	TC74ACT541F(EL,F)
メーカー	TOSHIBA
種別	CMOSロジックIC
Additional Feature	WITH DUAL OUTPUT ENABLE
Control Type	ENABLE LOW
Count Direction	UNIDIRECTIONAL
Family	ACT
JESD-30 Code	R-PDSO-G20
Length	12.8 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	24 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Propagation Delay (tpd)	9.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	5.3 mm
