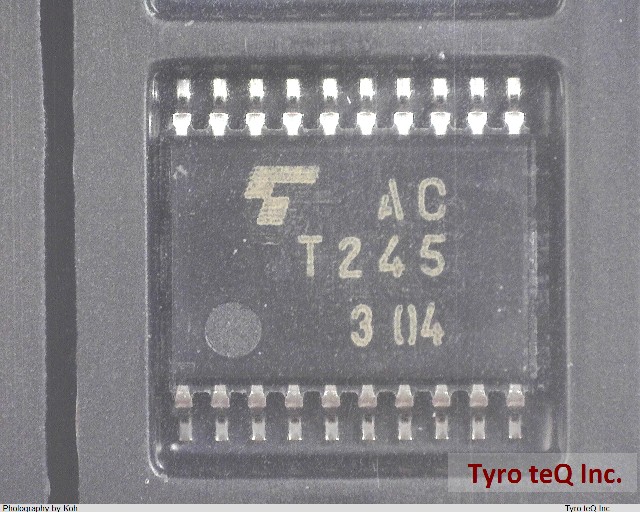

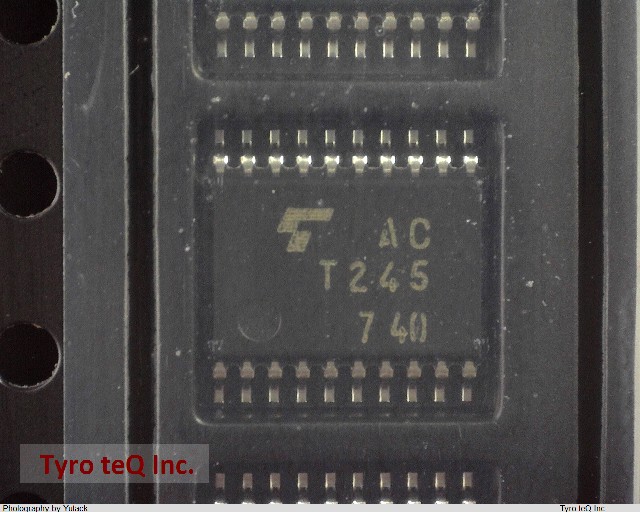

TC74ACT245FT(EL)

Name: TC74ACT245FT(EL)
Brand: TOSHIBA
SKU: 300286509-0000-0000-0000

TC74ACT245FT(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

EL:エンボスリール左巻|CMOSロジックIC | 74ACシリーズ|パッケージ : TSSOP

TC74ACT245FT(EL) の詳細情報

型番	TC74ACT245FT(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
JESD-30 Code	R-PDSO-G20
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	5 V
Prop. Delay@Nom-Sup	9 ns
Qualification Status	Not Qualified
Sub Category	Bus Driver/Transceivers
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
