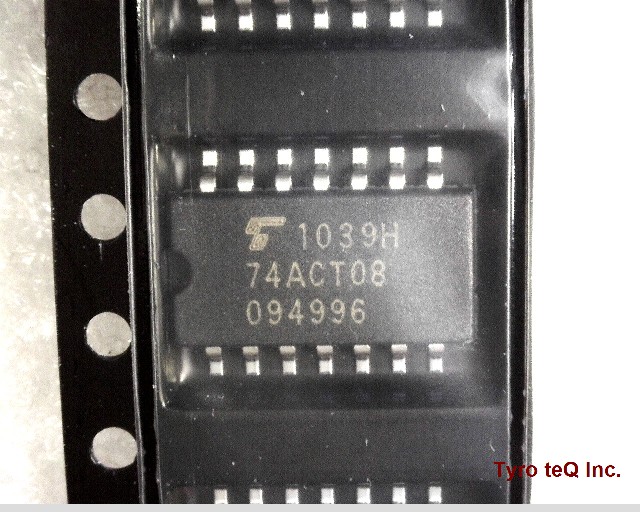

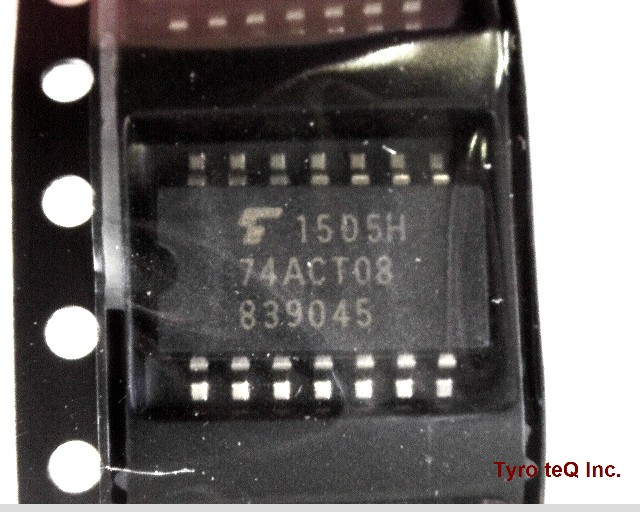

TC74ACT08F(EL,F)

Name: TC74ACT08F(EL,F)
Brand: TOSHIBA
SKU: 400066822-0000-0000-0000

TC74ACT08F(EL,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC74ACT08F(EL,F) の詳細情報

型番	TC74ACT08F(EL,F)
メーカー	TOSHIBA
種別	CMOSロジックIC
DLA Qualification	Not Qualified
Family	ACT
J-STD-609 Code	e4
JESD-30 Code	R-PDSO-G14
Length (mm)	10.3
Load Capacitance (pF)	50
Logic IC Type	AND GATE
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Low Current-Max (mA)	24
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Propagation Delay (ns)	10
Propagation Delay-Max@Nom-Sup (ns)	10
Schmitt Trigger	NO
Seated Height-Max (mm)	1.9
Sub Category	Gates
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width (mm)	5.3
