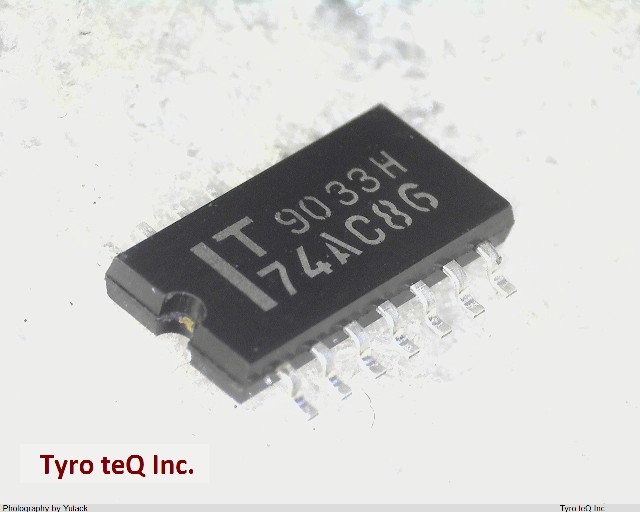

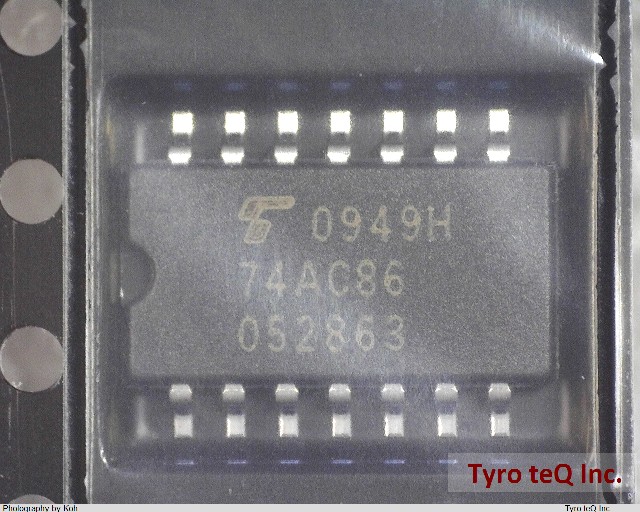

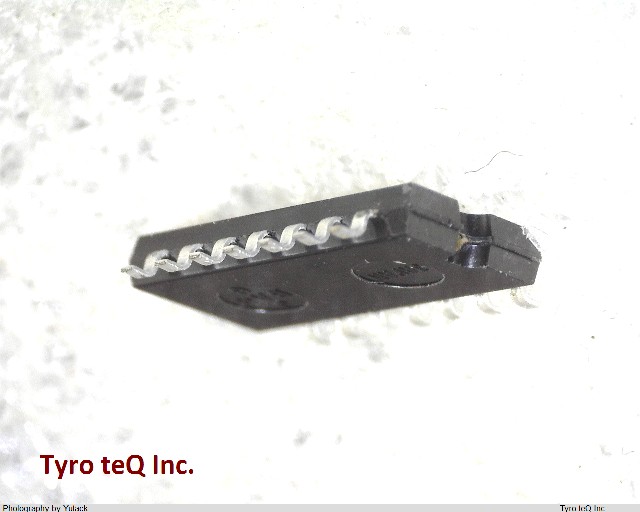

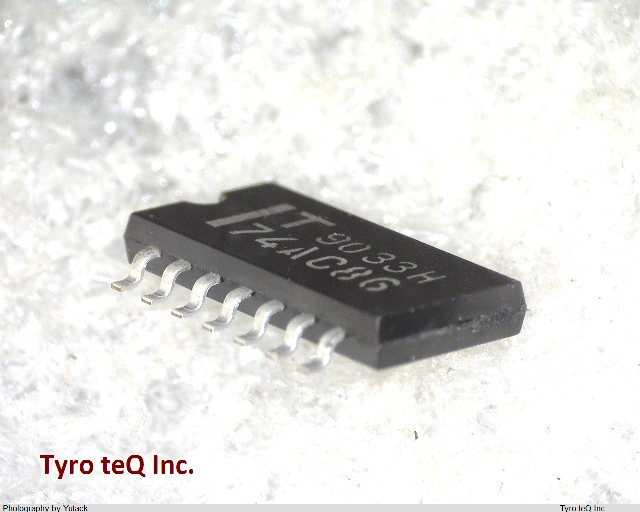

TC74AC86F データシート

Name: TC74AC86F
Brand: TOSHIBA
SKU: 300018340-0000-0000-0000

TC74AC86F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74ACシリーズ|パッケージ : SOP

TC74AC86F の詳細情報

型番	TC74AC86F
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	50 OHM LINE DRIVE CAPABILITY FOR < = 10MS ONE O/P AT A TIME
Family	AC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	0.012 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	14 ns
Propagation Delay (tpd)	9.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
