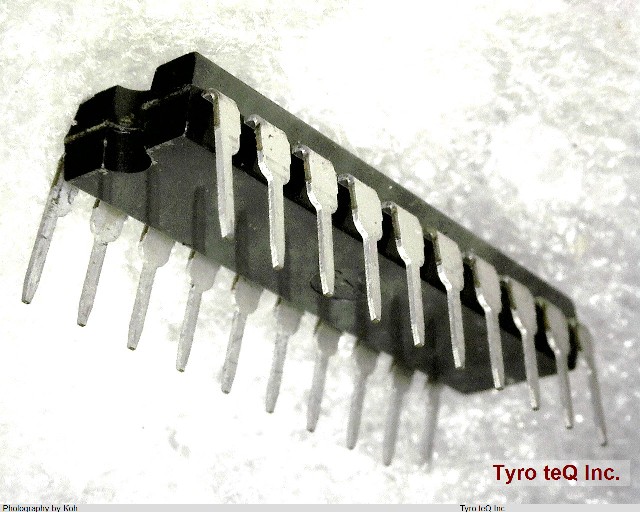

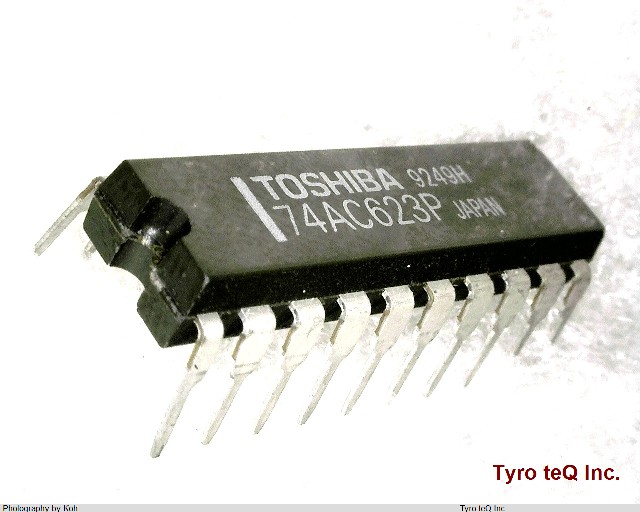

TC74AC623P データシート

Name: TC74AC623P
Brand: TOSHIBA
SKU: 300222512-0000-0000-0000

TC74AC623P - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

CMOSロジックIC | 74ACシリーズ|パッケージ : DIP

TC74AC623P の詳細情報

型番	TC74AC623P
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control Type	INDEPENDENT CONTROL
Count Direction	BIDIRECTIONAL
Family	AC
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	8 ns
Qualification Status	Not Qualified
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Translation	N/A
