TC74AC574F(EL) データシート

Name: TC74AC574F(EL)
Brand: TOSHIBA
SKU: 300393260-0000-0000-0000

TC74AC574F(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

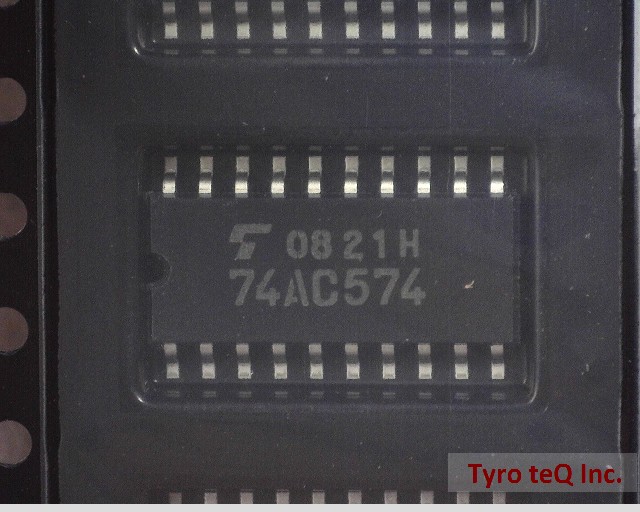

EL:エンボスリール左巻|CMOSロジックIC | 74ACシリーズ|パッケージ : SOP

TC74AC574F(EL) の詳細情報

型番	TC74AC574F(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	BROADSIDE VERSION OF 374; 50 OHM LINE DRIVE CAPABILITY FOR < = 10MS ONE O/P AT A TIME
Family	AC
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	10.5 ns
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
