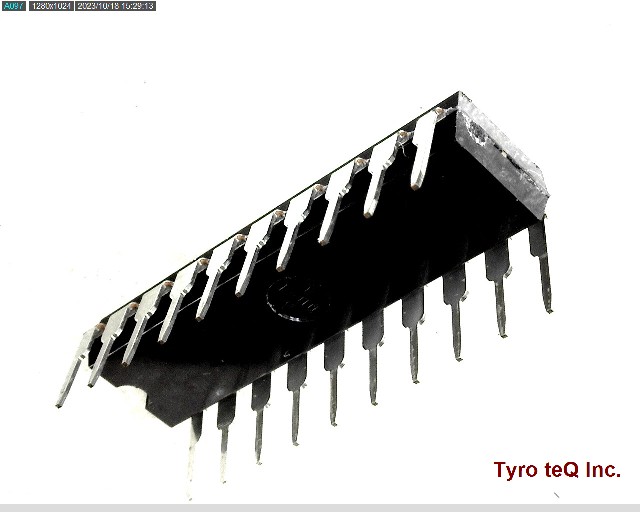

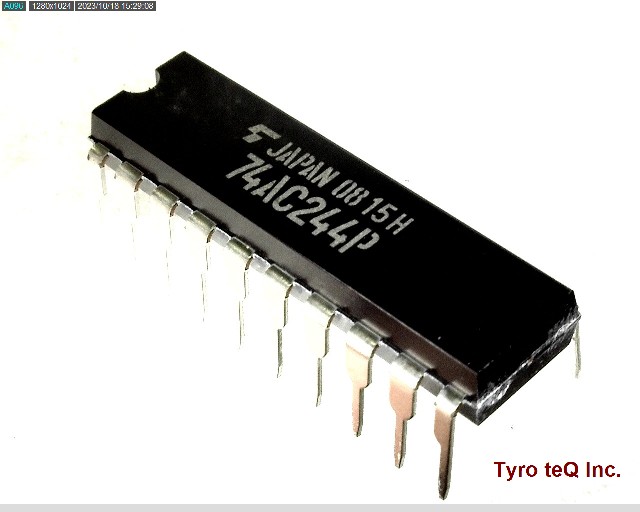

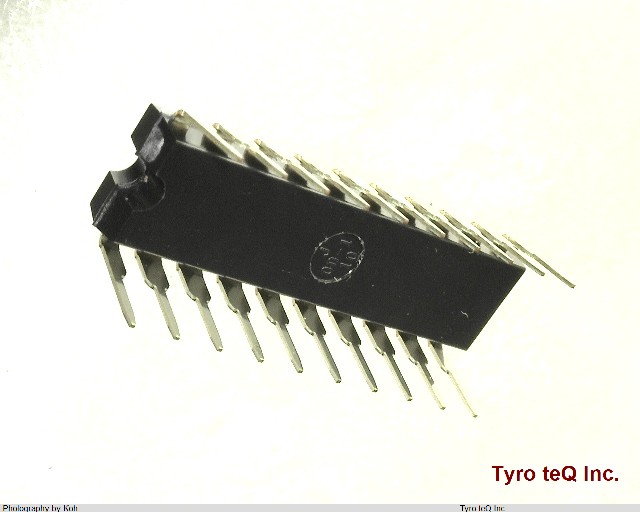

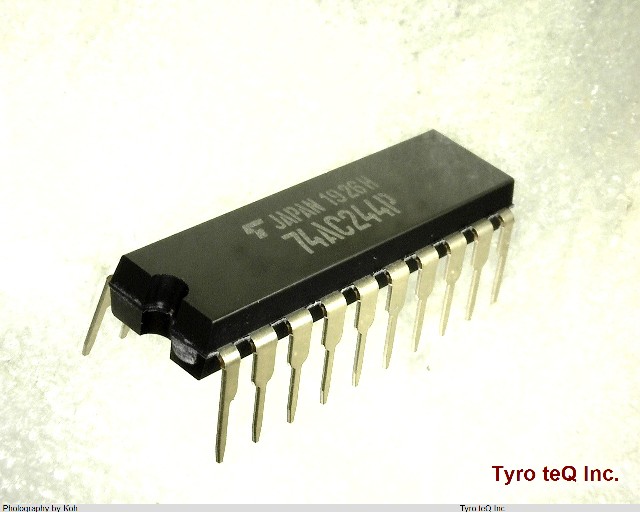

TC74AC244P(F)

Name: TC74AC244P(F)
Brand: TOSHIBA
SKU: 300221050-0000-0000-0000

TC74AC244P(F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

F:RoHS品|CMOSロジックIC | 74ACシリーズ|パッケージ : DIP

TC74AC244P(F) の詳細情報

型番	TC74AC244P(F)
メーカー	TOSHIBA
種別	CMOSロジックIC
Control Type	ENABLE LOW
Count Direction	UNIDIRECTIONAL
Family	AC
JESD-30 Code	R-PDIP-T20
Length	24.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.075 Amp
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Power Supply Current-Max (ICC)	200 mA
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	13 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Pure Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	7.62 mm
