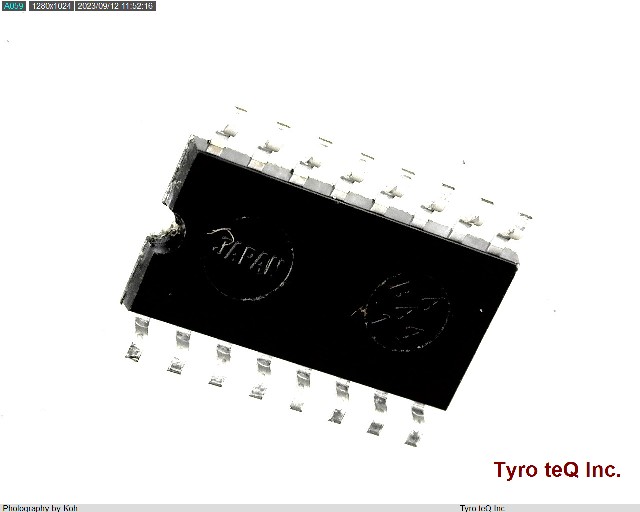

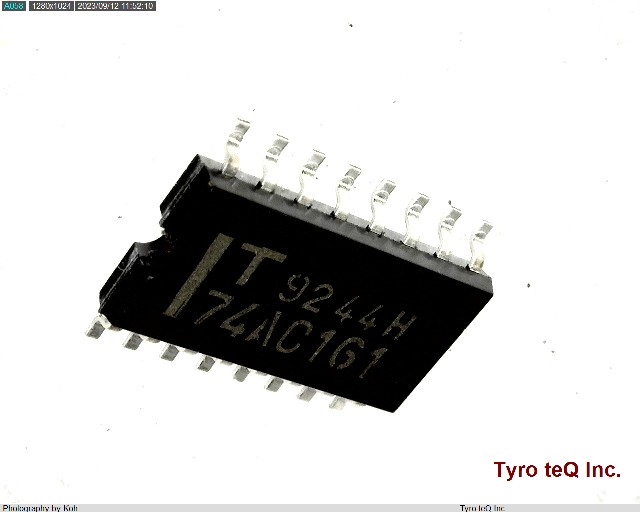

TC74AC161F データシート

Name: TC74AC161F
Brand: TOSHIBA
SKU: 300001306-0000-0000-0000

TC74AC161F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

CMOSロジックIC | 74ACシリーズ|パッケージ : SOP

TC74AC161F の詳細情報

型番	TC74AC161F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	,NOT AVAILABLE IN JAPAN
Count Direction	UP
Family	AC
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	50000000 Hz
Max I(ol)	0.012 Amp
Mode of Operation	SYNCHRONOUS
Number of Bits	4
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3/5 V
Propagation Delay (tpd)	11 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	3.9 mm
fmax-Min	90 MHz
tpd_tpz (Typ.)(nsec)	6.5
グループ	TC74AC
ピン数	16
回路数	1
機能1	Counter
機能2	Binary Counter
面実装区分	Y
