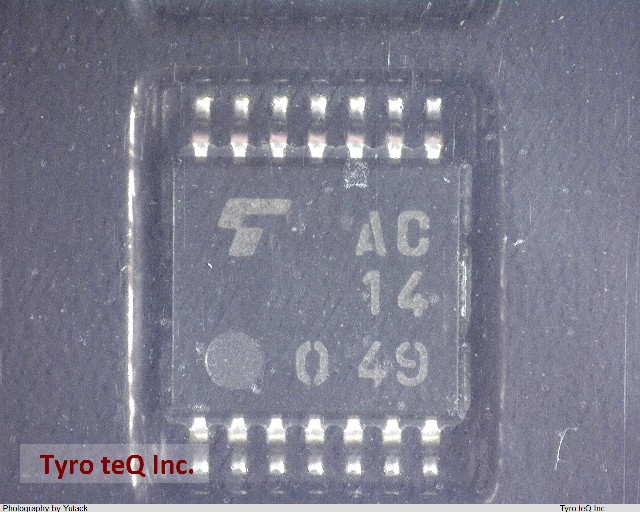

TC74AC14FT(EL)

Name: TC74AC14FT(EL)
Brand: TOSHIBA
SKU: 300312064-0000-0000-0000

TC74AC14FT(EL) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

EL:エンボスリール左巻|CMOSロジックIC | 74ACシリーズ|パッケージ : TSSOP

TC74AC14FT(EL) の詳細情報

型番	TC74AC14FT(EL)
メーカー	TOSHIBA
種別	CMOSロジックIC
Family	AC
JESD-30 Code	R-PDSO-G14
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.012 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	15 ns
Propagation Delay (tpd)	15 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
