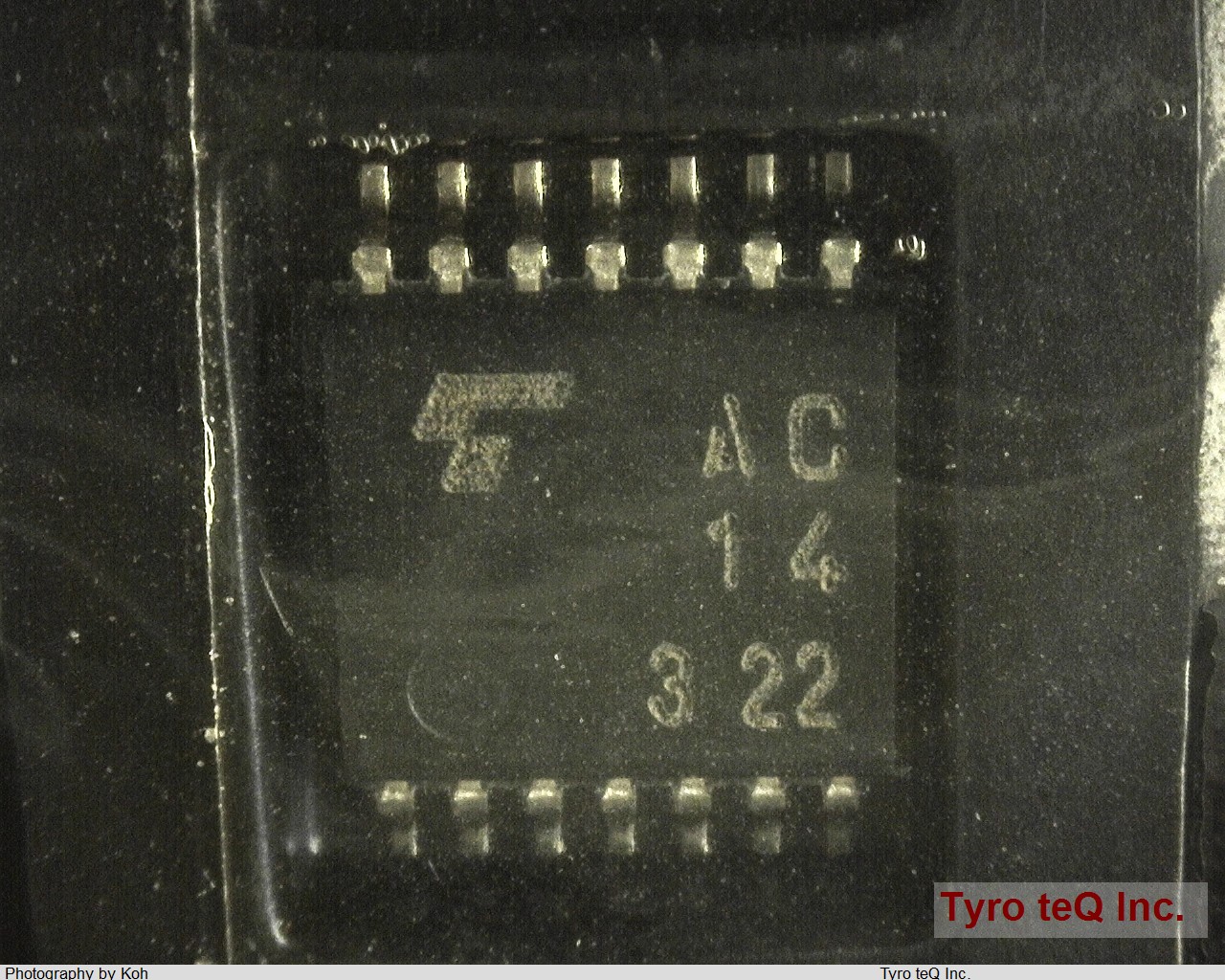

TC74AC14FT データシート

Name: TC74AC14FT
Brand: TOSHIBA
SKU: 300018225-0000-0000-0000

TC74AC14FT - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

CMOSロジックIC | 74ACシリーズ|パッケージ : TSSOP

TC74AC14FT の詳細情報

型番	TC74AC14FT
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Family	AC
IBIS	IBIS
IO (Min)(mA)	24
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.012 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3/5 V
Power Supply Current-Max (ICC)	150 mA
Prop. Delay@Nom-Sup	15 ns
Propagation Delay (tpd)	11 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	5.5
VCC (Min)(V)	2
Width	4.4 mm
tpd_tpz (Typ.)(nsec)	5.3
グループ	TC74AC
ピン数	14
回路数	6
機能1	Gate
機能2	Schmitt Inverter
面実装区分	Y
