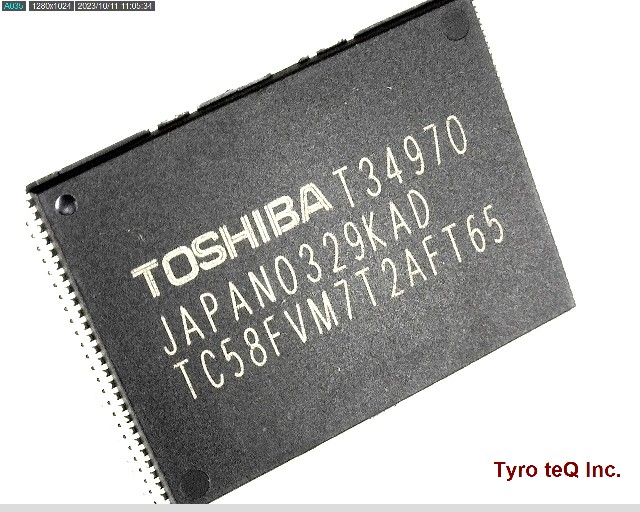

TC58FVM7T2AFT65 データシート

Name: TC58FVM7T2AFT65
Brand: TOSHIBA
SKU: 300070167-0000-0000-0000

TC58FVM7T2AFT65 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC58FVM7T2AFT65 の詳細情報

型番	TC58FVM7T2AFT65
メーカー	TOSHIBA
種別	NAND型フラッシュメモリ
データシート
Access Time-Max	75 ns
Alternate Memory Width	8
Boot Block	TOP
Command User Interface	YES
Common Flash Interface	YES
Data Polling	YES
JESD-30 Code	R-PDSO-G56
Length	18.4 mm
Memory Density	134217728 bit
Memory IC Type	FLASH
Memory Width	16
Number of Functions	1
Number of Sectors/Size	8, 255
Number of Terminals	56
Number of Words	8388608 words
Number of Words Code	8M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	8MX16
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP56,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Page Size	8/16 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2.5/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	1.2 mm
Sector Size	8K,64K Words
Standby Current-Max	1.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.07 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	YES
Type	NOR TYPE
Width	14 mm
