TC58FVM5B2ATG65 データシート

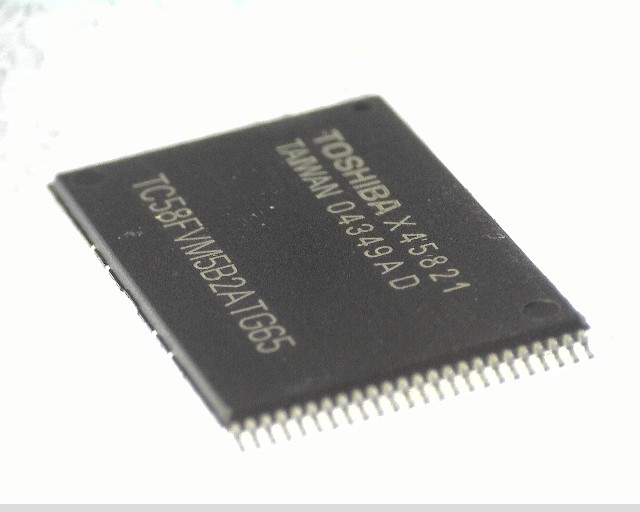

Name: TC58FVM5B2ATG65
Brand: TOSHIBA
SKU: 300242507-0000-0000-0000

TC58FVM5B2ATG65 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC58FVM5B2ATG65 の詳細情報

型番	TC58FVM5B2ATG65
メーカー	TOSHIBA
種別	NAND型フラッシュメモリ
データシート
Access Time-Max	65 ns
Alternate Memory Width	8
Boot Block	BOTTOM
Command User Interface	YES
Common Flash Interface	YES
Data Polling	YES
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G48
Length	18.4 mm
Memory Density	33554432 bit
Memory IC Type	FLASH
Memory Width	16
Number of Functions	1
Number of Sectors/Size	8,63
Number of Terminals	48
Number of Words	2097152 words
Number of Words Code	2M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	2MX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP48,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Power Supplies	2.5/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	1.2 mm
Sector Size	8K,64K Words
Standby Current-Max	1.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.07 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Toggle Bit	YES
Type	NOR TYPE
Width	12 mm
