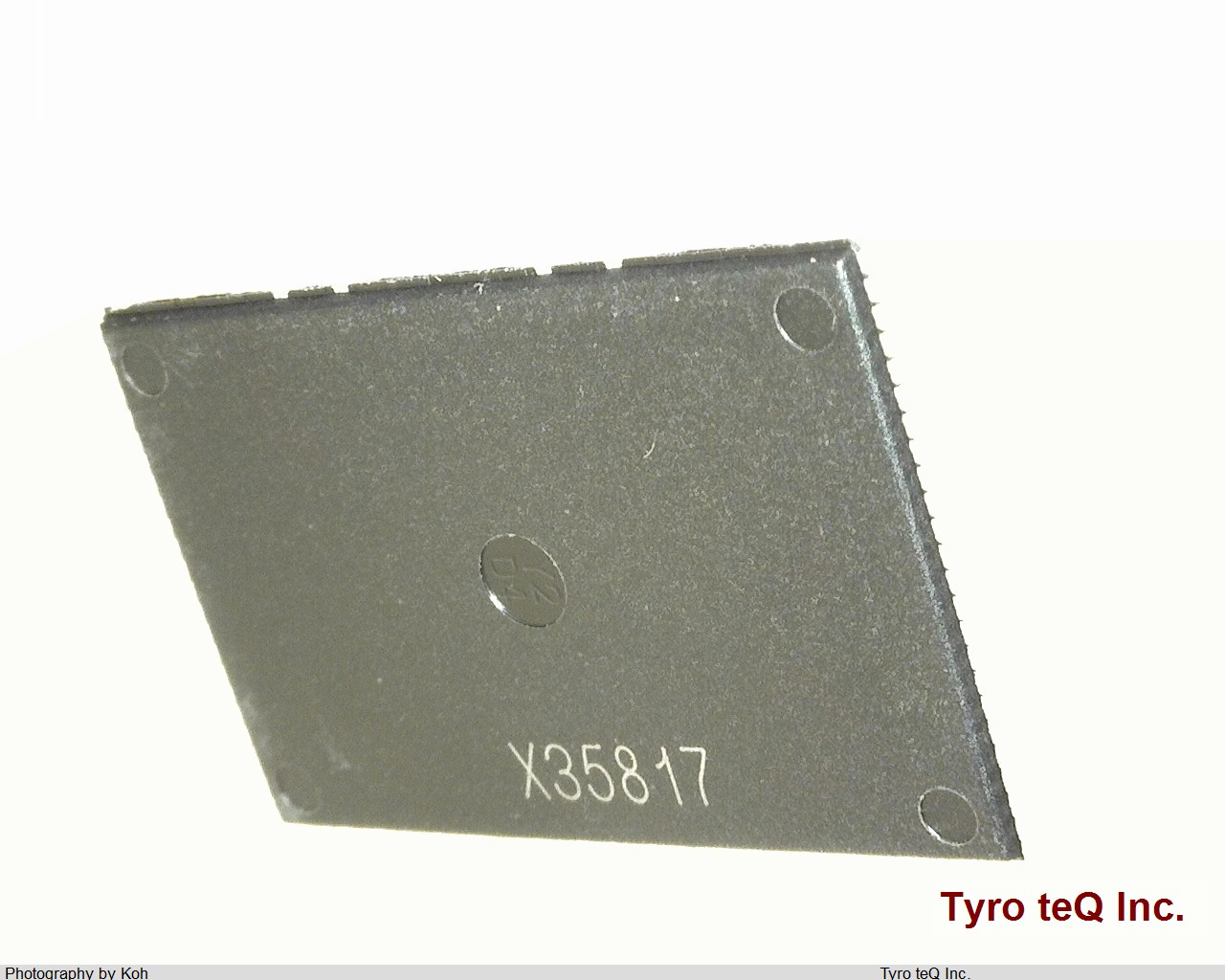

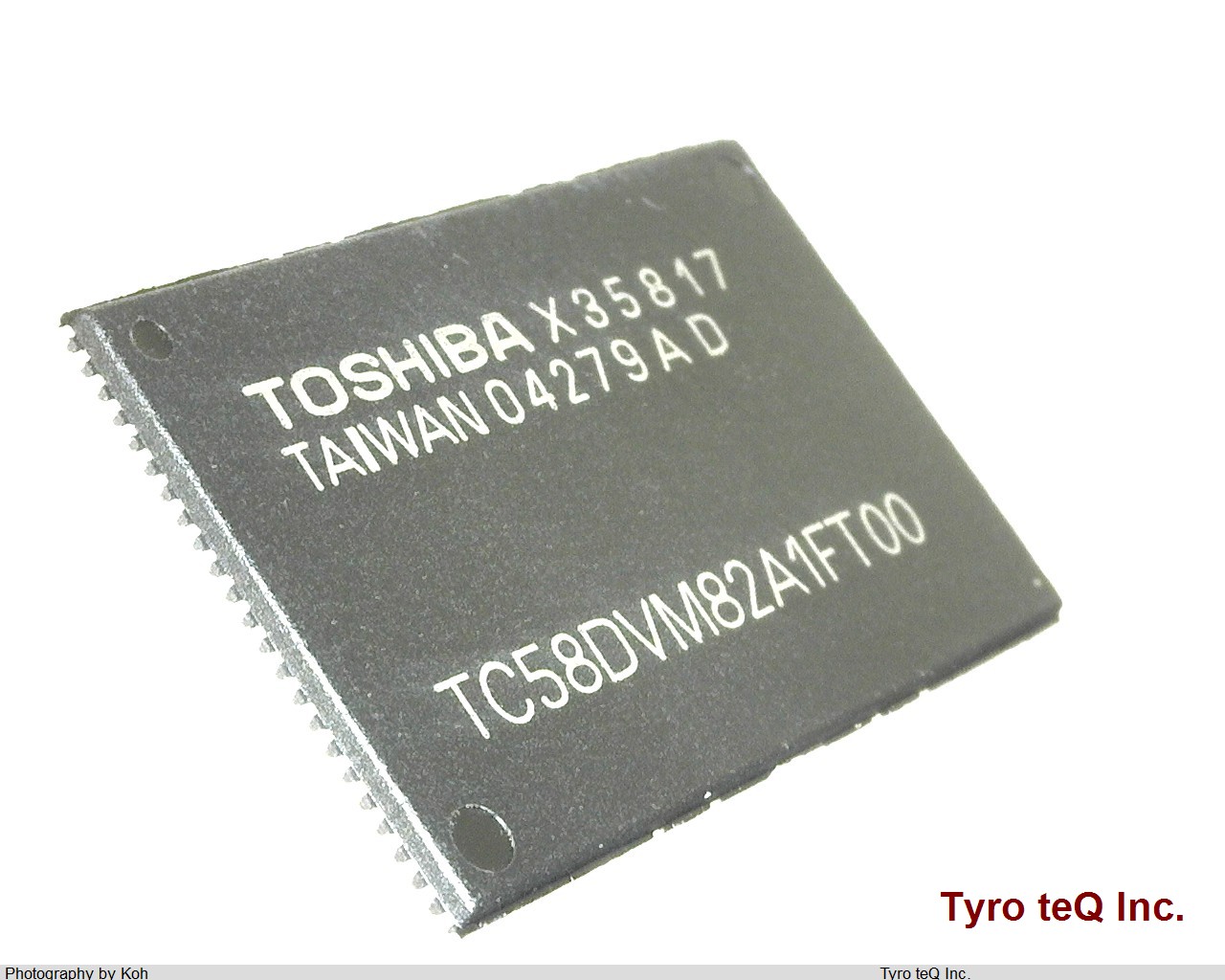

TC58DVM82A1FT00 データシート

Name: TC58DVM82A1FT00
Brand: TOSHIBA
SKU: 300018004-0000-0000-0000

TC58DVM82A1FT00 - TOSHIBA の商品詳細ページです。

No Image

２営業日以内に回答いたします

TC58DVM82A1FT00 の詳細情報

型番	TC58DVM82A1FT00
メーカー	TOSHIBA
種別	NAND型フラッシュメモリ
データシート
Access Time-Max	35 ns
Command User Interface	YES
Data Polling	NO
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e0
Length	18.4 mm
Memory Density	268435456 bit
Memory IC Type	EEPROM
Memory Width	8
Number of Functions	1
Number of Sectors/Size	2K
Number of Terminals	48
Number of Words	33554432 words
Number of Words Code	32M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	32MX8
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP48,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Page Size	512 words
Parallel/Serial	PARALLEL
Power Supplies	3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	1.2 mm
Sector Size	16K Words
Standby Current-Max	5.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.03 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Toggle Bit	NO
Type	NAND TYPE
Width	12 mm
