TC57512AD-15 データシート

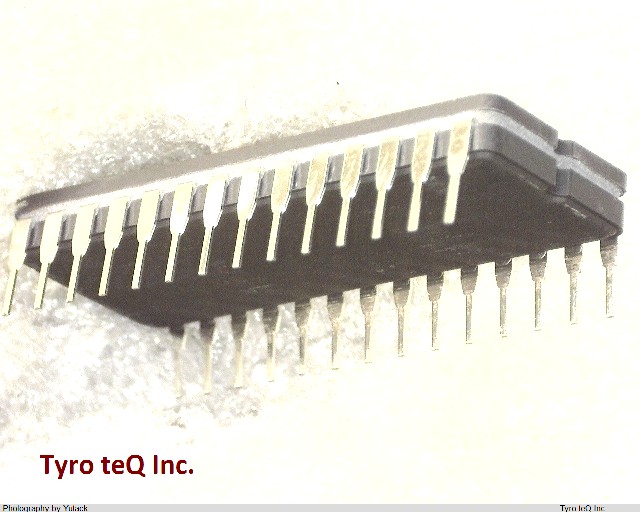

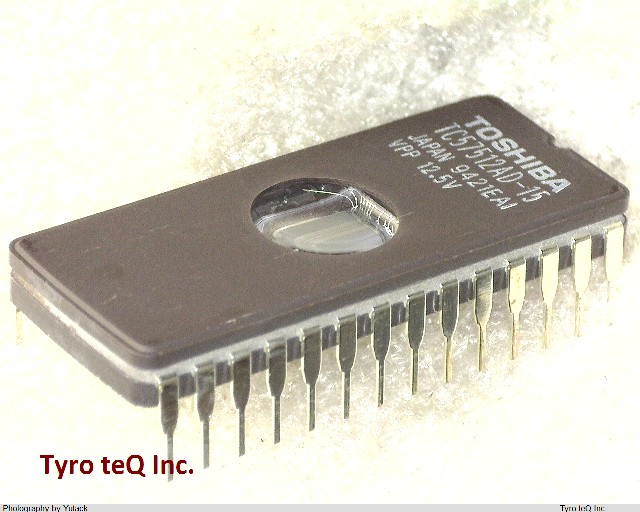

Name: TC57512AD-15
Brand: TOSHIBA
SKU: 300000487-0000-0000-0000

TC57512AD-15 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC57512AD-15 の詳細情報

型番	TC57512AD-15
メーカー	TOSHIBA
データシート
Access Time-Max	150 ns
JESD-30 Code	R-GDIP-T28
JESD-609 Code	e0
Length	36.83 mm
Memory Density	524288 bit
Memory IC Type	UVPROM
Memory Width	8
Number of Functions	1
Number of Terminals	28
Number of Words	65536 words
Number of Words Code	64K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	64KX8
Output Characteristics	3-STATE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	WDIP
Package Shape	RECTANGULAR
Package Style	IN-LINE, WINDOW Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	6 mm
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
