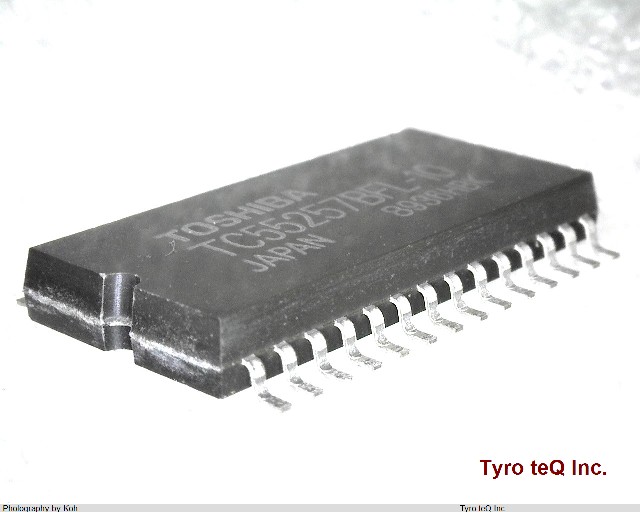

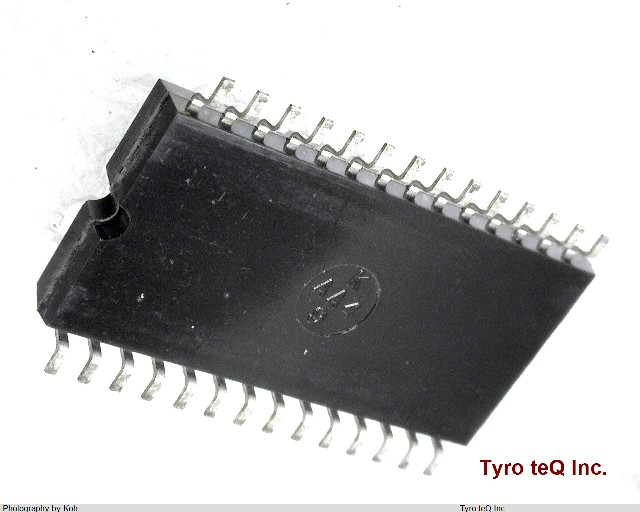

TC55257BFL-10 データシート

Name: TC55257BFL-10
Brand: TOSHIBA
SKU: 300017765-0000-0000-0000

TC55257BFL-10 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC55257BFL-10 の詳細情報

型番	TC55257BFL-10
メーカー	TOSHIBA
データシート
Access Time-Max	100 ns
Additional Feature	LOW POWER STANDBY MODE; TTL COMPATIBLE INPUTS/OUTPUTS
I/O Type	COMMON
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	18.5 mm
Memory Density	262144 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Number of Functions	1
Number of Ports	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Organization	32KX8
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	240
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	2.7 mm
Standby Current-Max	2.0E-5 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.07 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	8.8 mm
