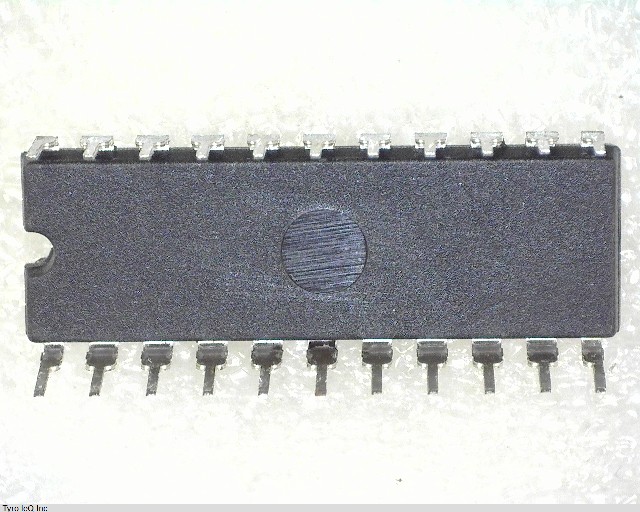

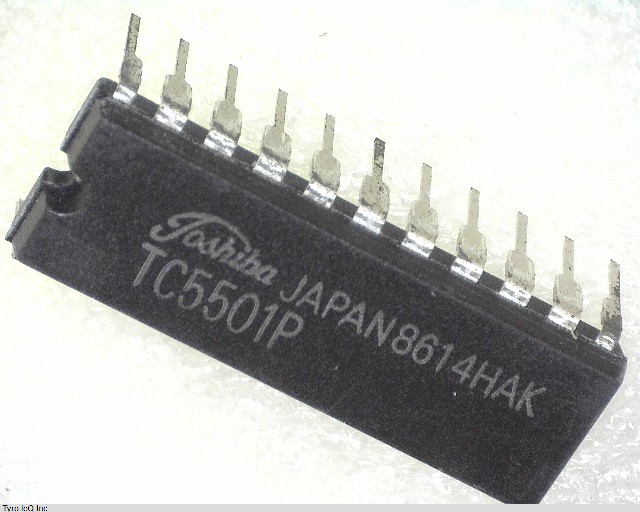

TC5501P データシート

Name: TC5501P
Brand: TOSHIBA
SKU: 300017682-0000-0000-0000

TC5501P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC5501P の詳細情報

型番	TC5501P
メーカー	TOSHIBA
データシート
Access Time-Max	650 ns
Additional Feature	SEATED HGT CALCULATED
JESD-30 Code	R-PDIP-T22
JESD-609 Code	e0
Length	27.6 mm
Memory Density	1024 bit
Memory Width	4
Number of Functions	1
Number of Terminals	22
Number of Words	256 words
Number of Words Code	256
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Organization	256X4
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	4.5 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10.16 mm
