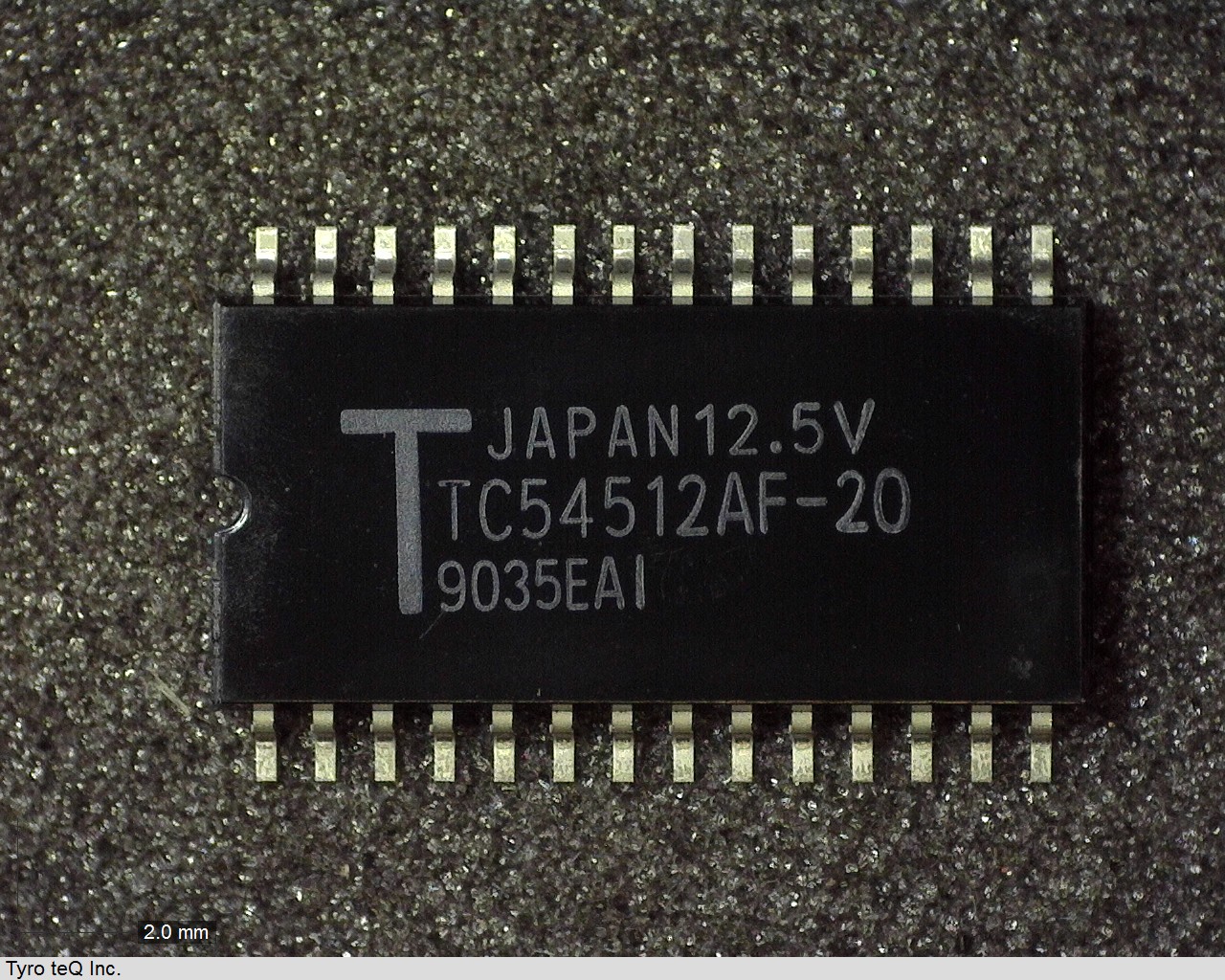

TC54512AF-20 データシート

Name: TC54512AF-20
Brand: TOSHIBA
SKU: 300222325-0000-0000-0000

TC54512AF-20 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC54512AF-20 の詳細情報

型番	TC54512AF-20
メーカー	TOSHIBA
データシート
Access Time-Max	200 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	18.5 mm
Memory Density	524288 bit
Memory IC Type	OTP ROM
Memory Width	8
Number of Functions	1
Number of Terminals	28
Number of Words	65536 words
Number of Words Code	64K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	64KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.7 mm
Standby Current-Max	0.0001 Amp
Sub Category	OTP ROMs
Supply Current-Max	0.03 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	8.8 mm
