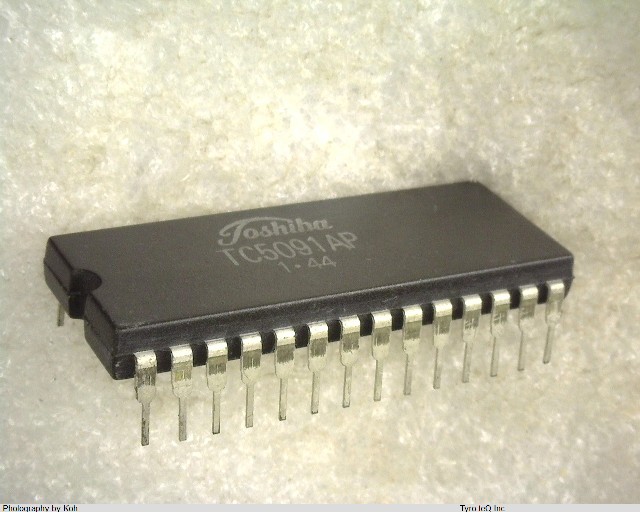

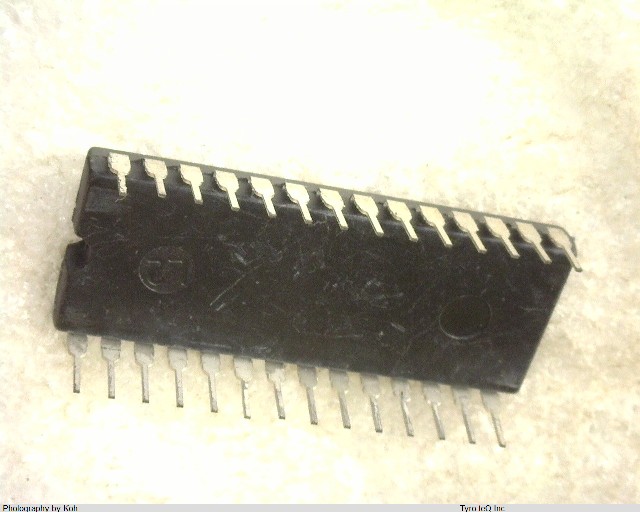

TC5091AP データシート

Name: TC5091AP
Brand: TOSHIBA
SKU: 300017387-0000-0000-0000

TC5091AP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC5091AP の詳細情報

型番	TC5091AP
メーカー	TOSHIBA
データシート
Analog Input Voltage-Max	5 V
Analog Input Voltage-Min	0 V
Conversion Time-Max	2000 us
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37 mm
Linearity Error-Max (EL)	0.3906 %
Number of Analog In Channels	6
Number of Bits	8
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, 4 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.3 mm
Supply Current-Max	3 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
