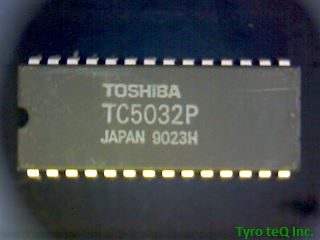

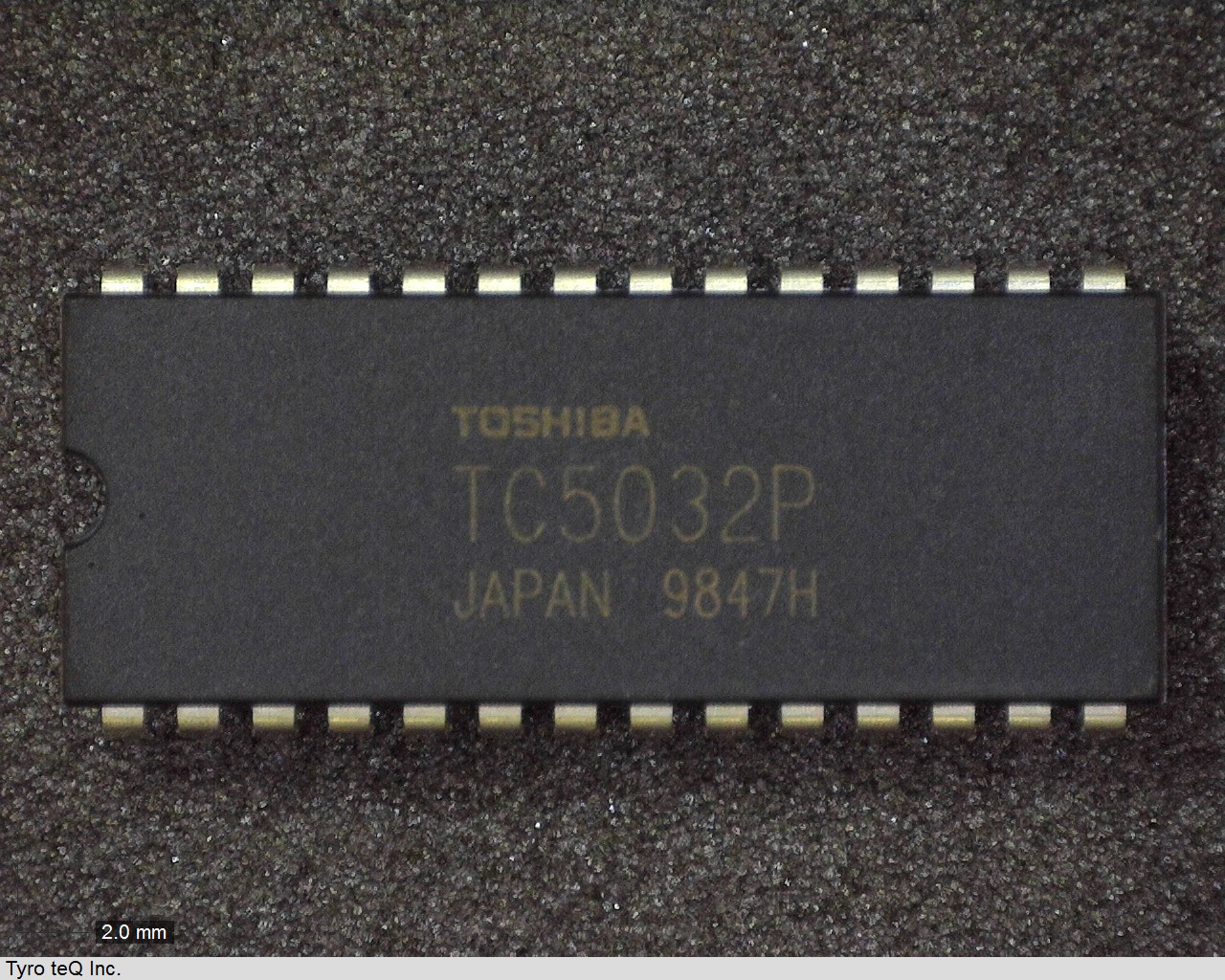

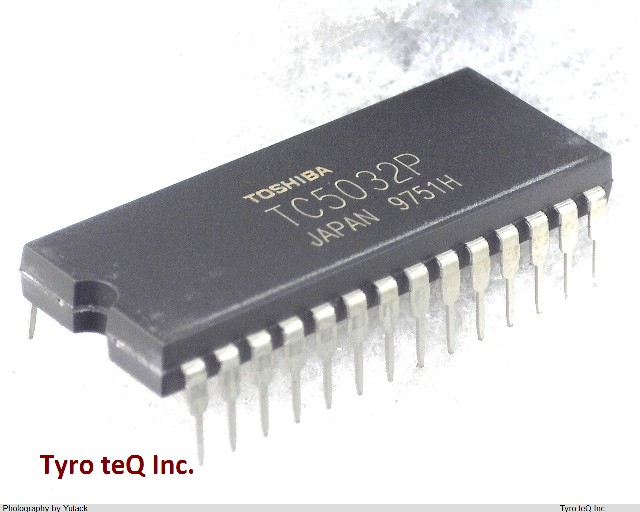

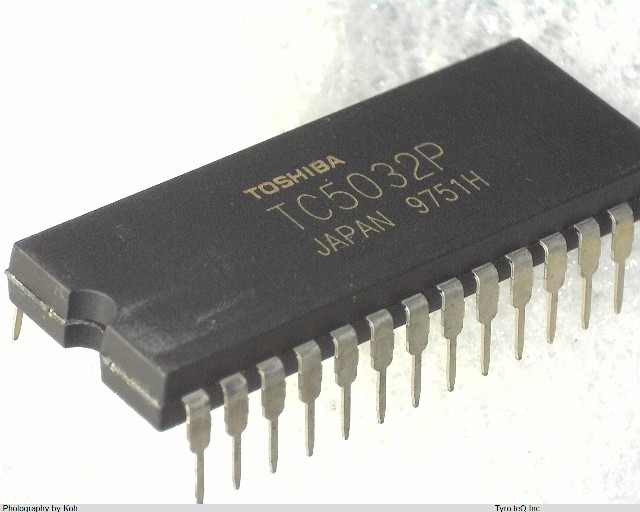

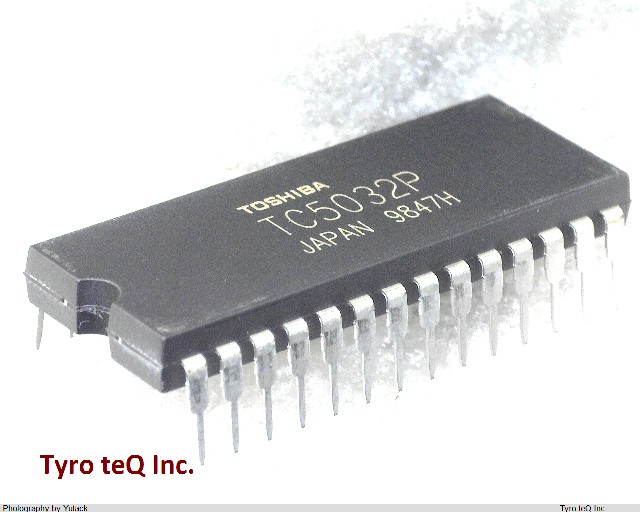

TC5032P データシート

Name: TC5032P
Brand: TOSHIBA
SKU: 300000249-0000-0000-0000

TC5032P - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC5032P の詳細情報

型番	TC5032P
メーカー	TOSHIBA
データシート
Additional Feature	6 DIGIT COUNTER WITH OUTPUT LATCH MULTIPLEXER; BLANKING CONTROL
Count Direction	UP
Family	5000
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37 mm
Load Capacitance (CL)	15 pF
Load/Preset Input	NO
Logic IC Type	DECADE COUNTER
Mode of Operation	ASYNCHRONOUS
Number of Bits	24
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	4000 ns
Qualification Status	Not Qualified
Seated Height-Max	5.3 mm
Supply Voltage-Max (Vsup)	8 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	15.24 mm
fmax-Min	10 MHz
