TC4W66FU(TE12L) データシート

Name: TC4W66FU(TE12L)
Brand: TOSHIBA
SKU: 300000740-0000-0000-0000

TC4W66FU(TE12L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

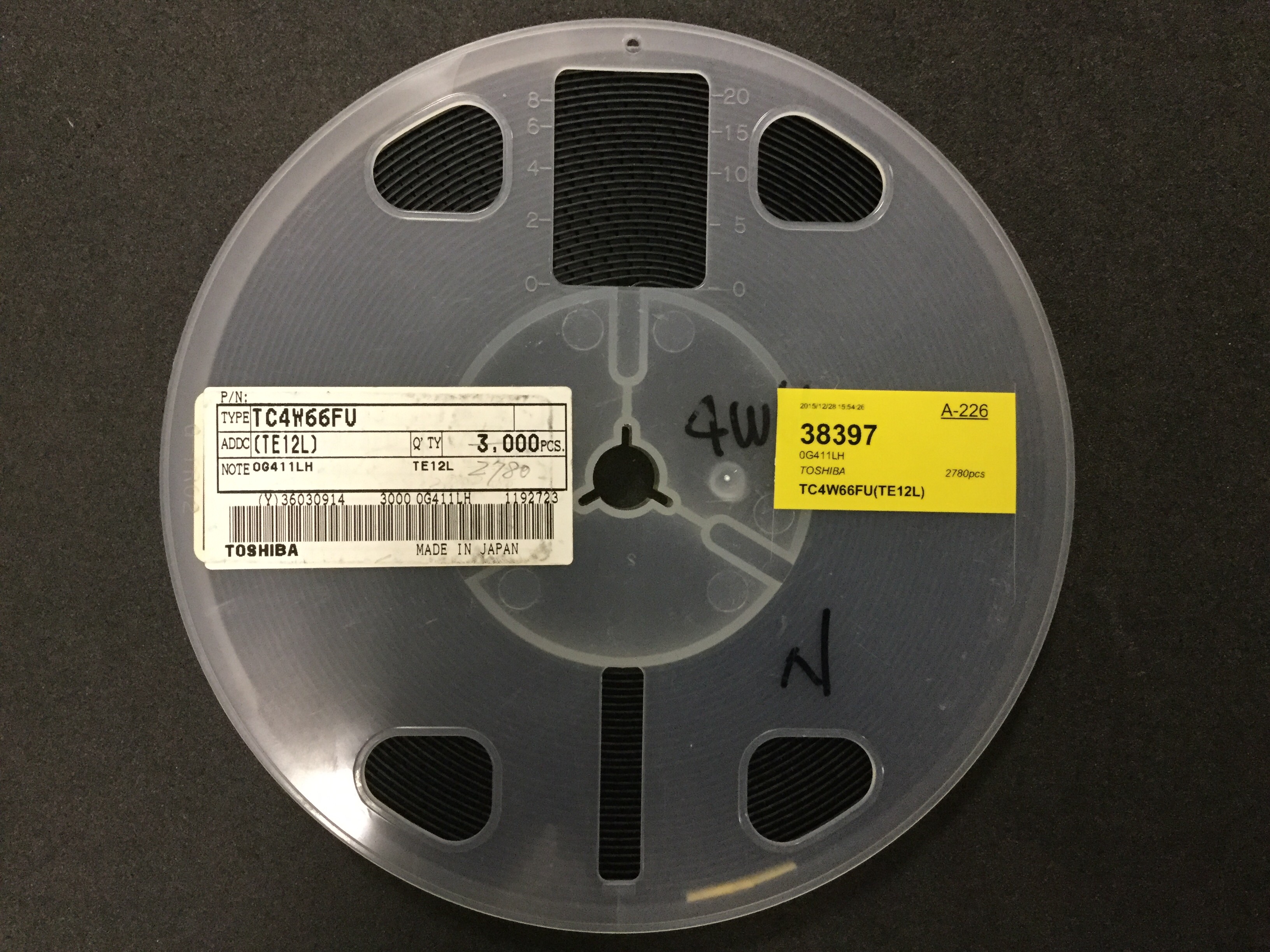

TE12L:12mm幅テーピング

TC4W66FU(TE12L) の詳細情報

型番	TC4W66FU(TE12L)
メーカー	TOSHIBA
種別	L-MOSワンゲートロジック
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Normal Position	NC V
Number of Channels	1
Number of Functions	2
Number of Terminals	8
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	950 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Power Supplies	3/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	80 ns
Switch-on Time-Max	120 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Width	2.8 mm
