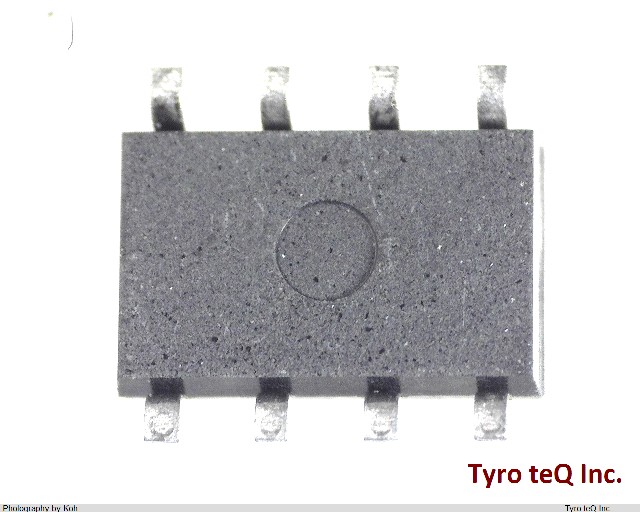

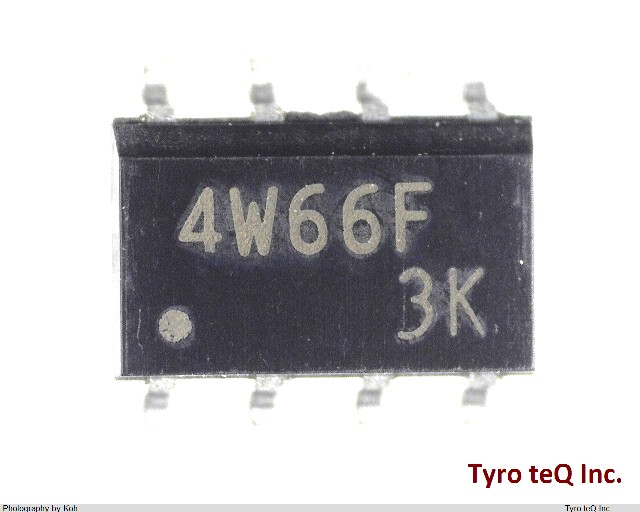

TC4W66F データシート

Name: TC4W66F
Brand: TOSHIBA
SKU: 300000695-0000-0000-0000

TC4W66F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC4W66F の詳細情報

型番	TC4W66F
メーカー	TOSHIBA
種別	L-MOSワンゲートロジック
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	2.9 mm
Neg Supply Voltage-Nom (Vsup)	0 V
Normal Position	NC V
Number of Channels	1
Number of Functions	2
Number of Terminals	8
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	4 ohm
On-state Resistance-Max (Ron)	160 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP8,.16
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.3 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	60 ns
Switch-on Time-Max	30 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.8 mm
