TC4W53F(TE12L,F) データシート

Name: TC4W53F(TE12L,F)
Brand: TOSHIBA
SKU: 300070079-0000-0000-0000

TC4W53F(TE12L,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

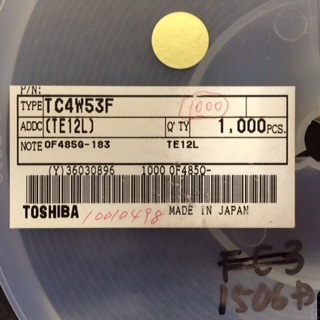

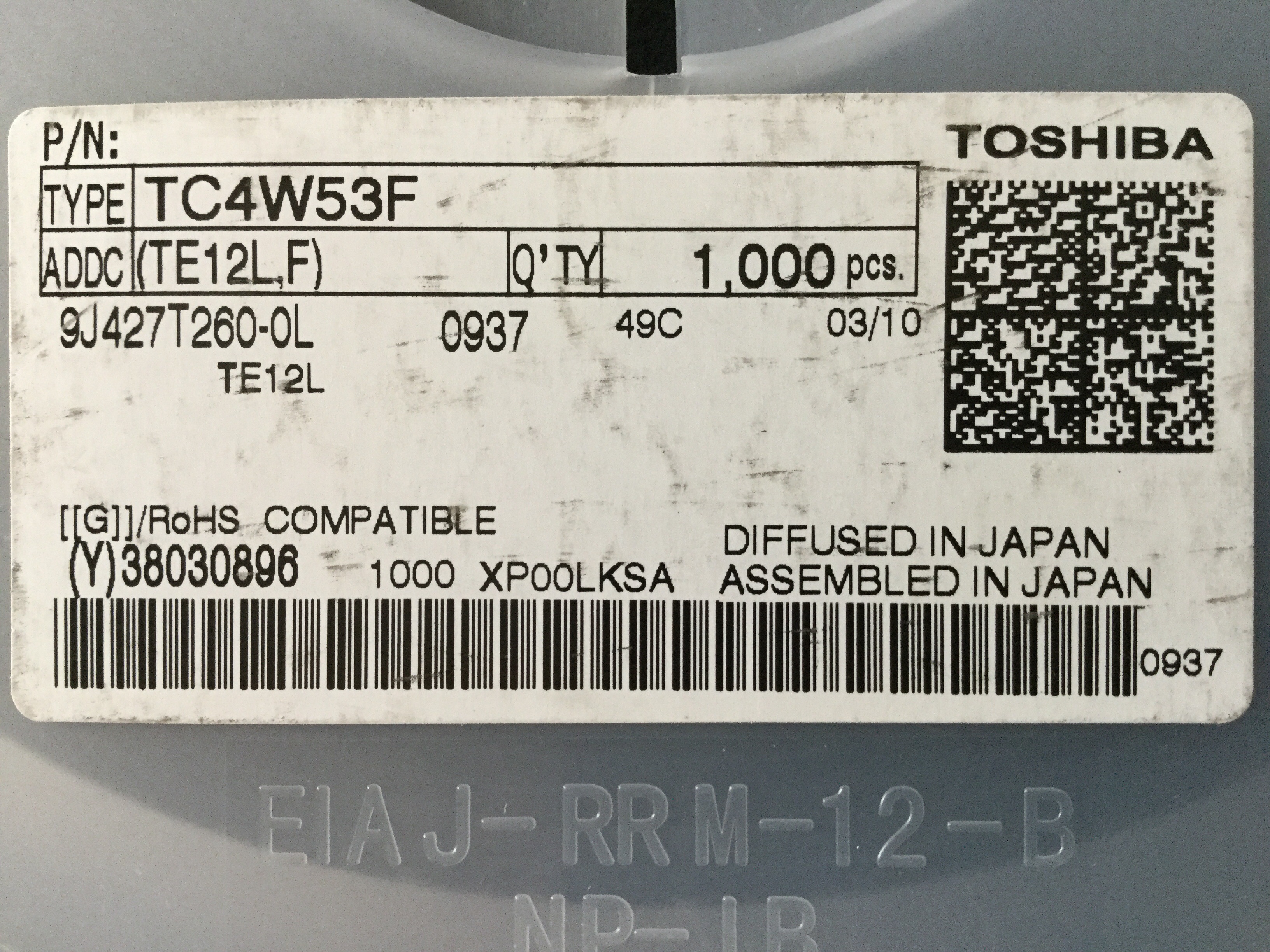

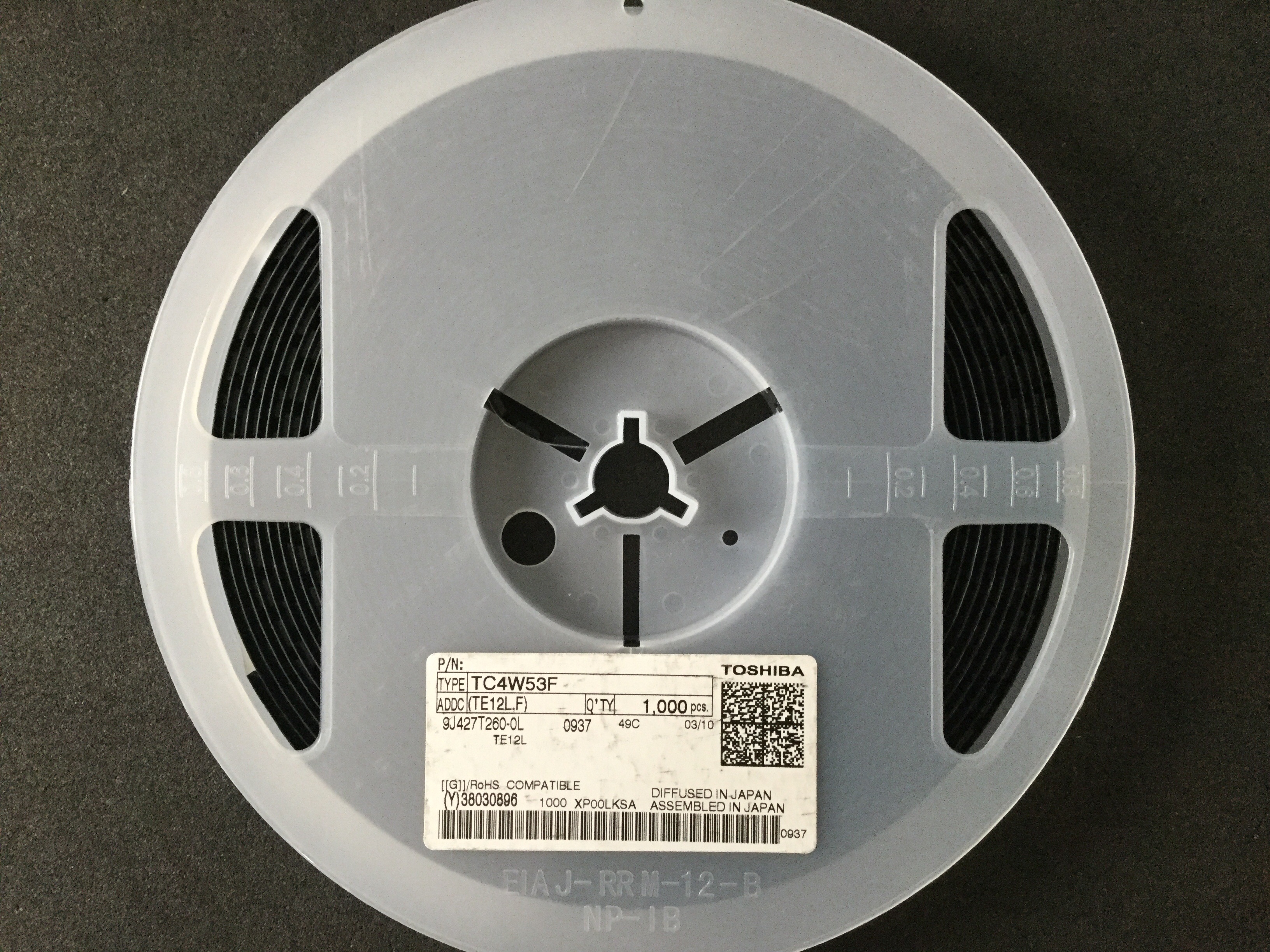

TE12L:12mm幅テーピング F:RoHS品

TC4W53F(TE12L,F) の詳細情報

型番	TC4W53F(TE12L,F)
メーカー	TOSHIBA
種別	L-MOSワンゲートロジック
データシート
JESD-30 Code	R-PDSO-G8
Length	5 mm
Number of Channels	2
Number of Functions	1
Number of Terminals	8
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	950 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.19
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	450 ns
Switch-on Time-Max	550 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	3.1 mm
