TC4S66F データシート

Name: TC4S66F
Brand: TOSHIBA
SKU: 300000244-0000-0000-0000

TC4S66F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

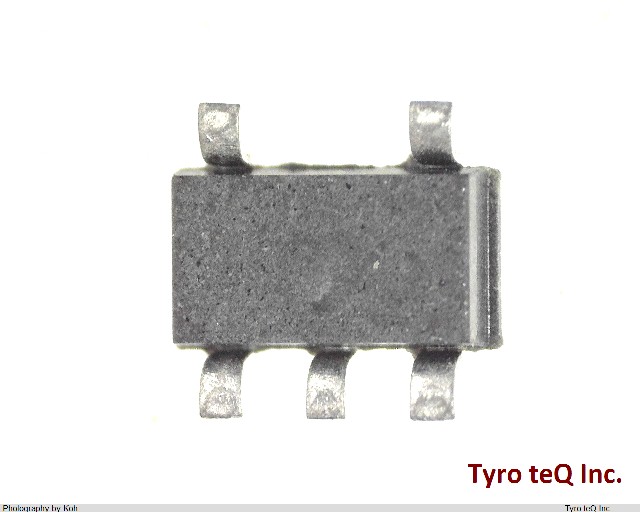

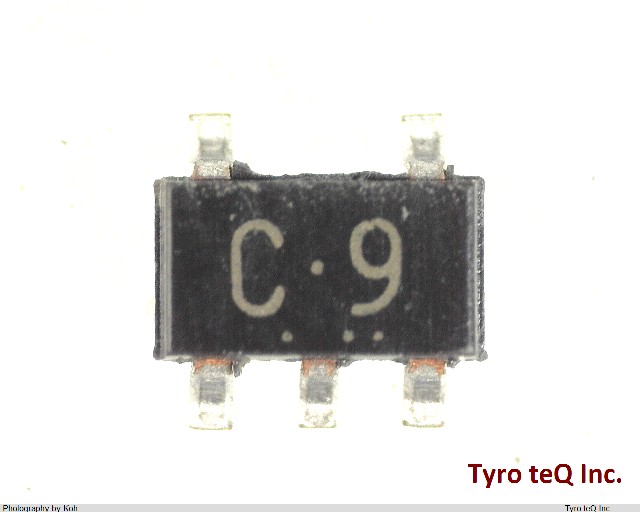

TC4S66F の詳細情報

型番	TC4S66F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	L-MOSワンゲートロジック
データシート
Analog IC - Other Type	DPDT
IBIS
IO (Min)(mA)
Input Voltage-Max	18 V
Input Voltage-Min	0 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	5
Off-state Isolation-Nom	50 dB
On-state Resistance-Max (Ron)	950 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3/18 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.03 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	80 ns
Switch-on Time-Max	80 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	18
VCC (Min)(V)	3
Width	1.25 mm
tpd_tpz (Typ.)(nsec)	20
グループ	TC4S
ゲート数	1
ピン数	5
機能1	Switch / Multiplexer
機能2	SPST Analog Switch
