TC4S584F データシート

Name: TC4S584F
Brand: TOSHIBA
SKU: 300001268-0000-0000-0000

TC4S584F - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

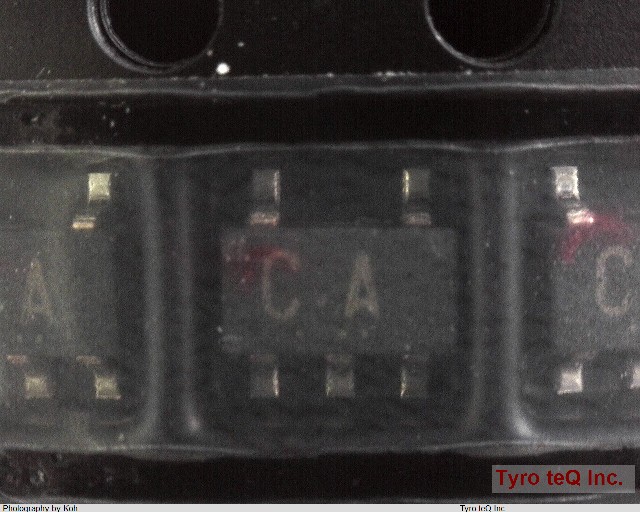

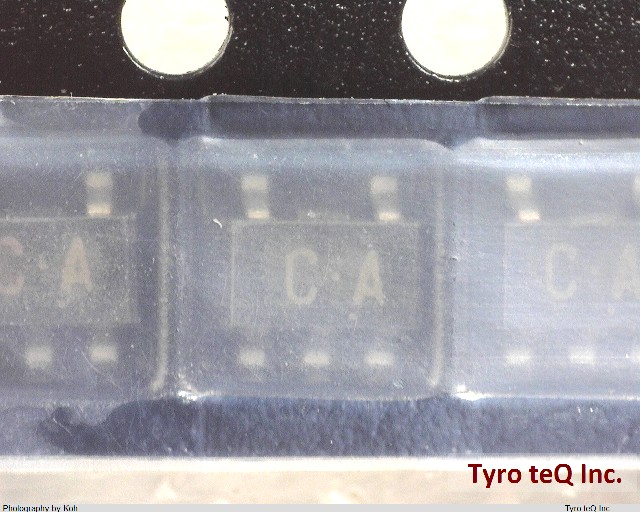

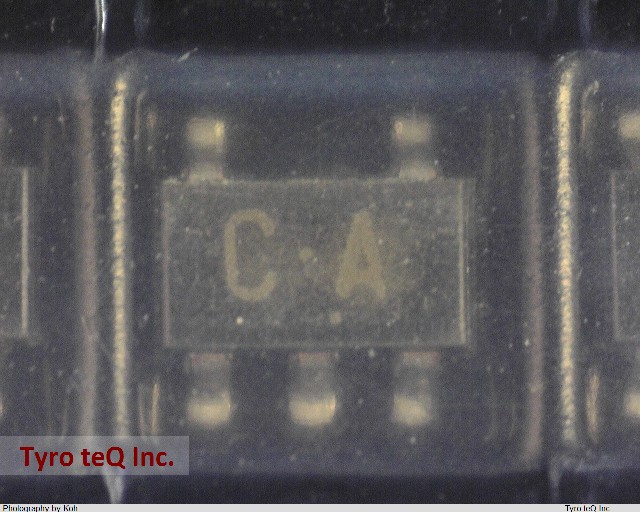

TC4S584F の詳細情報

型番	TC4S584F
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	L-MOSワンゲートロジック
データシート
Family	4000/14000/40000
IBIS
IO (Min)(mA)	15
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	240
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	340 ns
Propagation Delay (tpd)	340 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.4 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	18
VCC (Min)(V)	3
Width	1.6 mm
tpd_tpz (Typ.)(nsec)	60
グループ	TC4S
ゲート数	1
ピン数	5
機能1	Inverter
機能2	Schmitt Inverter
