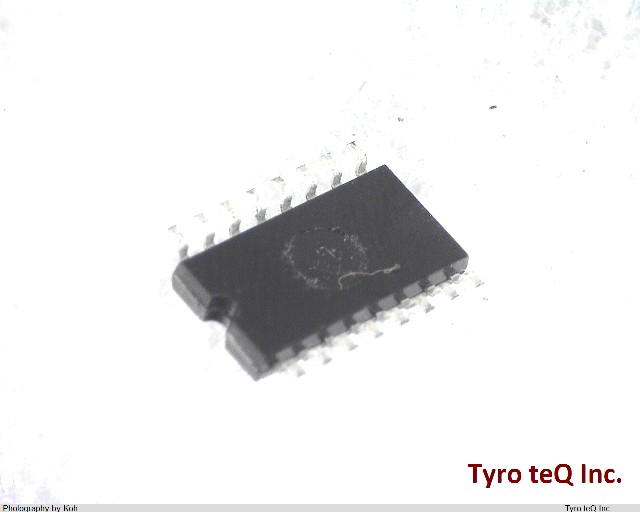

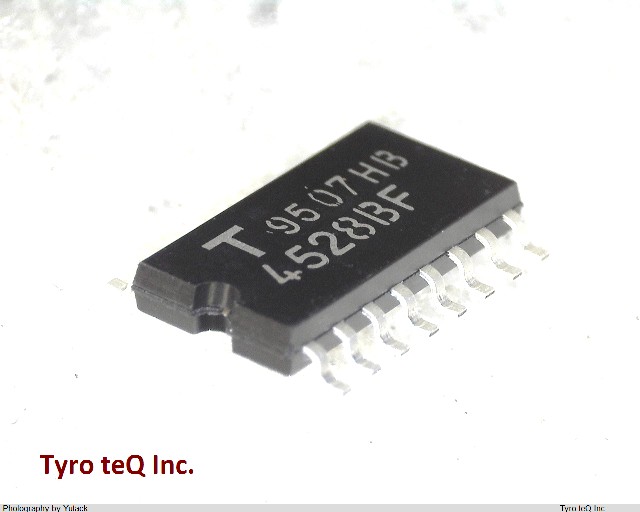

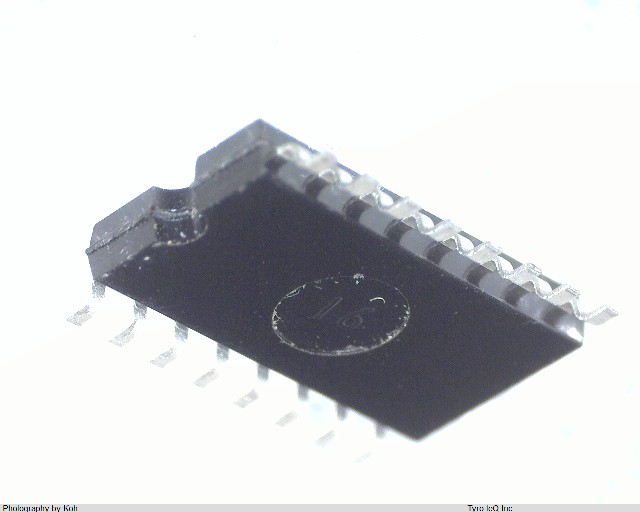

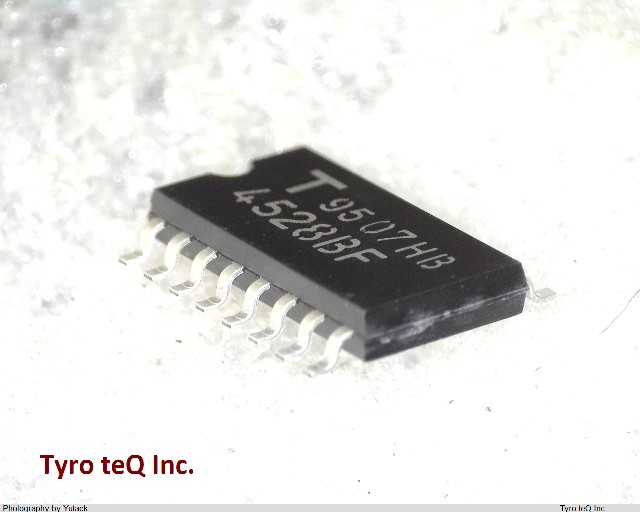

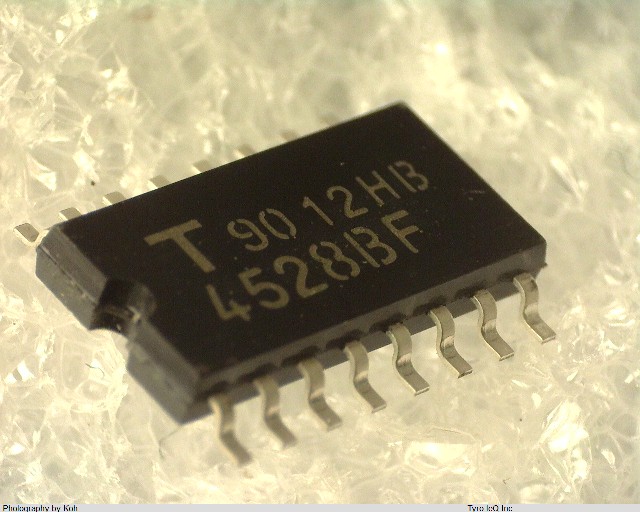

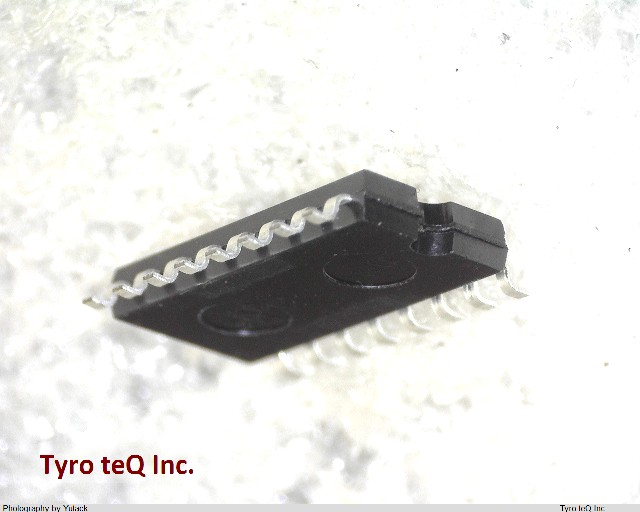

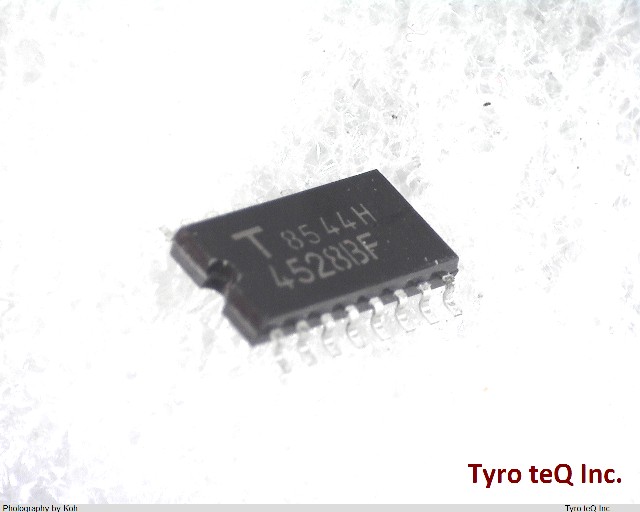

TC4528BF データシート

Name: TC4528BF
Brand: TOSHIBA
SKU: 300017304-0000-0000-0000

TC4528BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

2回路 Monostable Multivibrator | 16ピン

TC4528BF の詳細情報

型番	TC4528BF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	RETRIGGERABLE; MIN O/P PULSE WIDTH = 190NS @ REXT = 5K OHM & CEXT = 15PF
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	650 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
