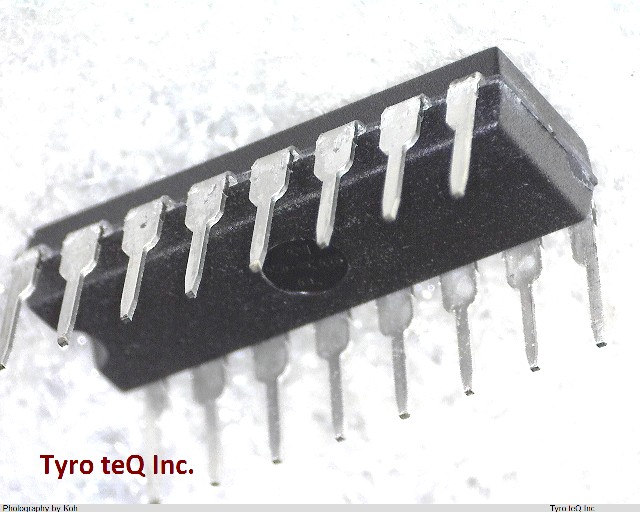

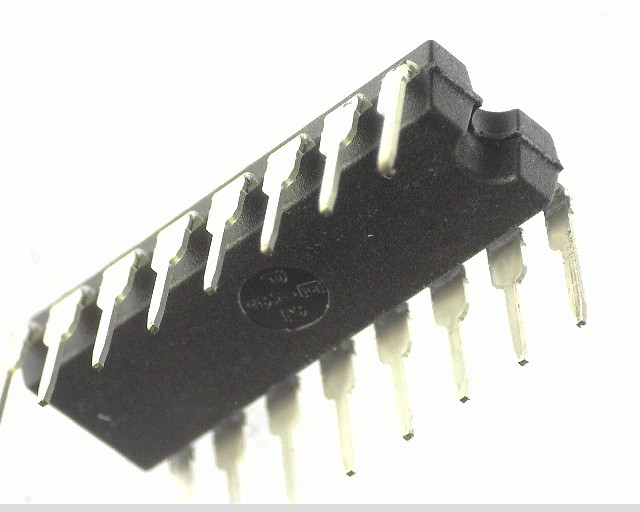

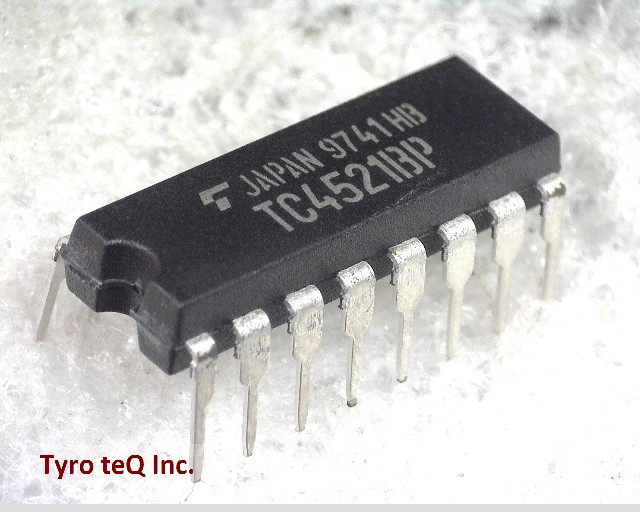

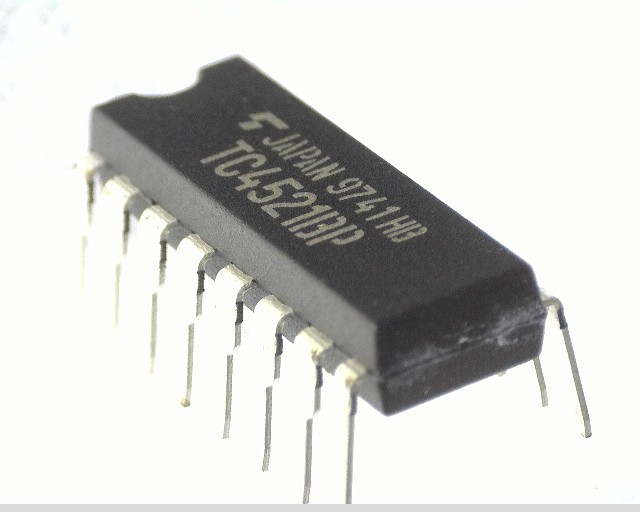

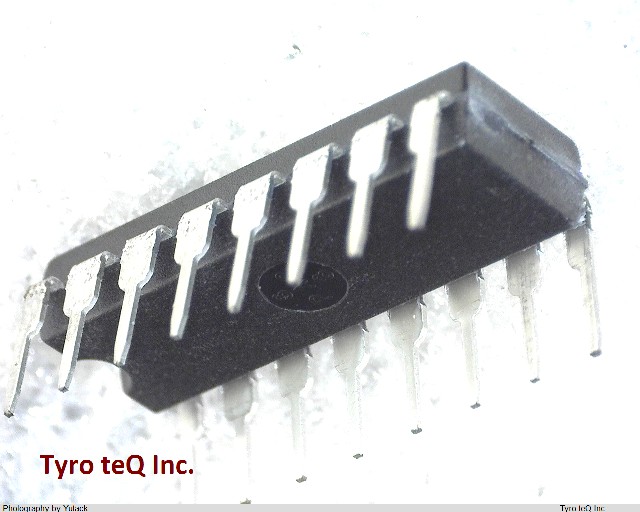

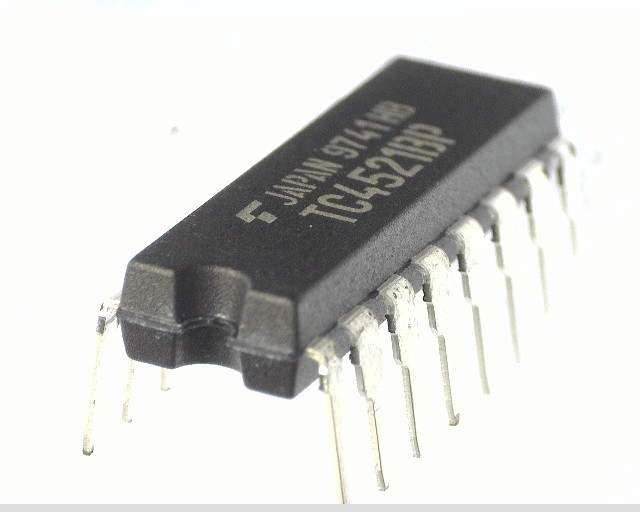

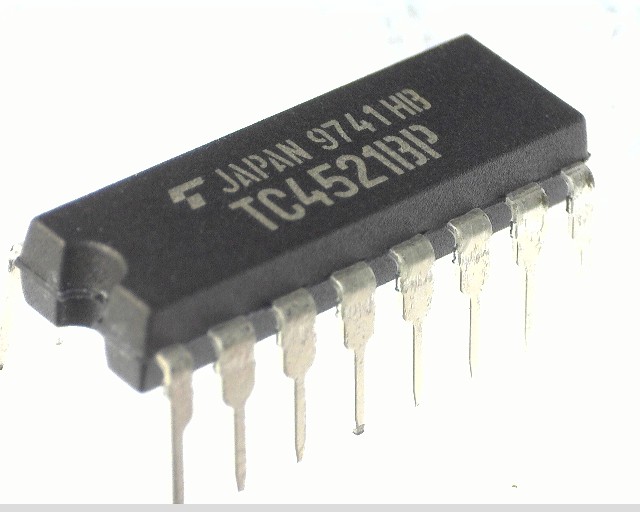

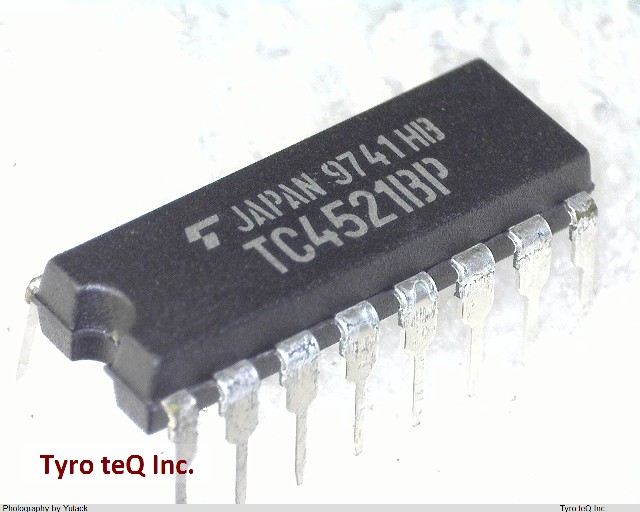

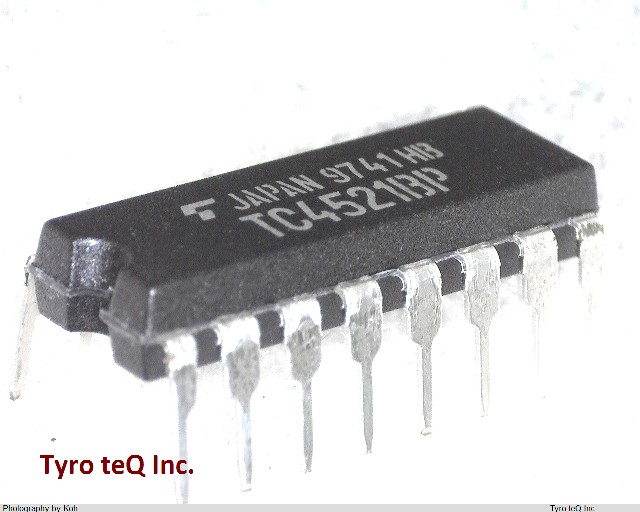

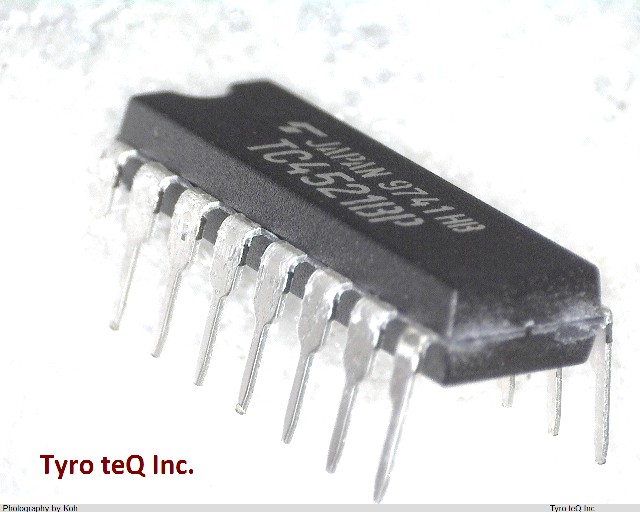

TC4521BP データシート

Name: TC4521BP
Brand: TOSHIBA
SKU: 300000798-0000-0000-0000

TC4521BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

1回路周波数分周器 | 16ピン

TC4521BP の詳細情報

型番	TC4521BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Count Direction	UP
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	3000000 Hz
Max I(ol)	0.00061 Amp
Mode of Operation	ASYNCHRONOUS
Number of Bits	24
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Propagation Delay (tpd)	12000 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
Width	7.62 mm
fmax-Min	23.5 MHz
