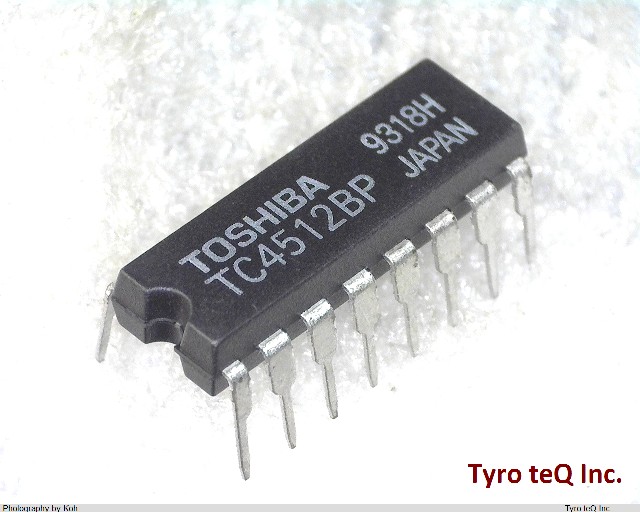

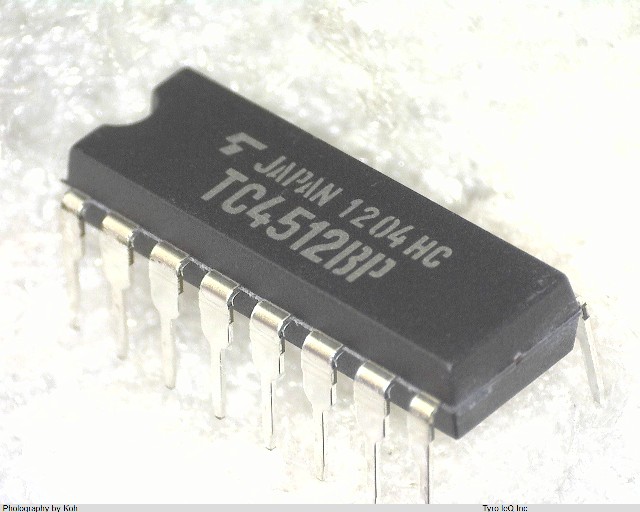

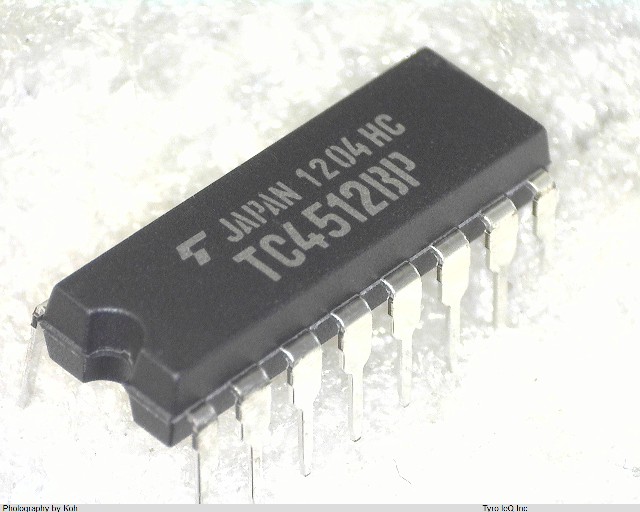

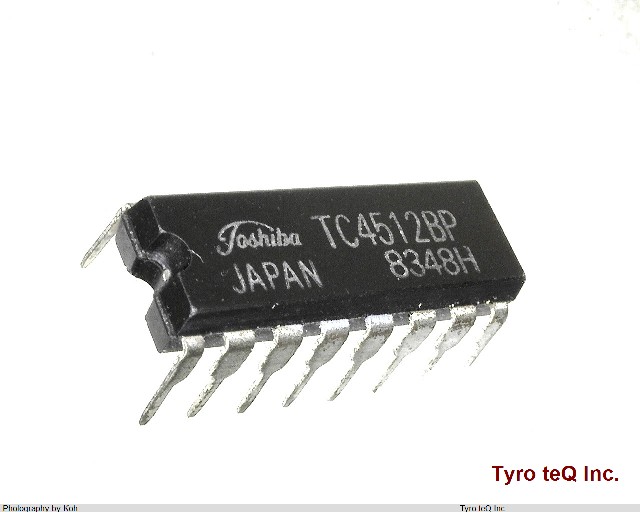

TC4512BP データシート

Name: TC4512BP
Brand: TOSHIBA
SKU: 300000797-0000-0000-0000

TC4512BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

1回路 8チャンネルデータセレクタ | 16ピン

TC4512BP の詳細情報

型番	TC4512BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MULTIPLEXER
Max I(ol)	0.00061 Amp
Number of Functions	1
Number of Inputs	8
Number of Outputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	400 ns
Propagation Delay (tpd)	360 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Multiplexer/Demultiplexers
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
