TC4508BP データシート

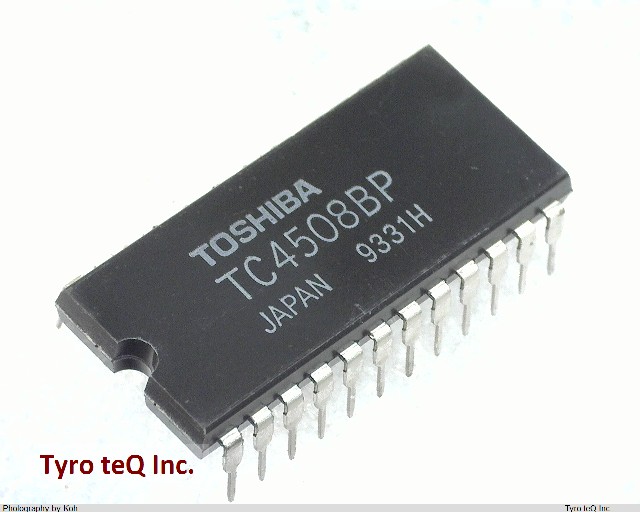

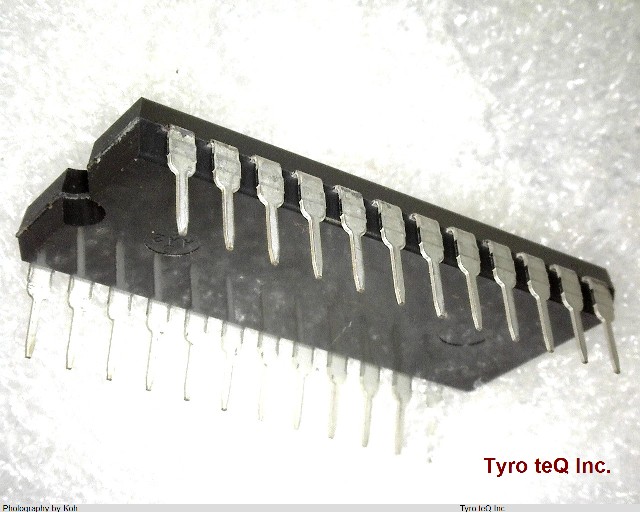

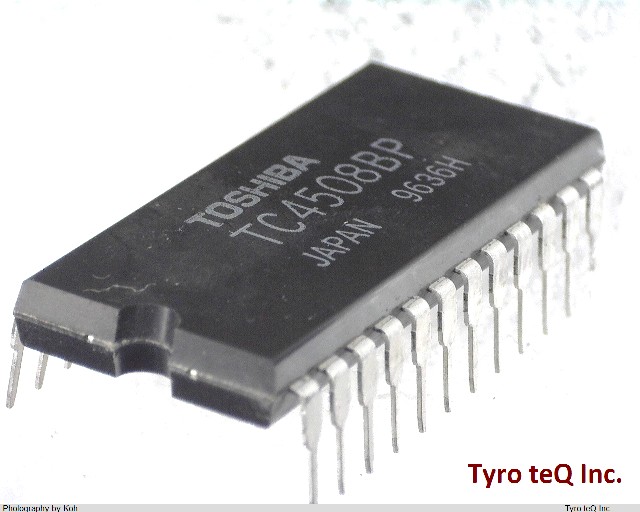

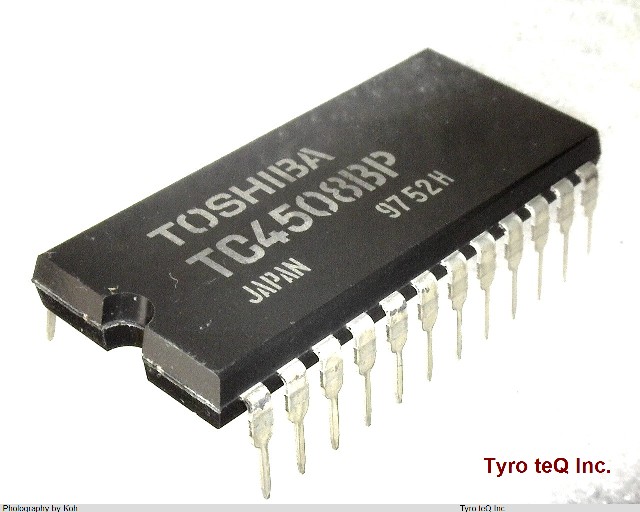

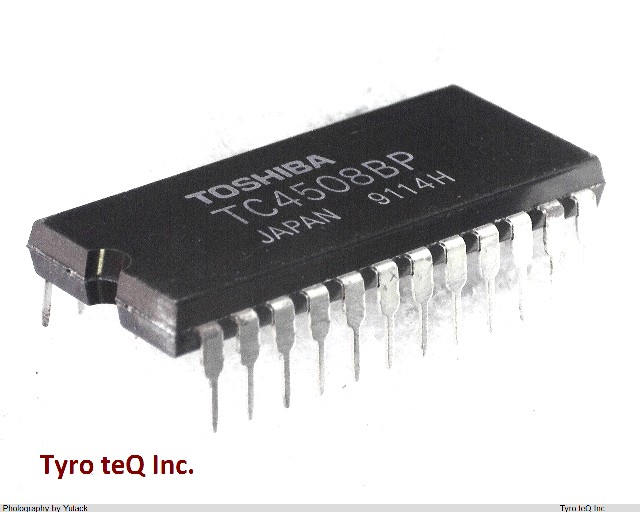

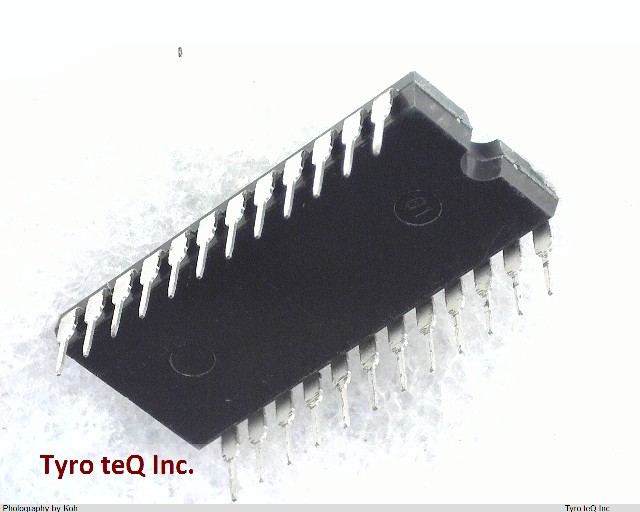

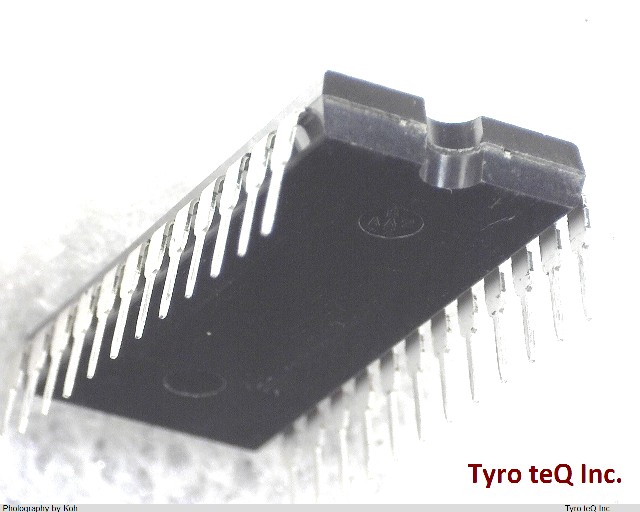

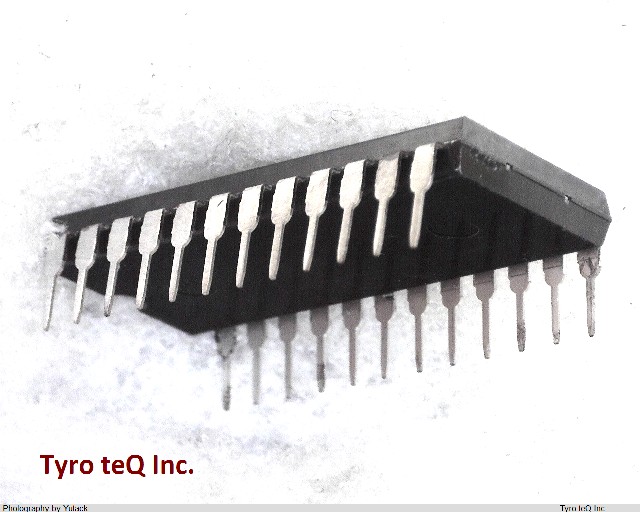

Name: TC4508BP
Brand: TOSHIBA
SKU: 300017294-0000-0000-0000

TC4508BP - TOSHIBA の商品詳細ページです。

249時間21分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

TC4508BP の詳細情報

型番	TC4508BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	WITH CLEAR; IOH = 1.7MA @ VOH = 2.5V
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	360 ns
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
