TC4503BP データシート

Name: TC4503BP
Brand: TOSHIBA
SKU: 300007527-0000-0000-0000

TC4503BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

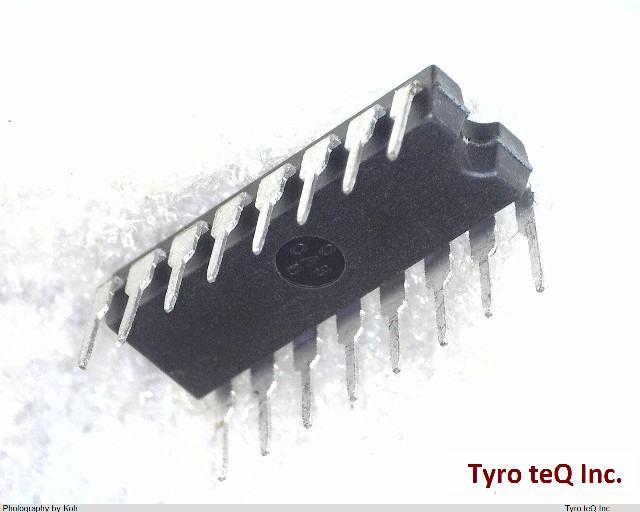

Hex Buffer | 16ピン

TC4503BP の詳細情報

型番	TC4503BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	ONE FUNCTION WITH TWO BITS; IOH = 3.4MA @ VOH = 2.5V
Control Type	ENABLE LOW
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.0025 Amp
Number of Bits	6
Number of Functions	1
Number of Ports	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	150 ns
Propagation Delay (tpd)	110 ns
Qualification Status	Not Qualified
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
