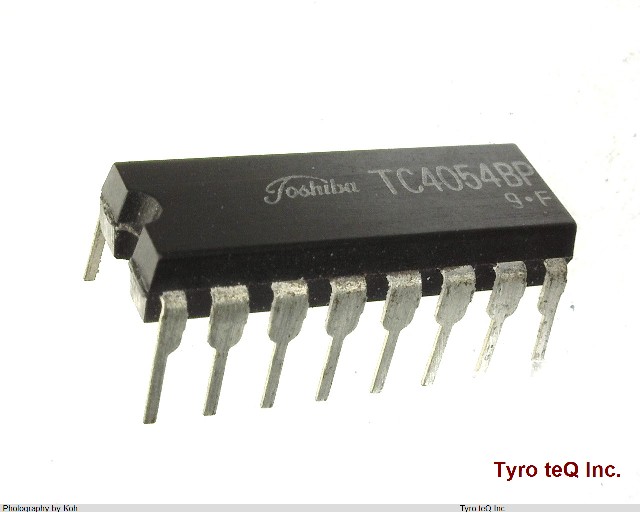

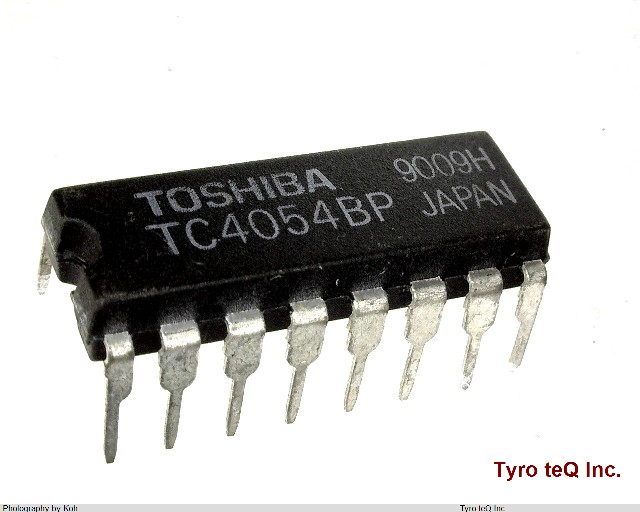

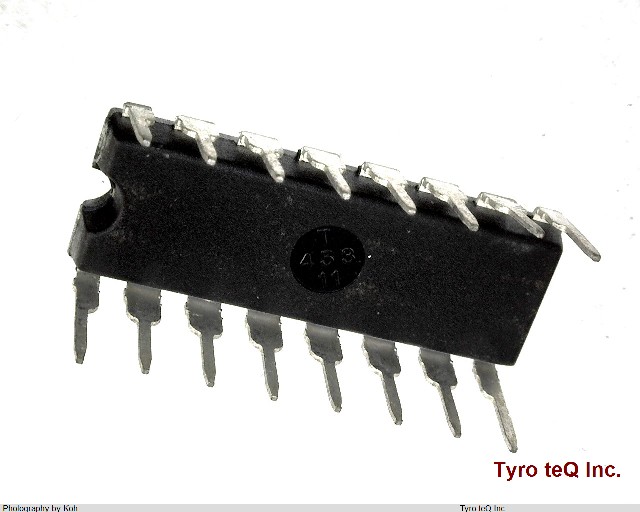

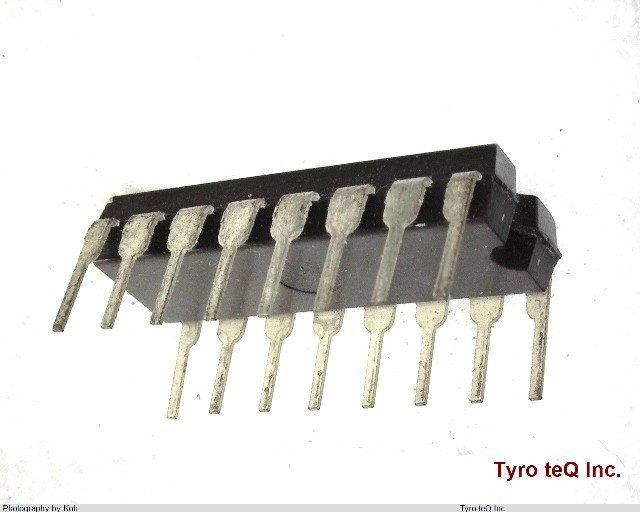

TC4054BP データシート

Name: TC4054BP
Brand: TOSHIBA
SKU: 300017108-0000-0000-0000

TC4054BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

TC4054BP の詳細情報

型番	TC4054BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	ADDITIONAL SUPPLY VEE TO LOWER VOL; 4 STROBES FOR 4 INPUTS
Data Input Mode	PARALLEL
Display Mode	DOT MATRIX
Input Characteristics	STANDARD
Interface IC Type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Multiplexed Display Capability	NO
Number of Backplanes	0-BP
Number of Functions	1
Number of Segments	4
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Polarity	CONFIGURABLE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Other Interface ICs
Supply Current-Max	0.6 mA
Supply Voltage-Max	18 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
