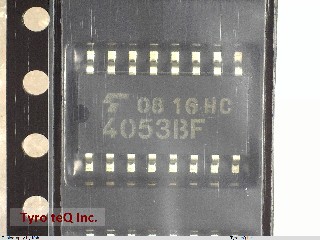

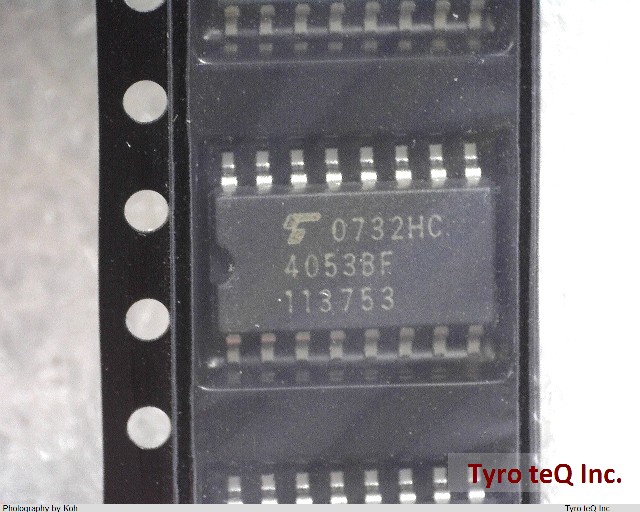

TC4053BF(EL,N,F)

Name: TC4053BF(EL,N,F)
Brand: TOSHIBA
SKU: 300276990-0000-0000-0000

TC4053BF(EL,N,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

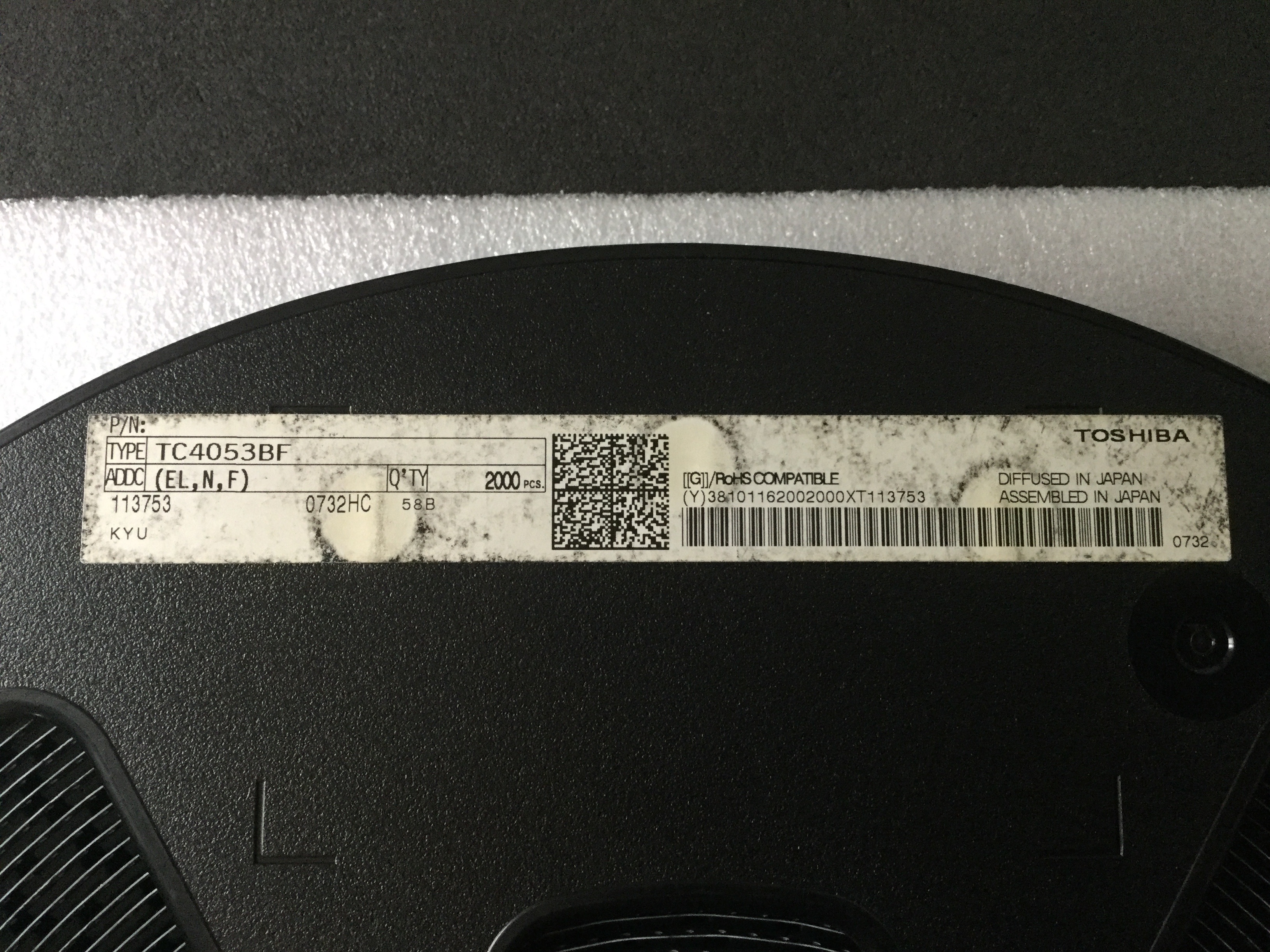

EL:エンボスリール左巻 N:受光チップ姫路工場生産 F:RoHS品|3回路2chアナログ・マルチプレクサ/デマルチプレクサ（アナログスイッチ） | 16ピン

TC4053BF(EL,N,F) の詳細情報

型番	TC4053BF(EL,N,F)
メーカー	TOSHIBA
種別	CMOSロジックIC
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDSO-G16
Length	10.3 mm
Number of Channels	2
Number of Functions	3
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	950 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	450 ns
Switch-on Time-Max	380 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.3 mm
