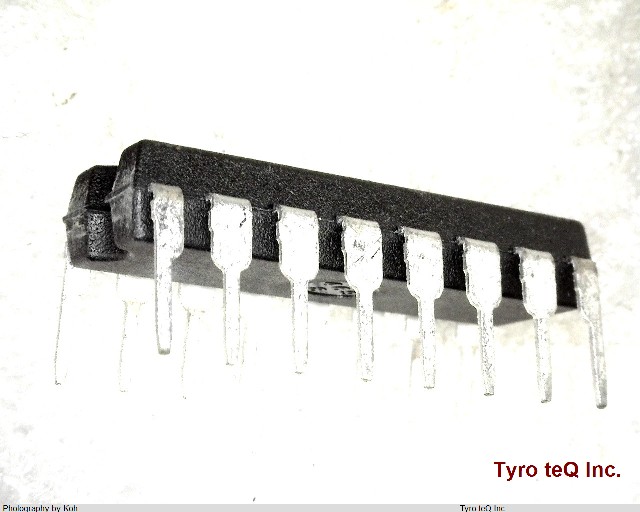

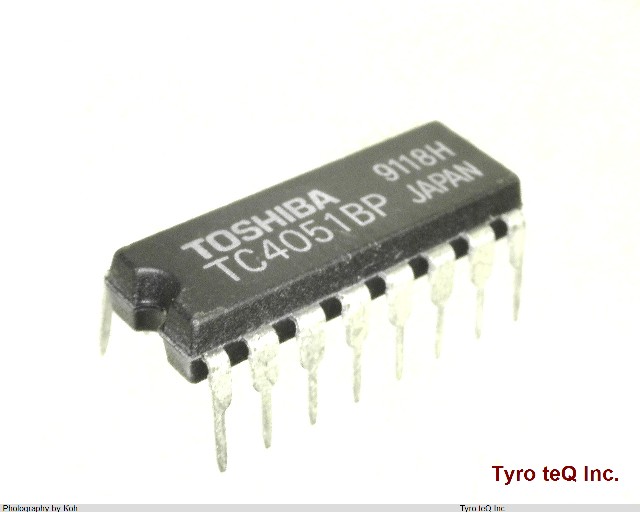

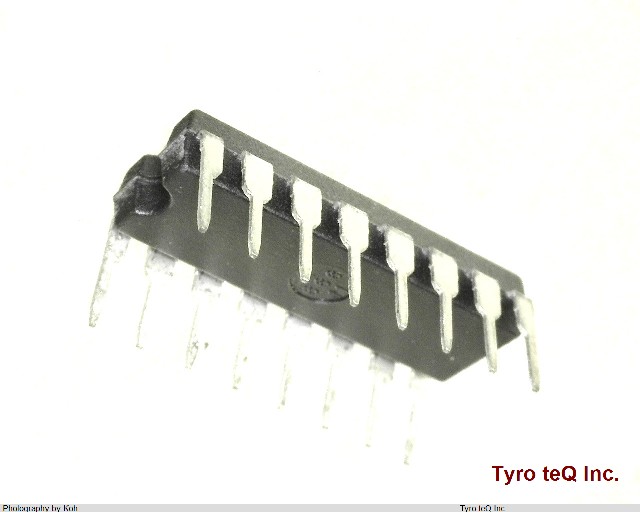

TC4051BP データシート

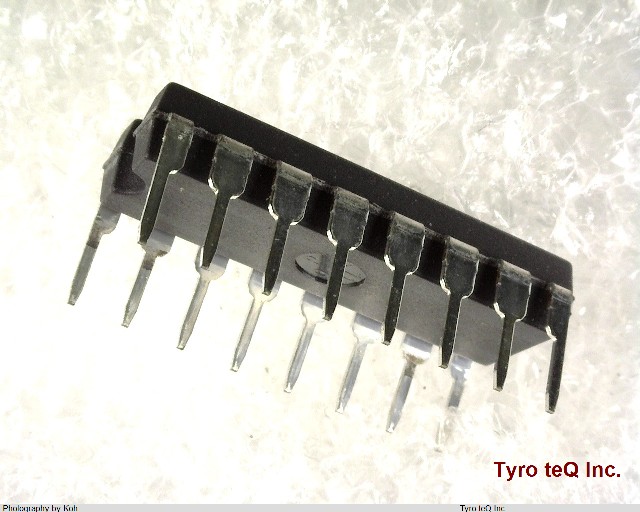

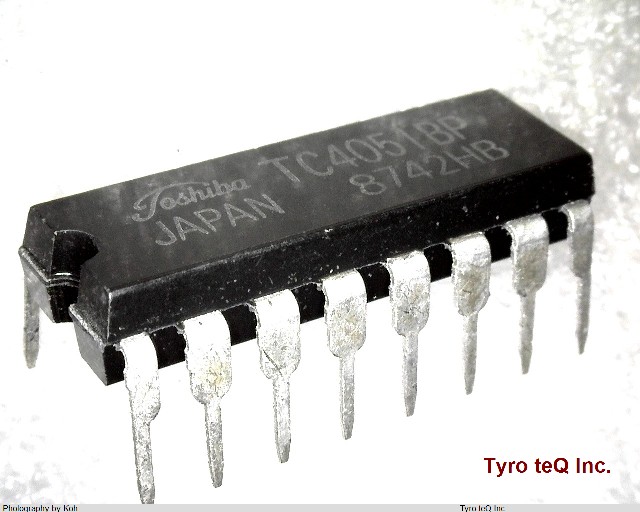

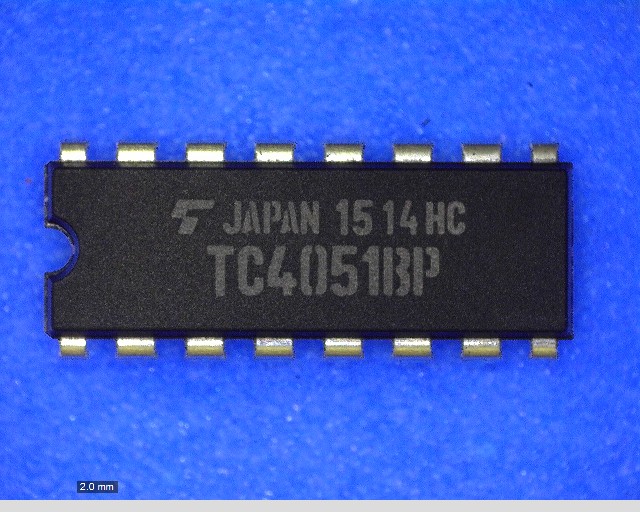

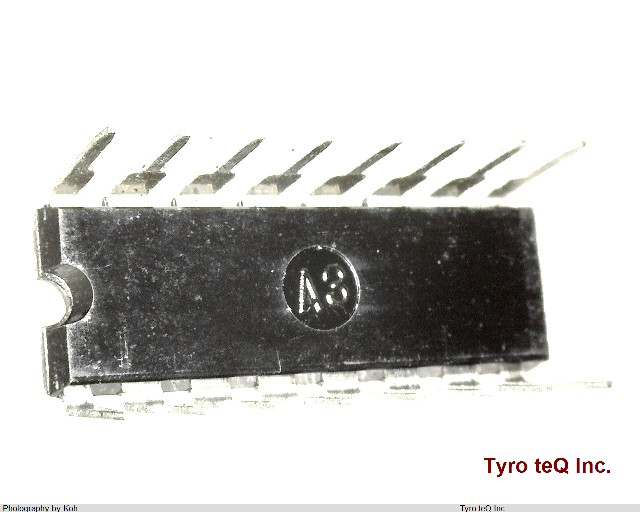

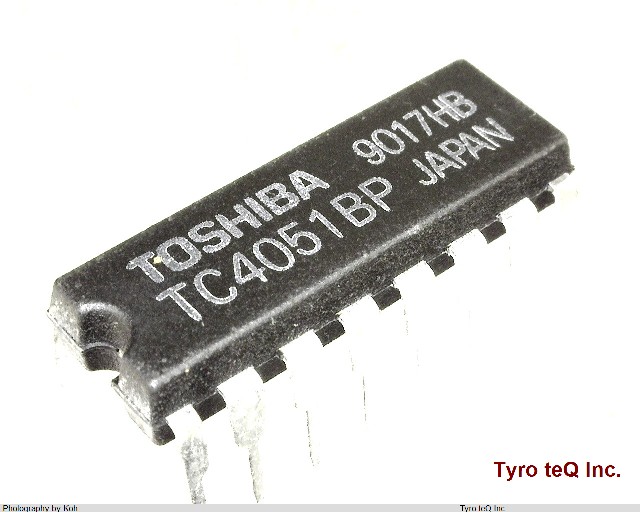

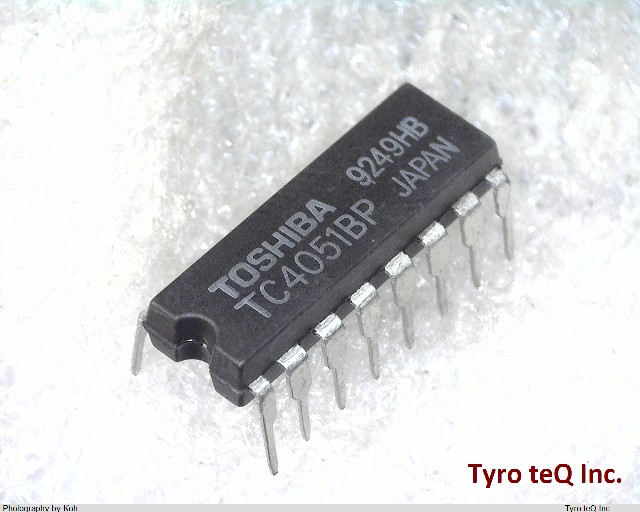

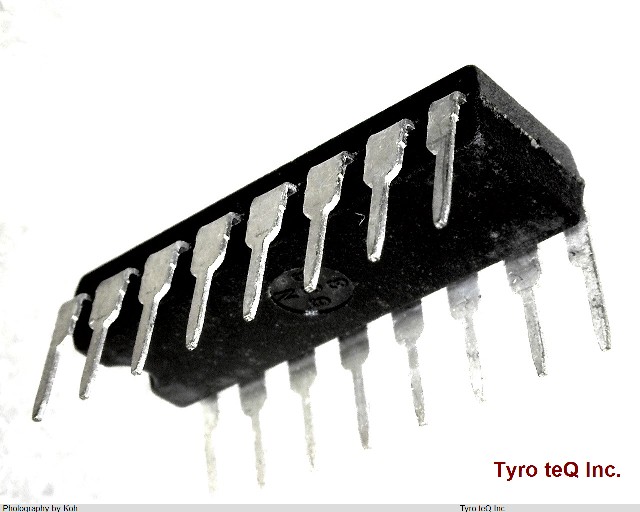

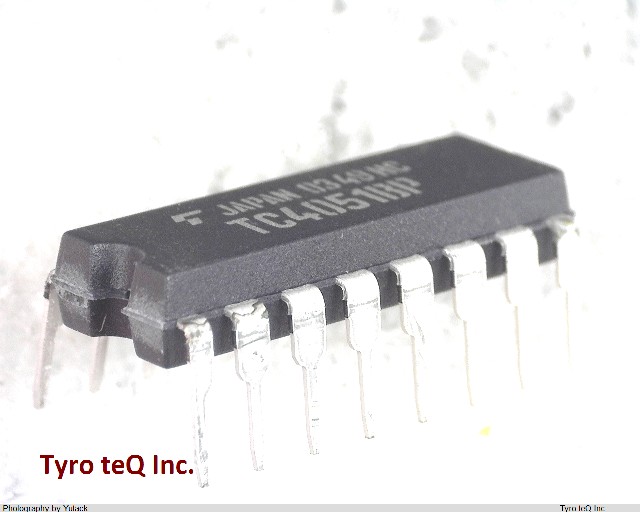

Name: TC4051BP
Brand: TOSHIBA
SKU: 300000212-0000-0000-0000

TC4051BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

8chアナログ・マルチプレクサ/デマルチプレクサ（アナログスイッチ） | 16ピン

TC4051BP の詳細情報

型番	TC4051BP
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
IBIS
IO (Min)(mA)
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Number of Channels	8
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	950 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.6 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	450 ns
Switch-on Time-Max	380 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	18
VCC (Min)(V)	3
Width	7.62 mm
tpd_tpz (Typ.)(nsec)
グループ	TC
ピン数	16
回路数	1
機能1	Multiplexer
機能2	8-Channel Analog Multiplexer
面実装区分	N
