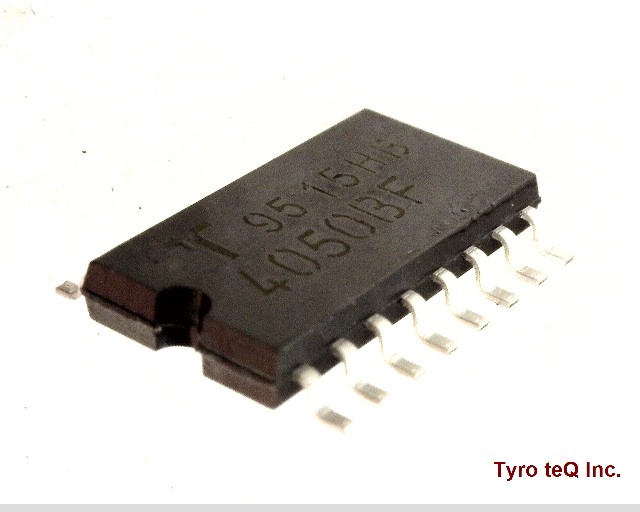

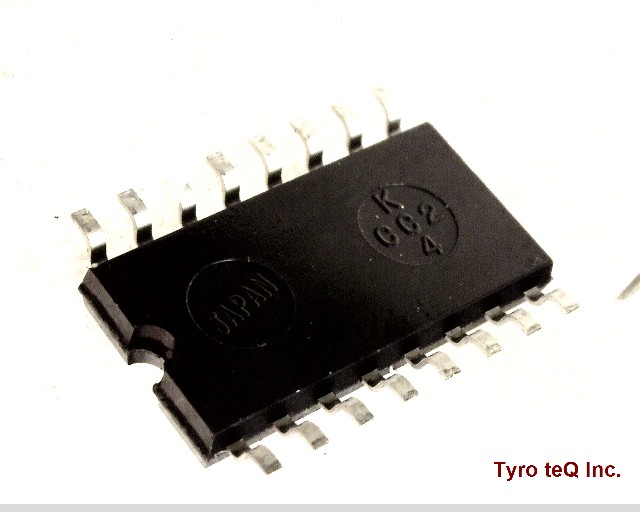

TC4050BF データシート

Name: TC4050BF
Brand: TOSHIBA
SKU: 300017092-0000-0000-0000

TC4050BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

6回路Buffer | 16ピン

TC4050BF の詳細情報

型番	TC4050BF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	IOH = 1.9MA @ VOH = 2.5V; IOL = 2.9MA @ VOL = 0.4V; WITH EXTENDED INPUT VOLTAGE
Family	4000/14000/40000
IBIS
IO (Min)(mA)	3.2
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUFFER
Max I(ol)	0.0038 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	130 ns
Propagation Delay (tpd)	70 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.75 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	18
VCC (Min)(V)	3
Width	3.9 mm
tpd_tpz (Typ.)(nsec)
グループ	TC
ピン数	16
回路数	6
機能1	Gate
機能2	Non-Inverter Buffer
面実装区分	Y
