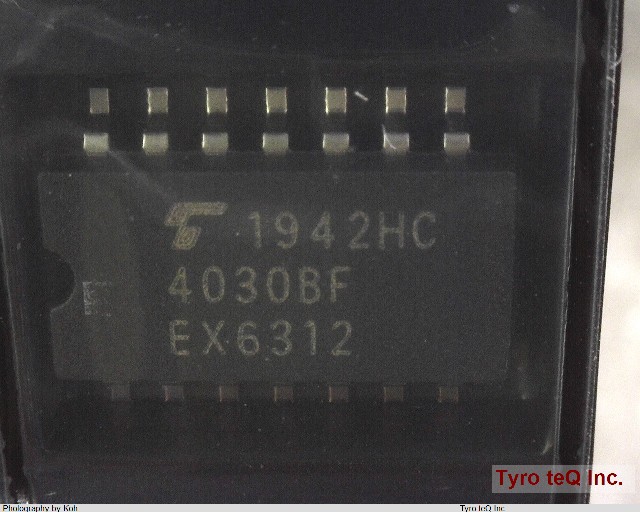

TC4030BF データシート

Name: TC4030BF
Brand: TOSHIBA
SKU: 300017074-0000-0000-0000

TC4030BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

4回路2入力ExORゲート | 14ピン

TC4030BF の詳細情報

型番	TC4030BF
メーカー	TOSHIBA
カテゴリ	その他-汎用IC
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Family	4000/14000/40000
IBIS
IO (Min)(mA)	0.51
JESD-30 Code	R-PDSO-G14
Length	8.65 mm
Load Capacitance (CL)	50 pF
Logic IC Type	XOR GATE
Max I(ol)	0.00061 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/15 V
Prop. Delay@Nom-Sup	280 ns
Propagation Delay (tpd)	280 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.75 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
VCC (Max)(V)	18
VCC (Min)(V)	3
Width	3.9 mm
tpd_tpz (Typ.)(nsec)
グループ	TC
ピン数	14
回路数	4
機能1	Gate
機能2	Exclusive-OR
面実装区分	Y
