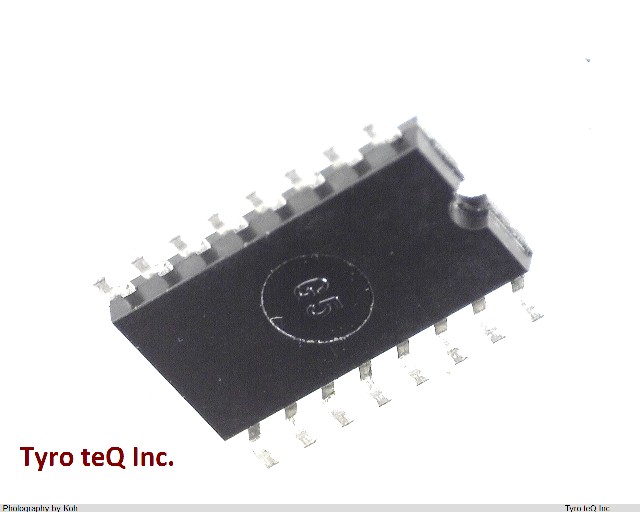

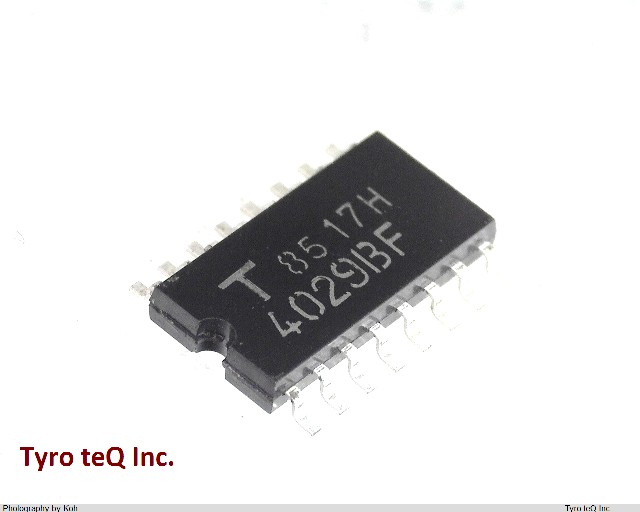

TC4029BF データシート

Name: TC4029BF
Brand: TOSHIBA
SKU: 300384911-0000-0000-0000

TC4029BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

Binary or BCD-Decadeカウンタ | 16ピン

TC4029BF の詳細情報

型番	TC4029BF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	BINARY/BCD COUNT OPTION; TCO OUTPUT; COUNT ENABLE INPUT
Count Direction	BIDIRECTIONAL
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Mode of Operation	SYNCHRONOUS
Number of Bits	4
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	470 ns
Qualification Status	Not Qualified
Seated Height-Max	1.9 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	5.3 mm
fmax-Min	2 MHz
