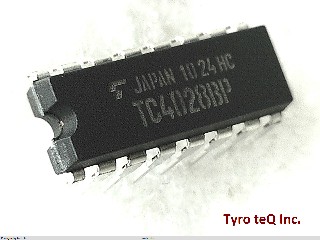

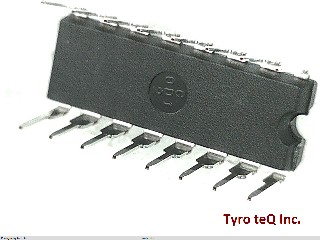

TC4028BP(N,F) データシート

Name: TC4028BP(N,F)
Brand: TOSHIBA
SKU: 300309964-0000-0000-0000

TC4028BP(N,F) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

N:受光チップ姫路工場生産 F:RoHS品|BCD-to-Decimal Decoder | 16ピン

TC4028BP(N,F) の詳細情報

型番	TC4028BP(N,F)
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	4000/14000/40000
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
Length	19.25 mm
Logic IC Type	DECIMAL DECODER/DRIVER
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Propagation Delay (tpd)	350 ns
Seated Height-Max	4.45 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
