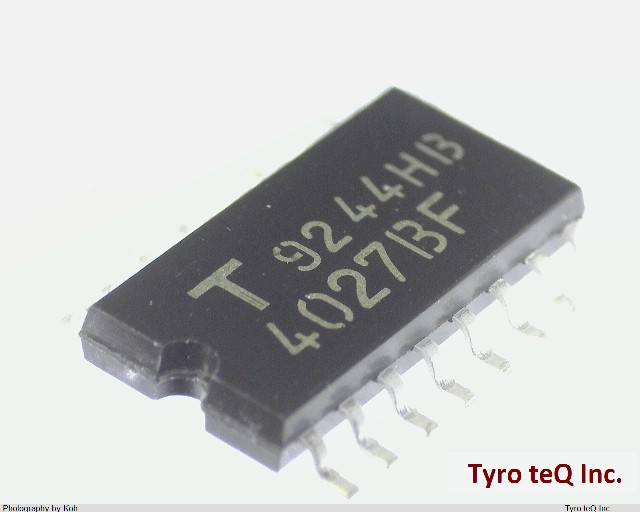

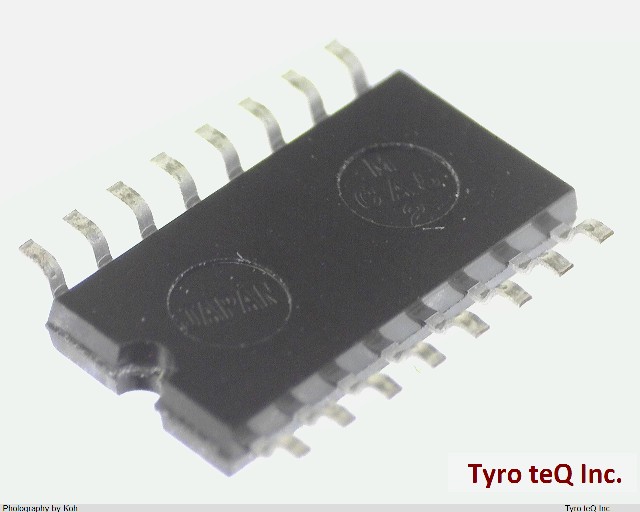

TC4027BF データシート

Name: TC4027BF
Brand: TOSHIBA
SKU: 300017067-0000-0000-0000

TC4027BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

2回路JK-フリップフロップ | 16ピン

TC4027BF の詳細情報

型番	TC4027BF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G16
Length	9.9 mm
Load Capacitance (CL)	50 pF
Logic IC Type	J-K FLIP-FLOP
Max Frequency@Nom-Sup	3500000 Hz
Max I(ol)	0.00061 Amp
Number of Bits	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	300 ns
Propagation Delay (tpd)	300 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	MASTER-SLAVE
Width	3.9 mm
fmax-Min	12 MHz
