TC4024BF データシート

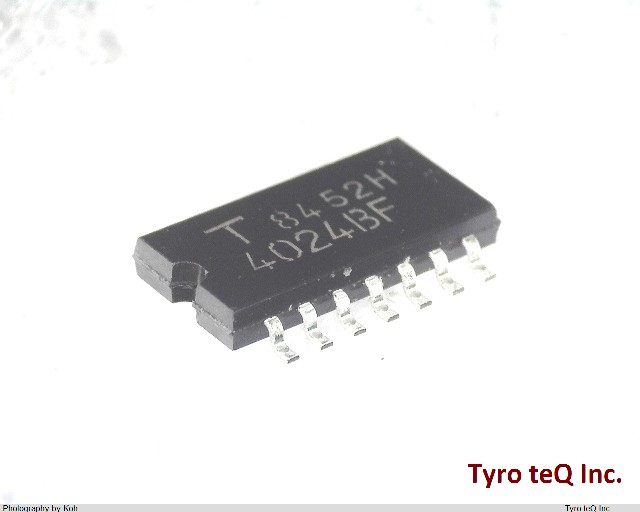

Name: TC4024BF
Brand: TOSHIBA
SKU: 300017064-0000-0000-0000

TC4024BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

7ステージ2進非同期カウンタ | 14ピン

TC4024BF の詳細情報

型番	TC4024BF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	NOT AVAILABLE IN JAPAN
Count Direction	UP
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	BINARY COUNTER
Max Frequency@Nom-Sup	3500000 Hz
Max I(ol)	0.00061 Amp
Mode of Operation	ASYNCHRONOUS
Number of Bits	7
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Propagation Delay (tpd)	1200 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	NEGATIVE EDGE
Width	3.9 mm
fmax-Min	12 MHz
