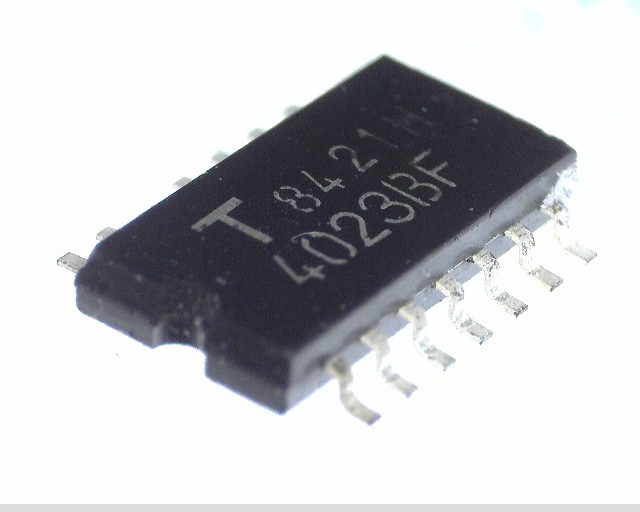

TC4023BF データシート

Name: TC4023BF
Brand: TOSHIBA
SKU: 300007482-0000-0000-0000

TC4023BF - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

3回路NANDゲート | 14ピン

TC4023BF の詳細情報

型番	TC4023BF
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Family	4000/14000/40000
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Number of Functions	3
Number of Inputs	3
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	250 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN COPPER/TIN SILVER
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
