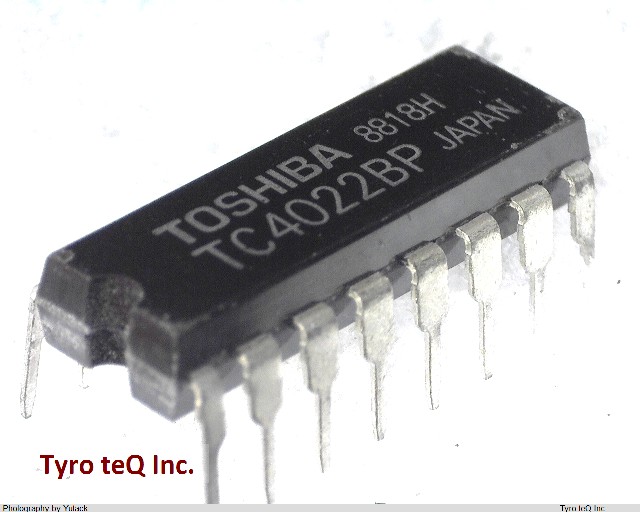

TC4022BP データシート

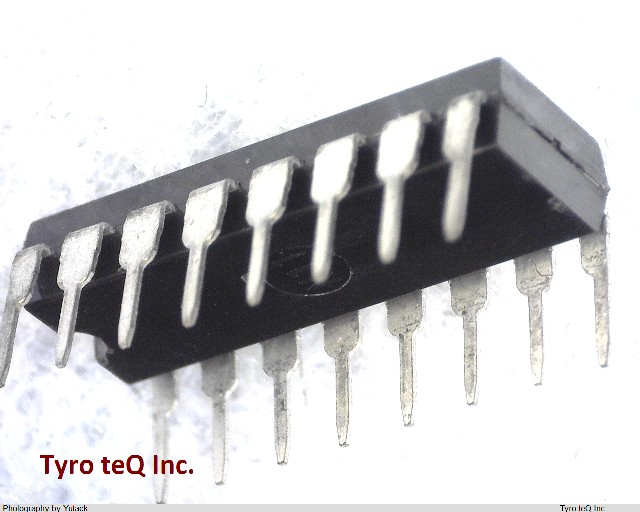

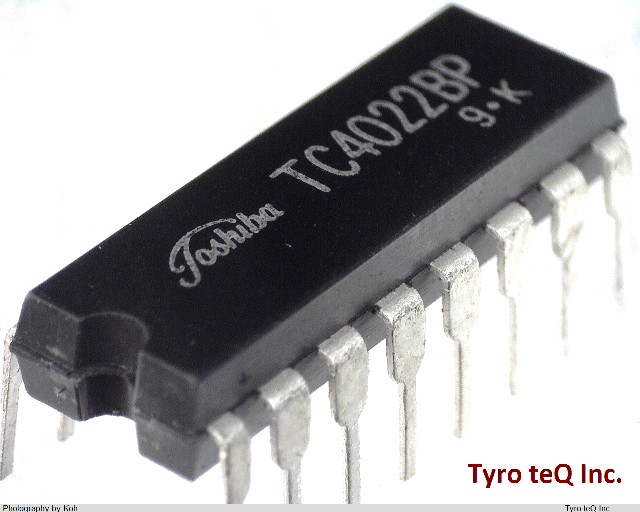

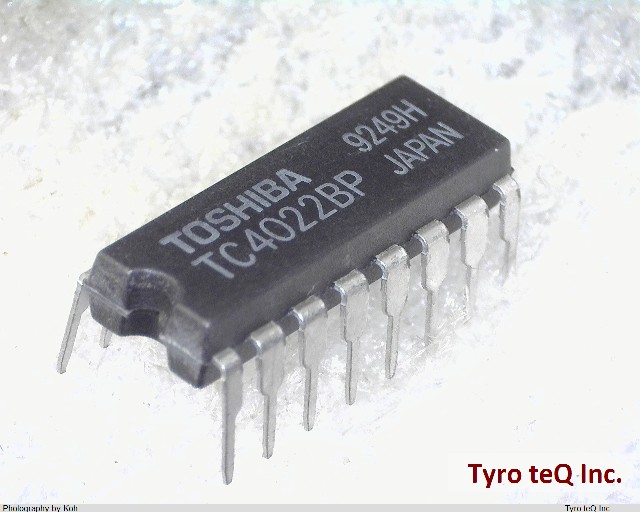

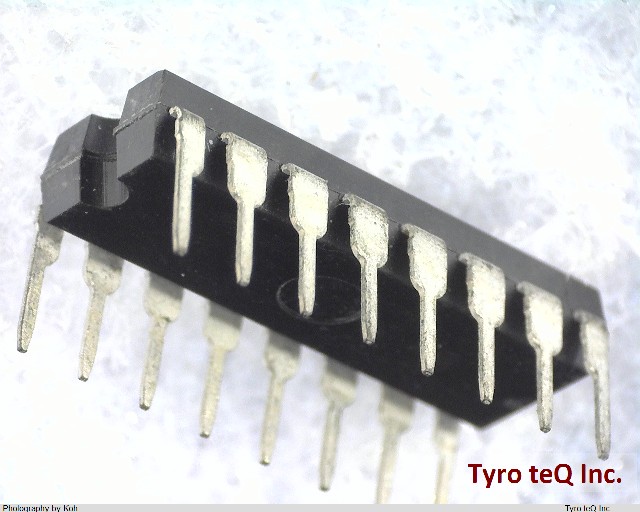

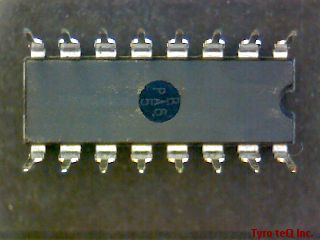

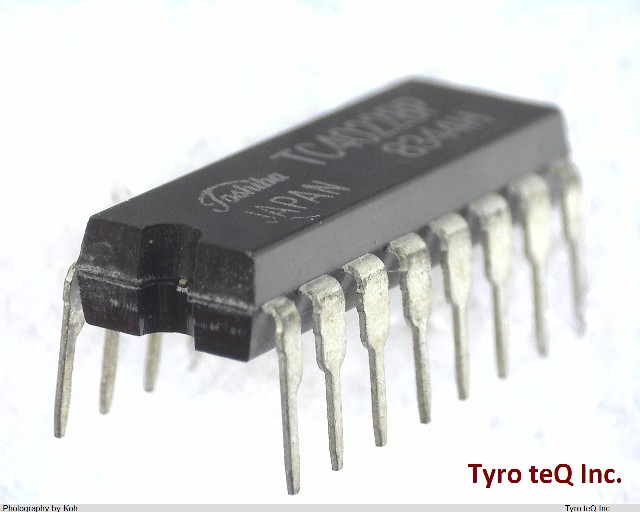

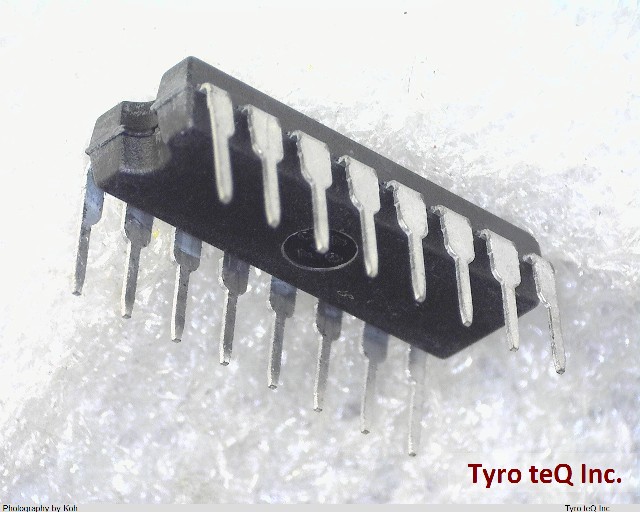

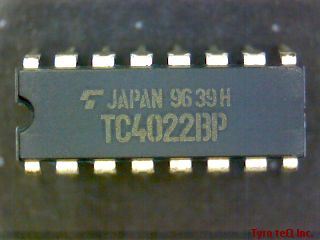

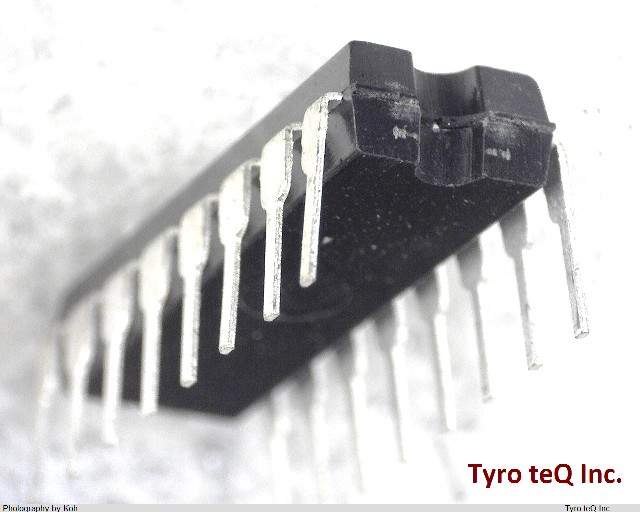

Name: TC4022BP
Brand: TOSHIBA
SKU: 300000544-0000-0000-0000

TC4022BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

Divide-by-8　カウンタ・ドライバ | 16ピン

TC4022BP の詳細情報

型番	TC4022BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	JOHNSON COUNTER WITH 8 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK
Count Direction	UP
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Load Capacitance (CL)	50 pF
Load/Preset Input	NO
Logic IC Type	RING COUNTER
Mode of Operation	SYNCHRONOUS
Number of Bits	8
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	650 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	7.62 mm
fmax-Min	2.5 MHz
