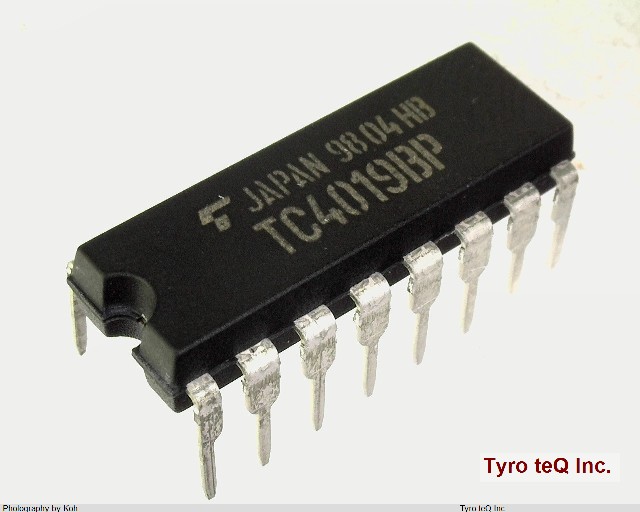

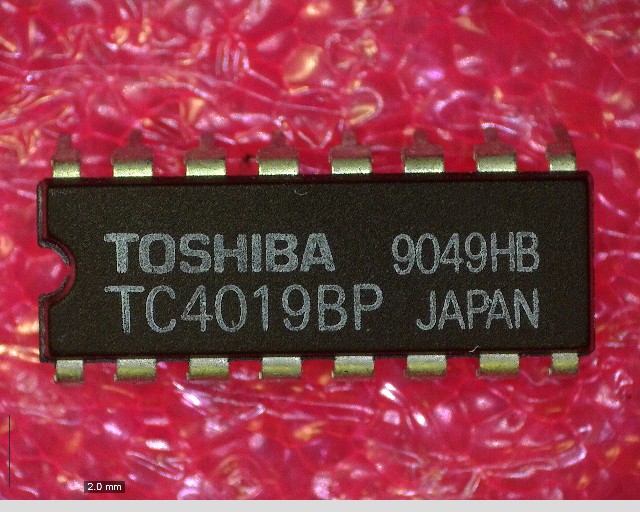

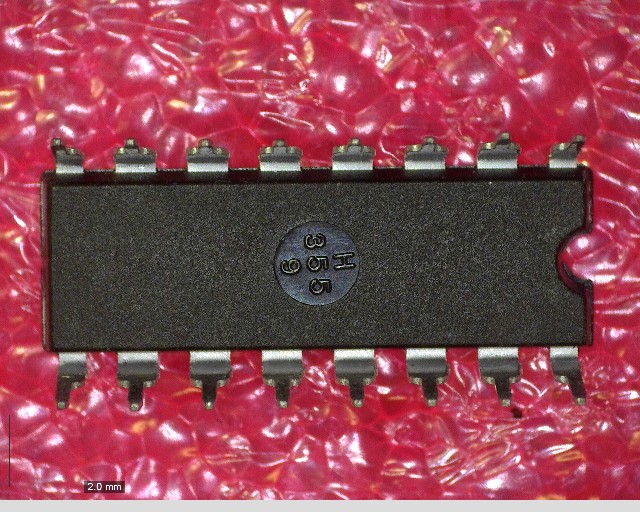

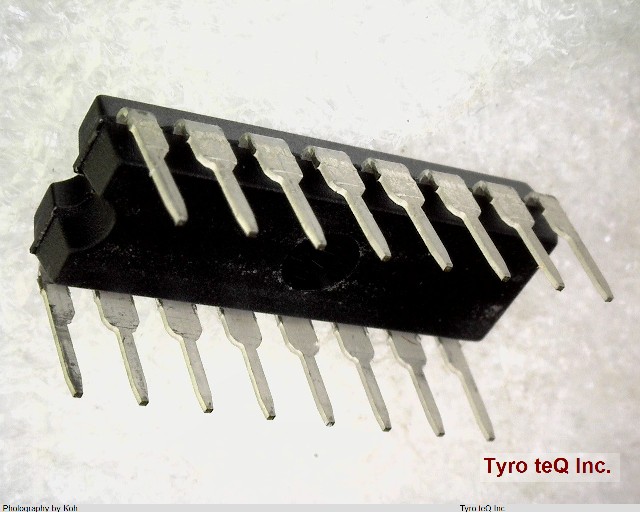

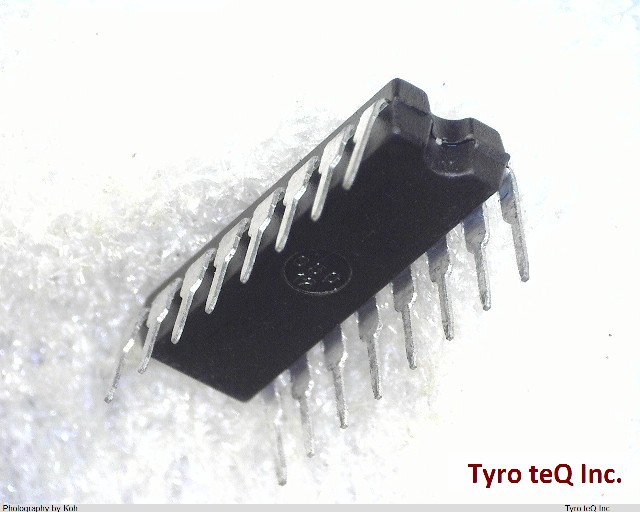

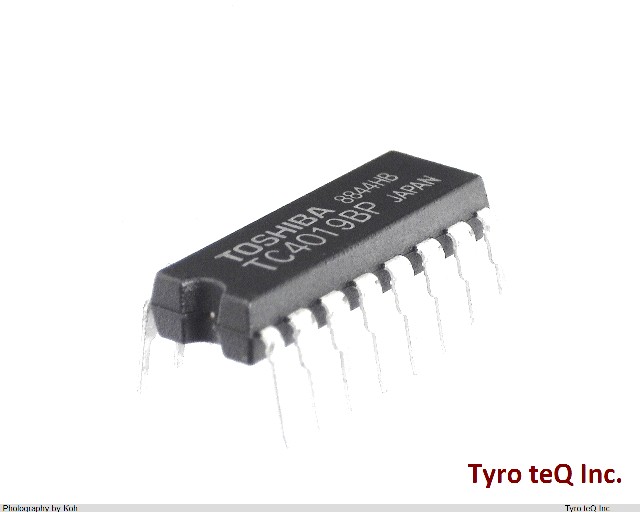

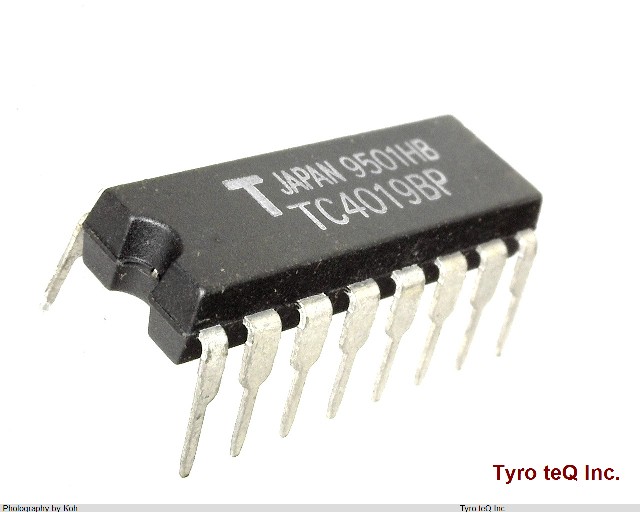

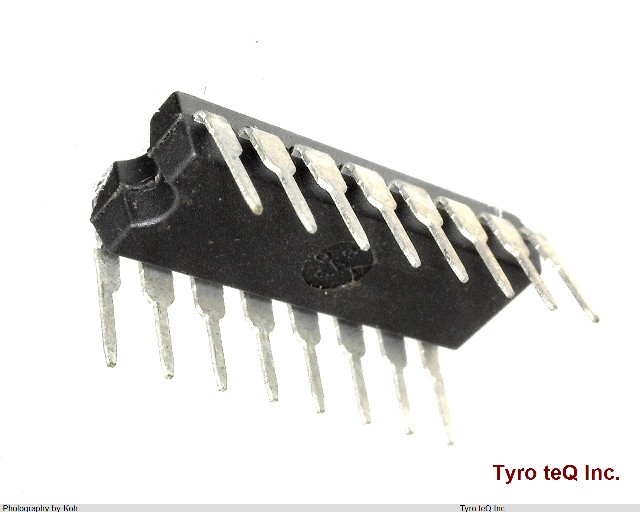

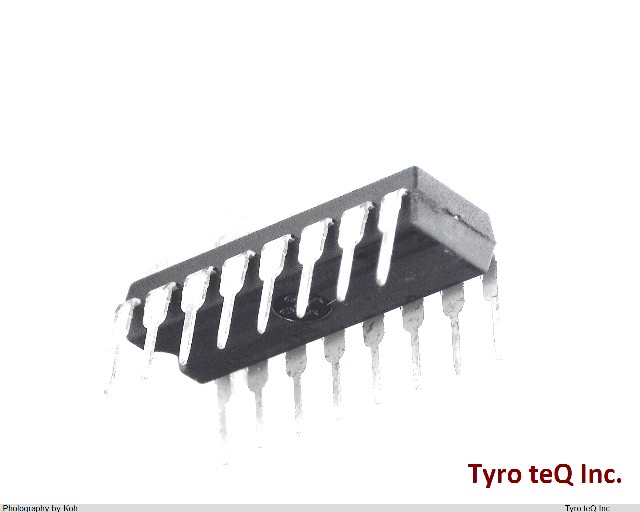

TC4019BP データシート

Name: TC4019BP
Brand: TOSHIBA
SKU: 300000192-0000-0000-0000

TC4019BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

4回路 AND-ORゲート | 16ピン

TC4019BP の詳細情報

型番	TC4019BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	CONFIGURABLE AS QUAD 2:1 MUX
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND-OR GATE
Number of Functions	4
Number of Inputs	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	300 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
