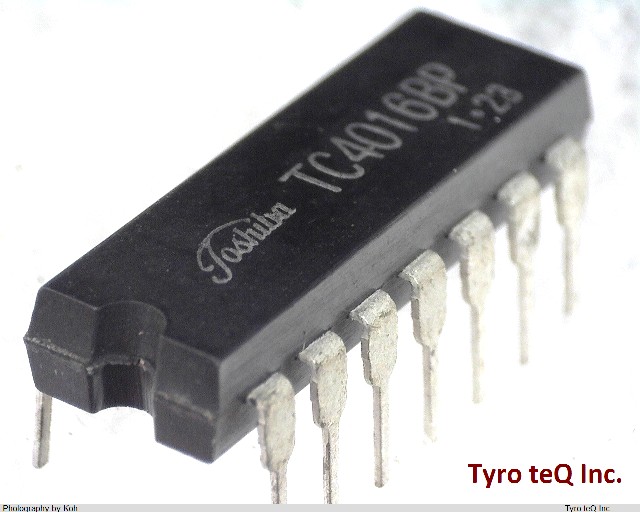

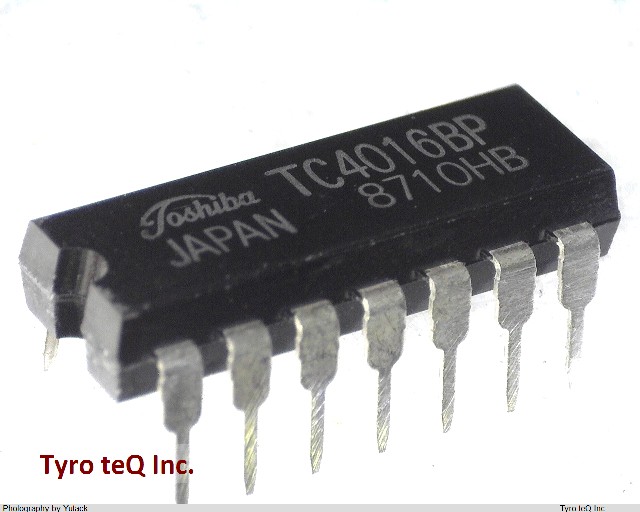

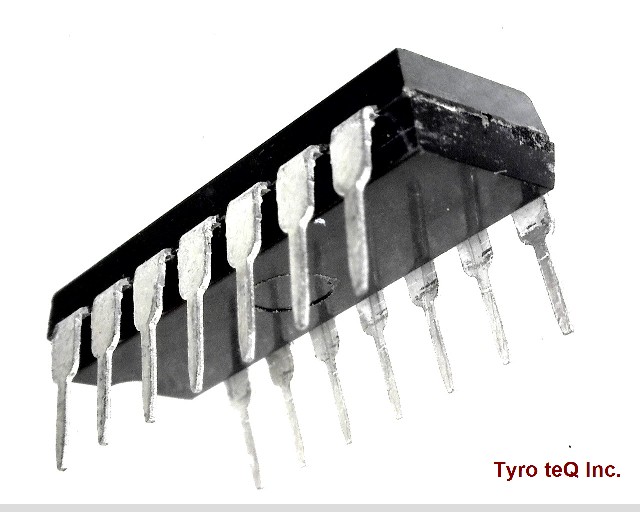

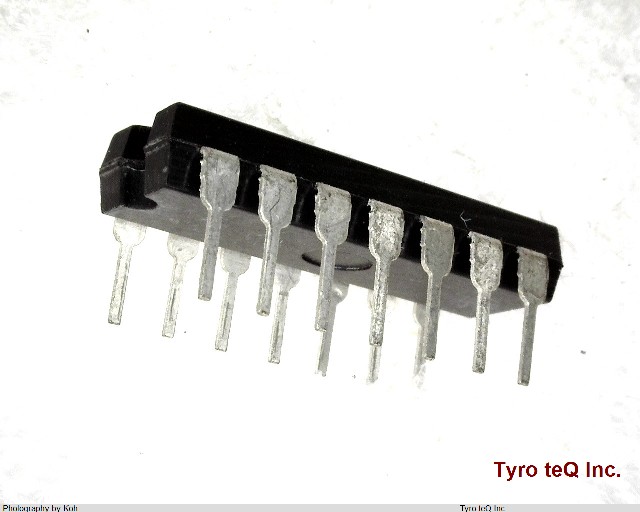

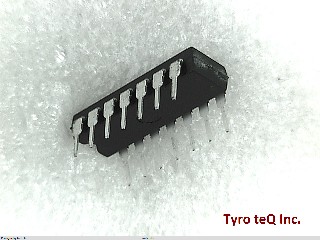

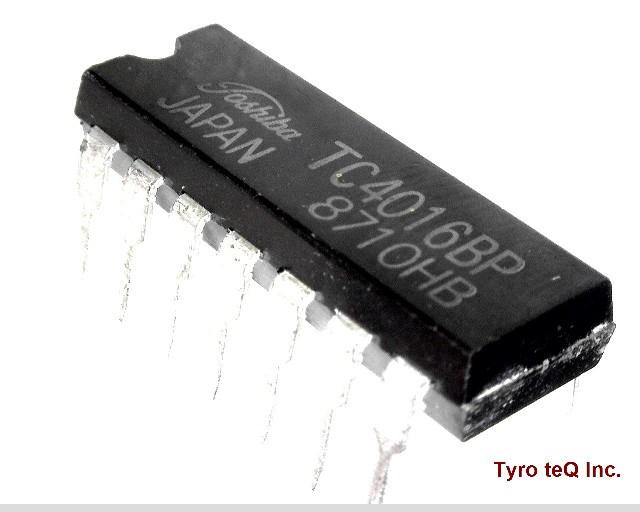

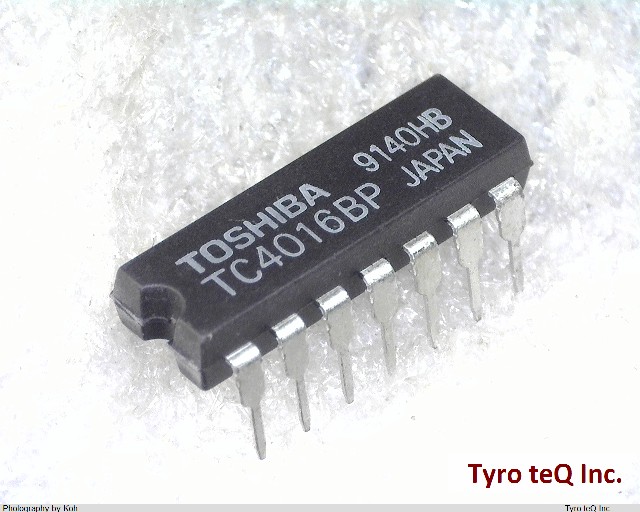

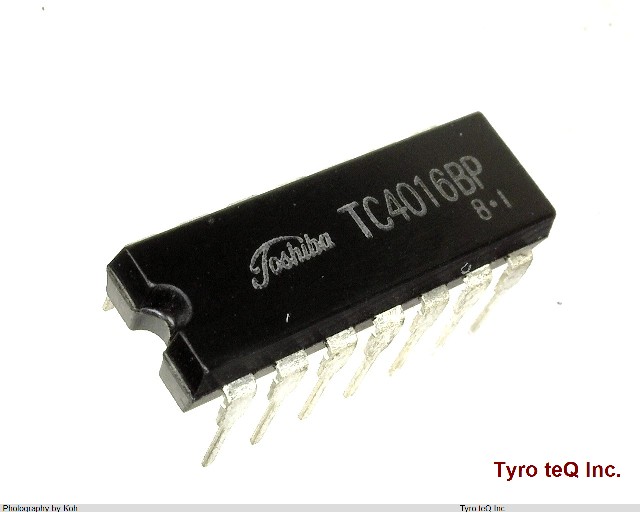

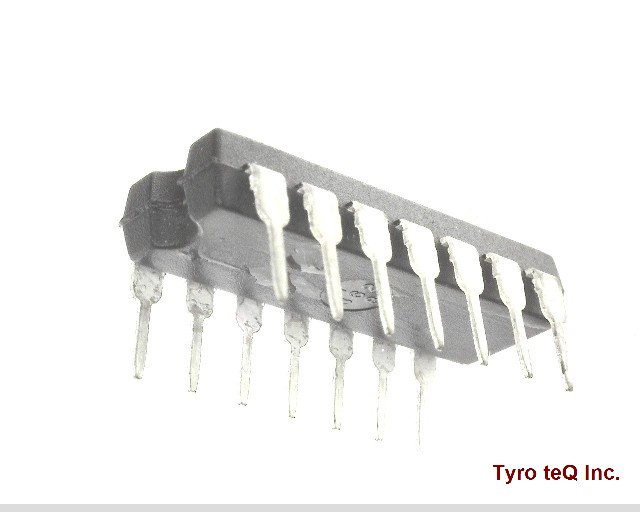

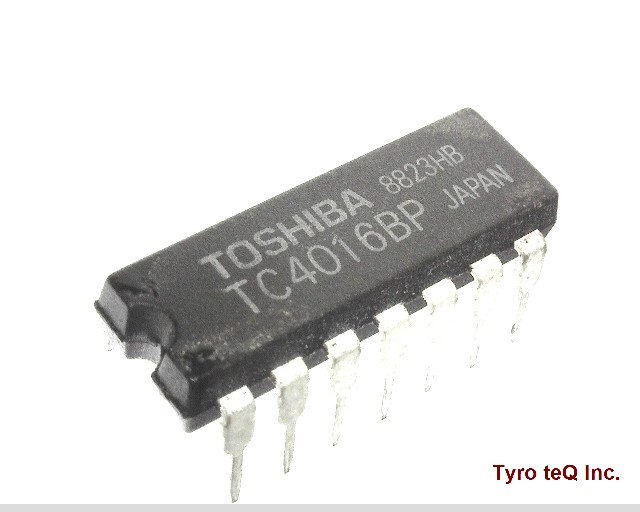

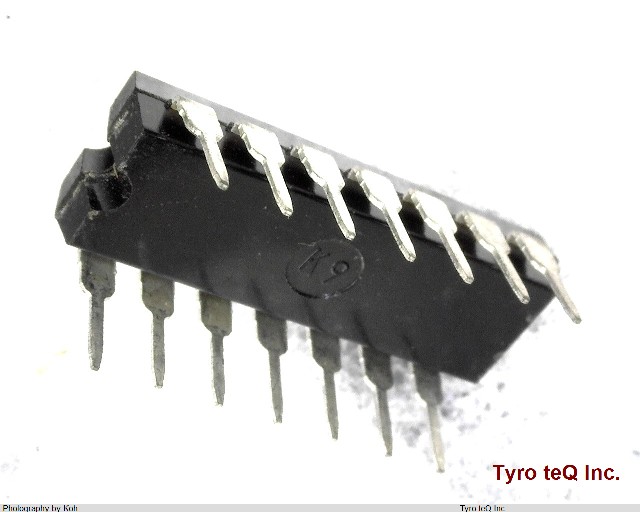

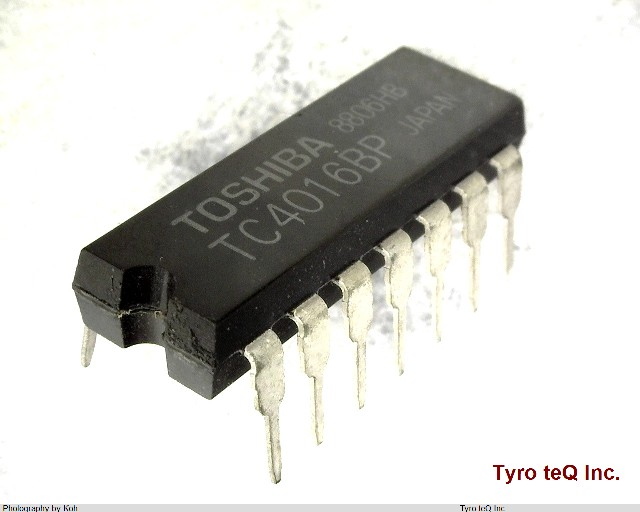

TC4016BP データシート

Name: TC4016BP
Brand: TOSHIBA
SKU: 300007479-0000-0000-0000

TC4016BP - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

4回路 Bilaterial スイッチ | 14ピン

TC4016BP の詳細情報

型番	TC4016BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.25 mm
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	7 ohm
On-state Resistance-Max (Ron)	400 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Supply Current-Max (Isup)	0.03 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	30 ns
Switch-on Time-Max	30 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
