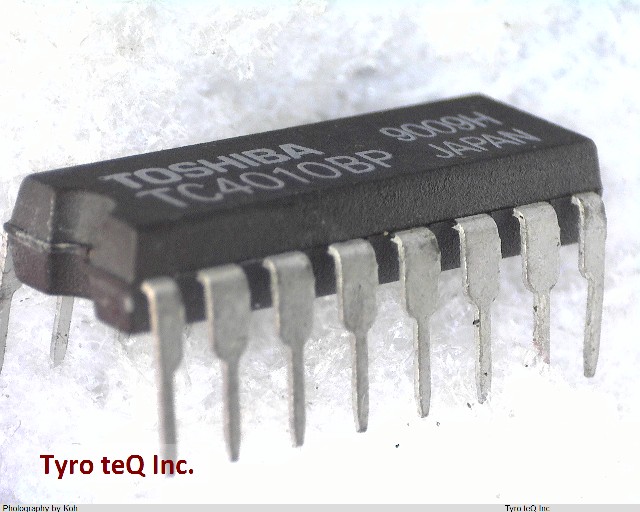

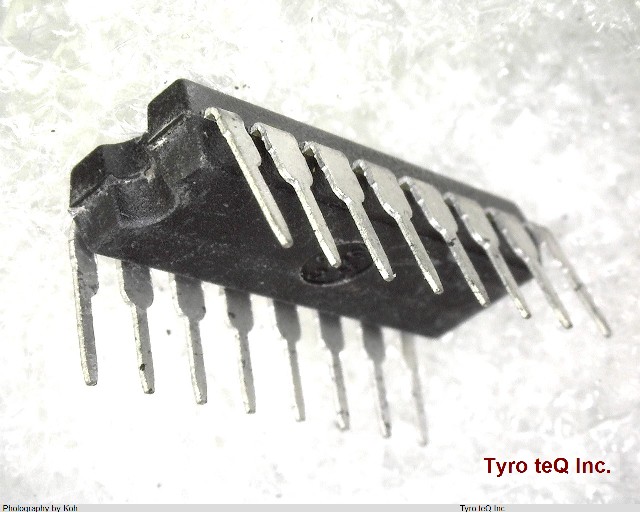

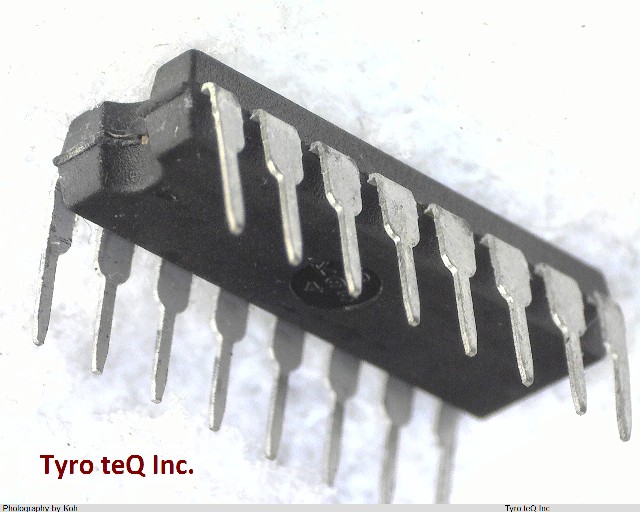

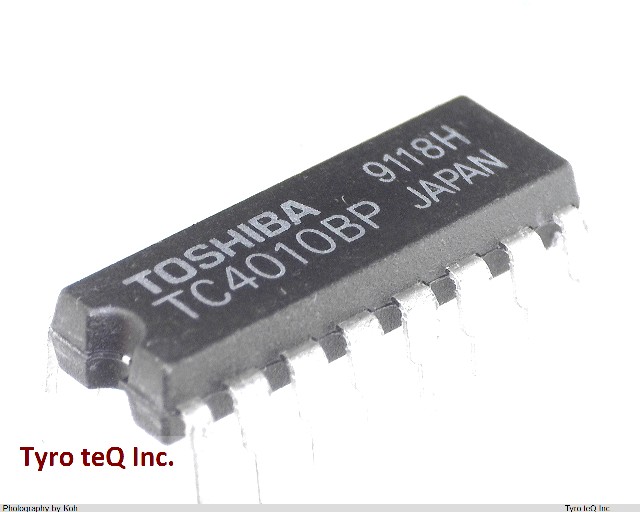

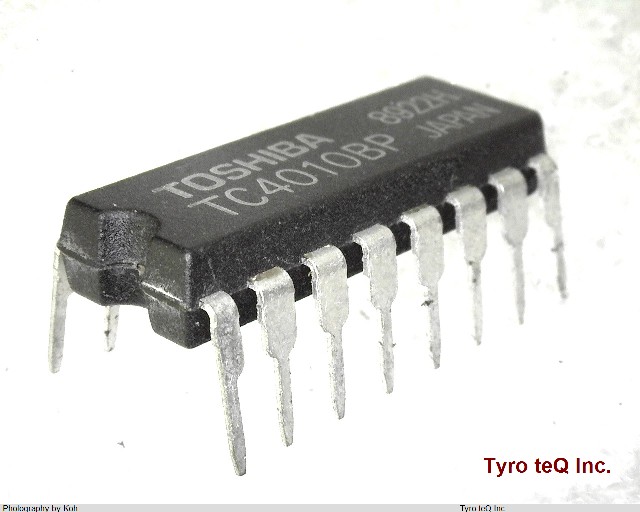

TC4010BP データシート

Name: TC4010BP
Brand: TOSHIBA
SKU: 300000186-0000-0000-0000

TC4010BP - TOSHIBA の商品詳細ページです。

4時間31分後以内に見積もり依頼を頂ければ、
04月26日(金) 9:00 までに見積もり回答いたします。

検討リストに追加する

TC4010BP の詳細情報

型番	TC4010BP
メーカー	TOSHIBA
種別	CMOSロジックIC
データシート
Additional Feature	IOH = 1.9MA @ VOH = 2.5V; IOL = 2.9MA @ VOL = 0.4V; DUAL SUPPLY HIGH TO LOW VOLTAGE TRANSLATOR
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.25 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUFFER
Number of Functions	6
Number of Inputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Propagation Delay (tpd)	130 ns
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
