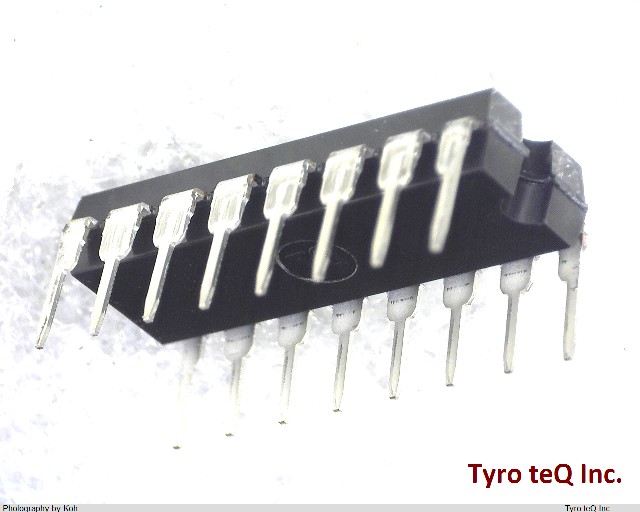

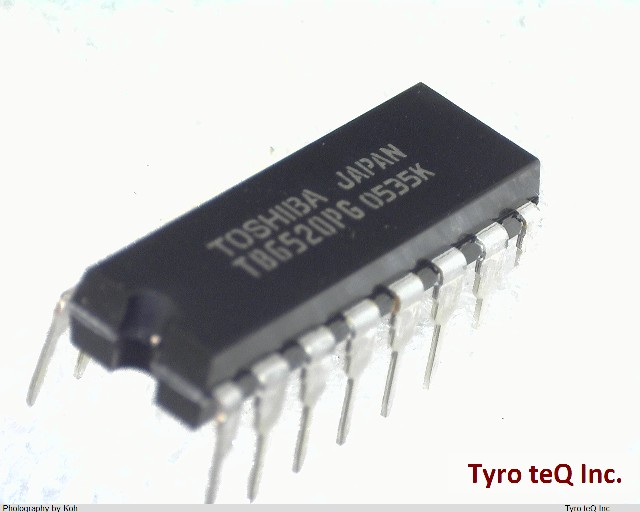

TB6520PG データシート

Name: TB6520PG
Brand: TOSHIBA
SKU: 300305828-0000-0000-0000

TB6520PG - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

汎用リニアIC | モータドライバIC

TB6520PG の詳細情報

型番	TB6520PG
メーカー	TOSHIBA
種別	汎用リニアIC
データシート
Analog IC - Other Type	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code	R-PDIP-T16
Length	19.65 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.45 mm
Sub Category	Motion Control Electronics
Supply Current-Max (Isup)	5 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	OTHER
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
